Harmonic Balancer - Crankshaft Pulley: Service and Repair

REMOVAL
1. Raise vehicle on a hoist and remove right inner splash shield.
2. Remove accessory drive belts.

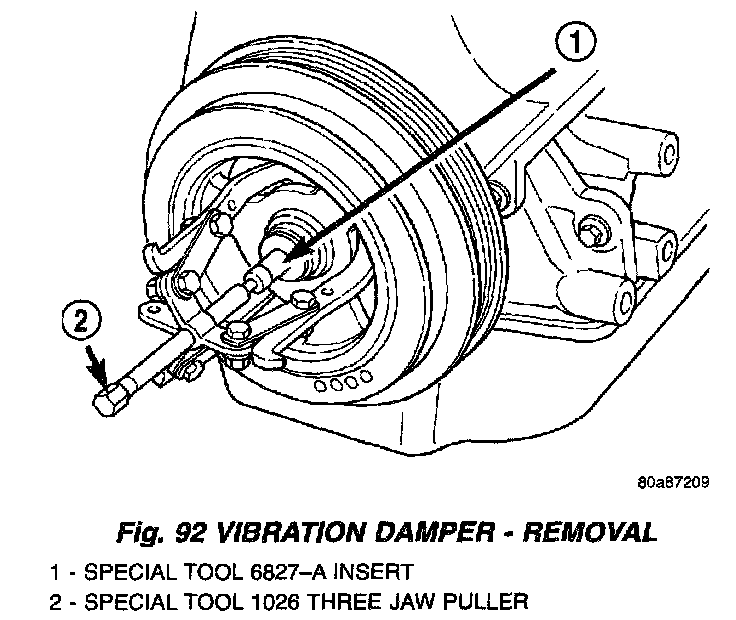

3. Remove crankshaft vibration damper bolt. Remove damper using the large side of Special Tool 1026 and insert 6827-A (Fig. 92).

INSTALLATION

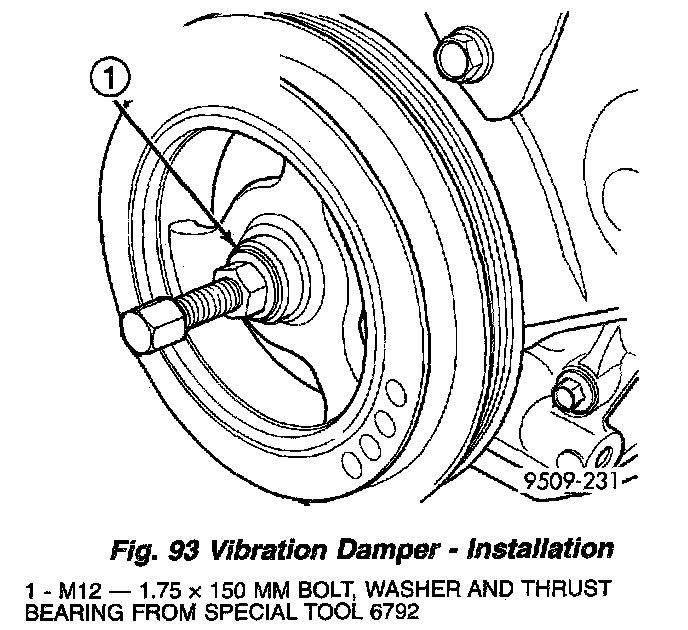

1. Install crankshaft vibration damper using M12-1.75 x 150 mm bolt, washer, thrust bearing and nut from Special Tool 6792 (Fig. 93).

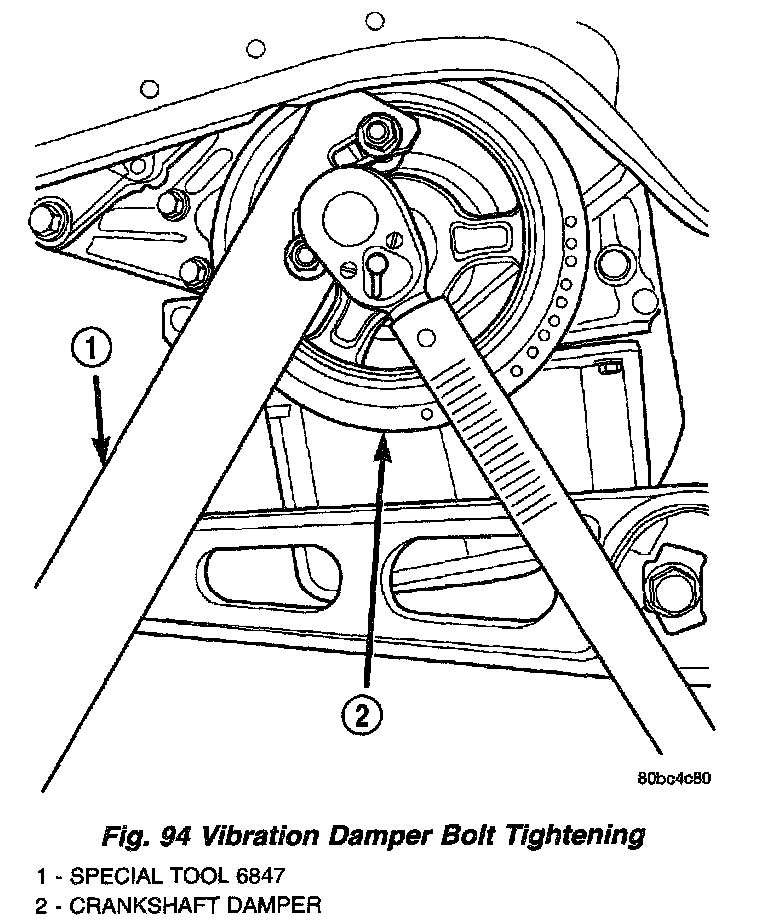

2. Install vibration damper bolt. Using Special Tool 6847 and a torque wrench, tighten bolt to 136 Nm (100 ft. lbs.) (Fig. 94).
3. Install accessory drive belts.
4. Install the right inner splash shield and lower vehicle.
