Procedures

STANDARD PROCEDURE - CAMSHAFT END-PLAY
1. Measure camshaft end play using the following procedure:

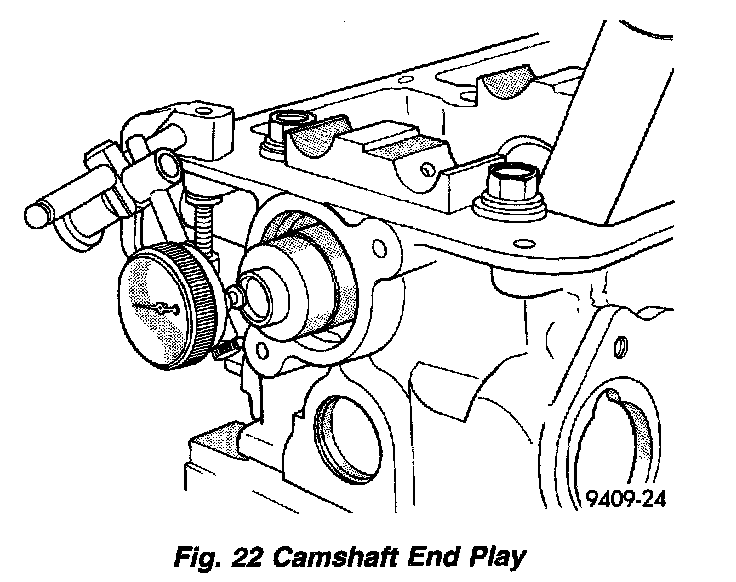

a. Mount dial indicator C-3339 or equivalent, to a stationary point on cylinder head (Fig. 22).
b. Using a suitable tool, move camshaft to rearward limits of travel.
c. Zero the dial indicator.
d. Move camshaft forward to limits of travel and read dial indicator.
e. End play travel: 0.13 - 0.33 mm (0.005 - 0.013 inch).
