FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
2001
>>
Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

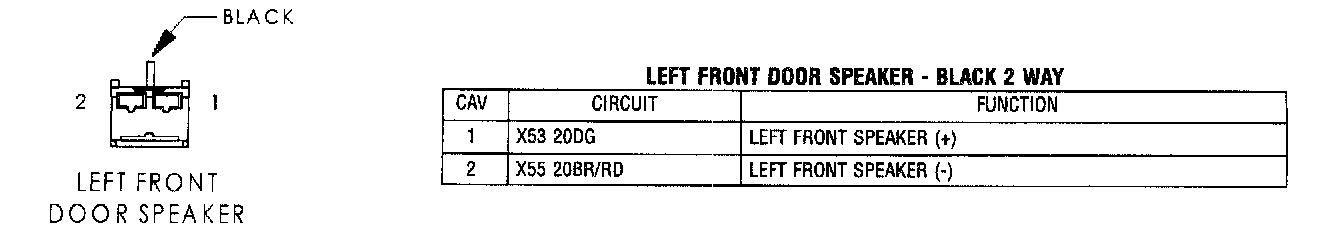

Left Front Door Speaker:

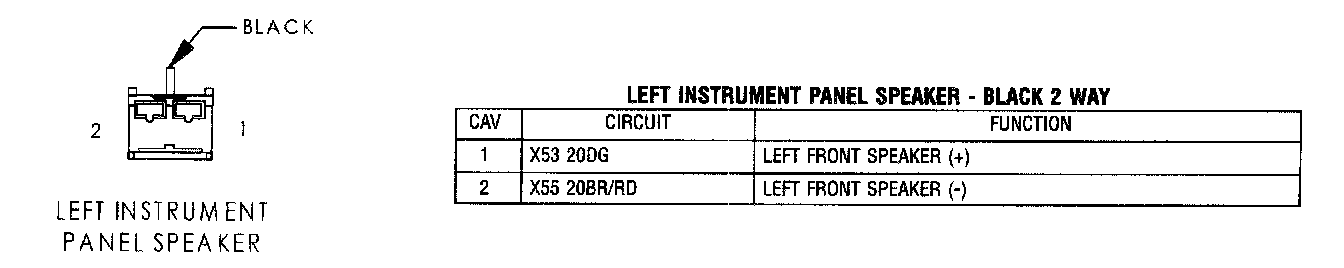

Left Instrument Panel Speaker:

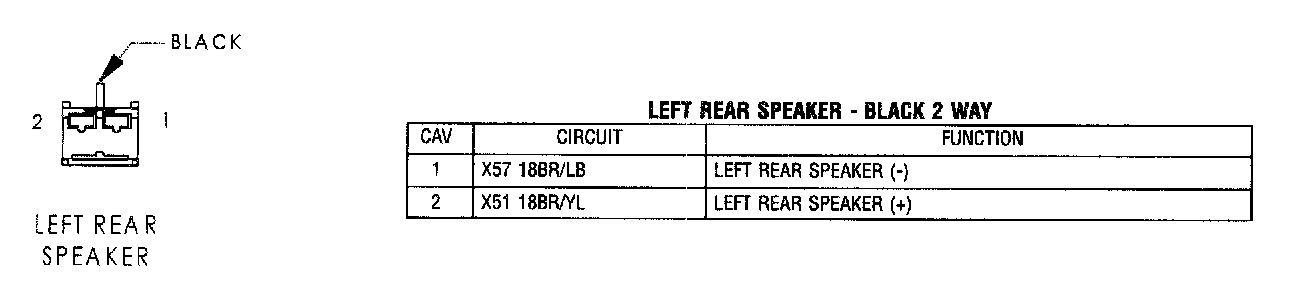

Left Rear Speaker:

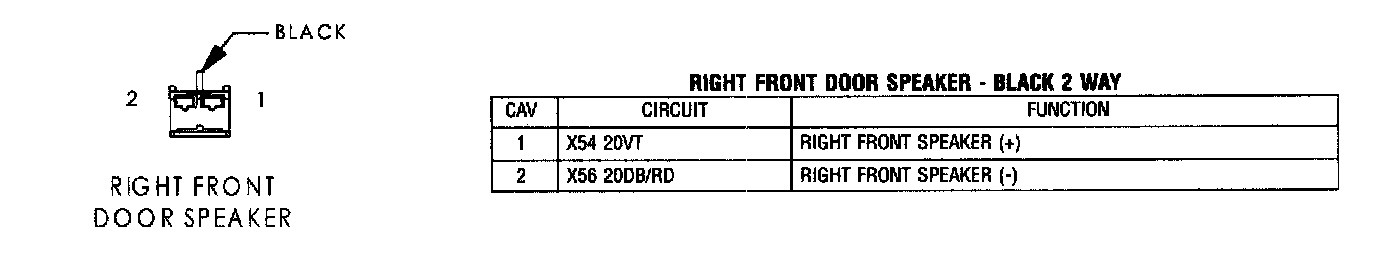

Right Front Door Speaker:

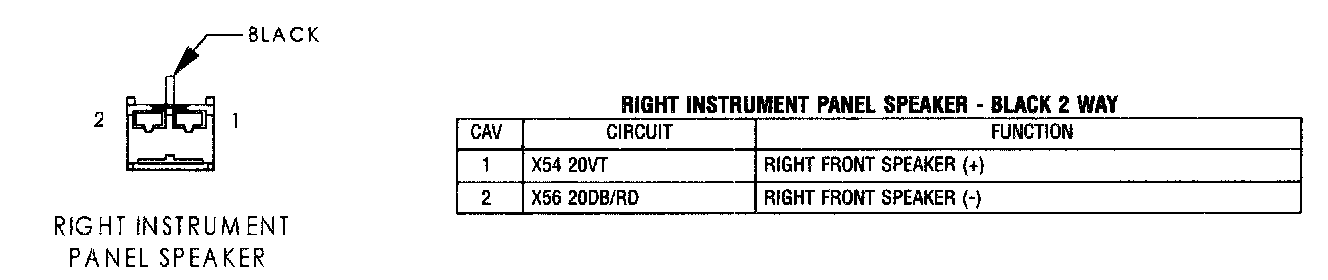

Right Instrument Panel Speaker:

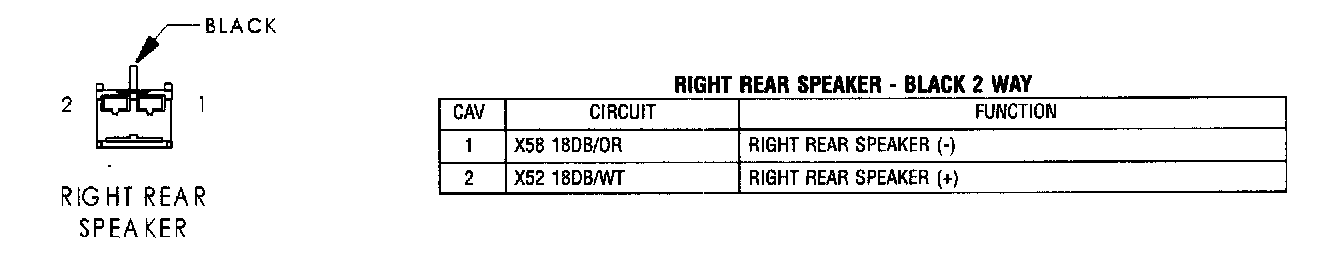

Right Rear Speaker:
