System Diagram

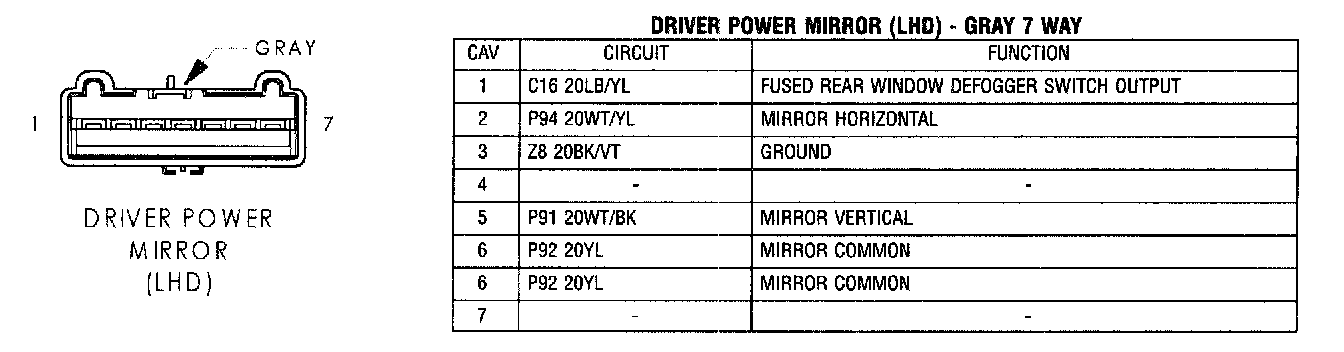

Driver Power Mirror (LHD):

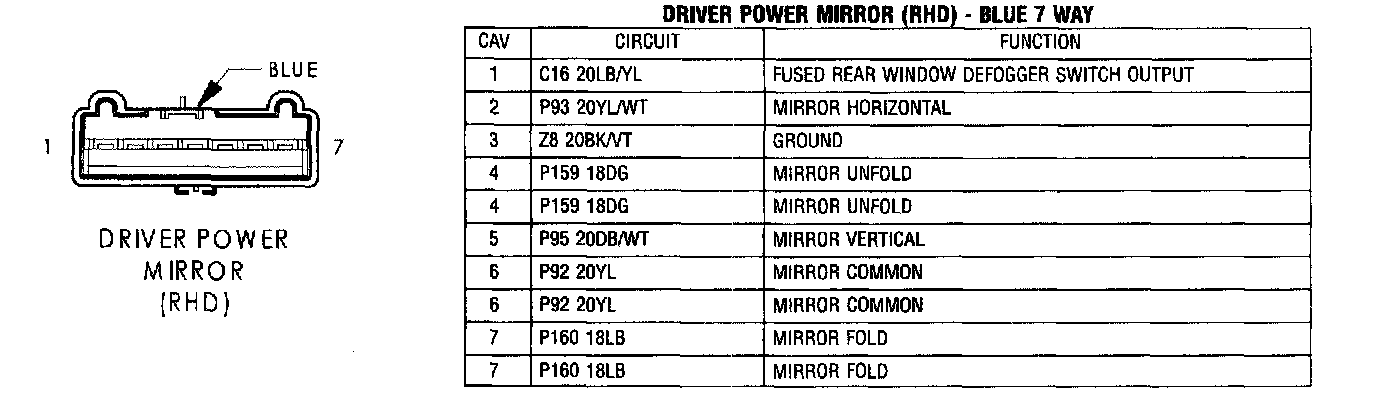

Driver Power Mirror (RHD):

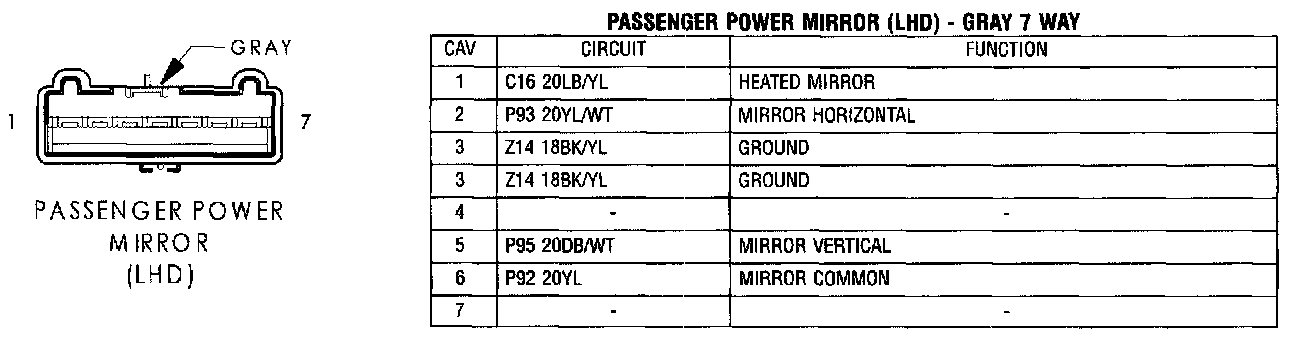

Passenger Power Mirror (LHD):

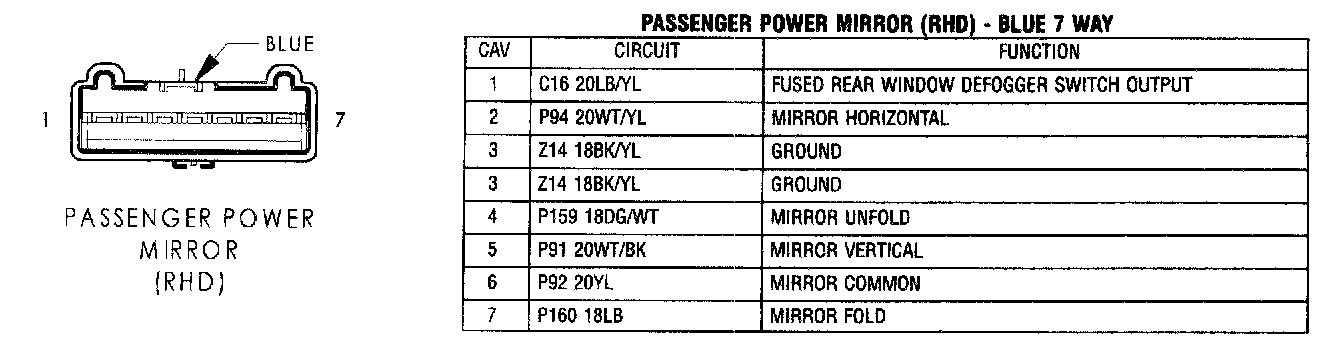

Passenger Power Mirror (RHD):
