Door Mounted Speaker Replacement

REMOVAL

Fig.10 Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove front door trim panel.

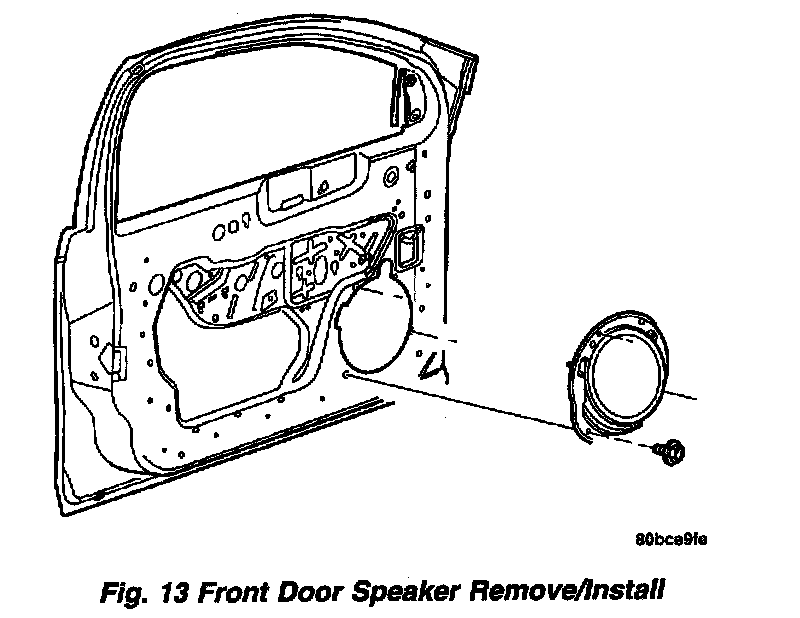

Fig.13 Front Door Speaker Remove/Install:

3. Remove speaker retaining screws.
4. Remove speaker assembly and disconnect wire connector from rear of speaker.

INSTALLATION
1. Reconnect wire connector to speaker and install speaker to vehicle.
2. Install speaker retaining screws.
3. Install front door trim panel.
4. Connect battery negative cable.
