Radio/Stereo: Testing and Inspection

CAUTION: The CD player will only operate between approximate temperatures of -23 °C and +65 °C (-10 °F and +145 °F).

Whenever a radio malfunction occurs, first check the Power Distribution Center (PDC), Interior lamp fuse, M1 - Radio Memory Feed. Also, check Fuse 2 in the fuse block.

NOTE: The vehicles are shipped with the INTERIOR LAMP fuse disconnected.

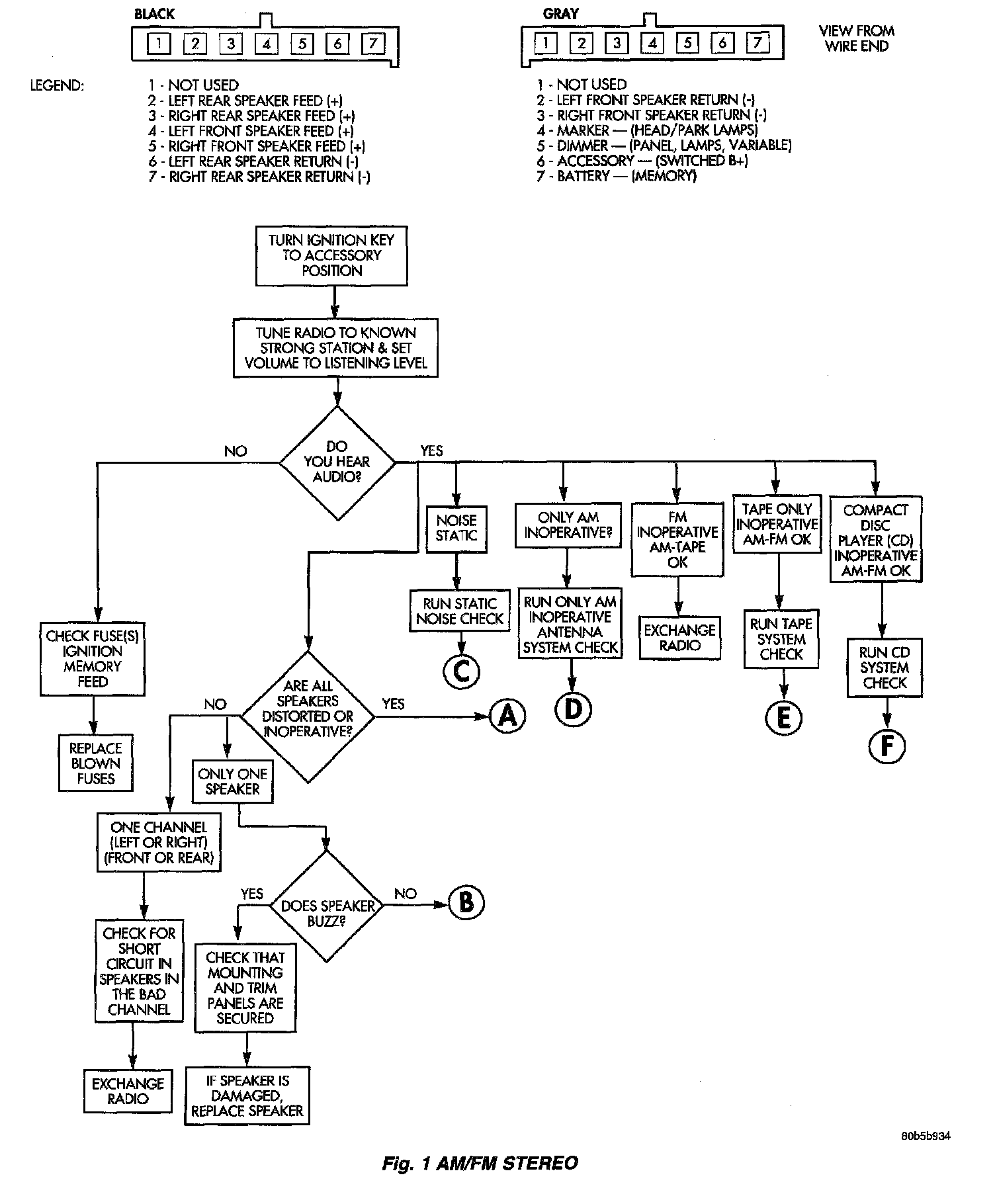

AM/FM Stereo (Part 1 Of 5):

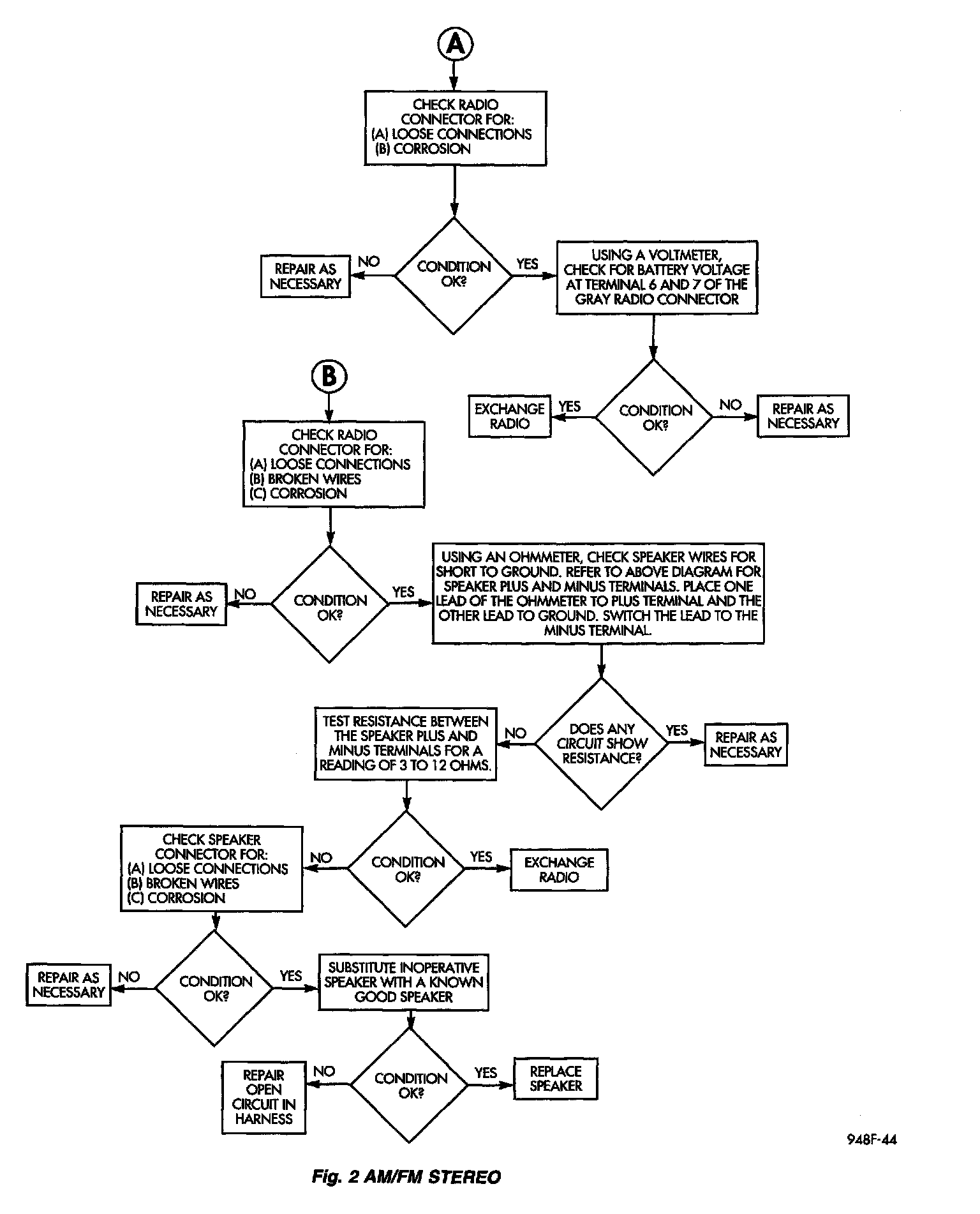

AM/FM Stereo (Part 2 Of 5):

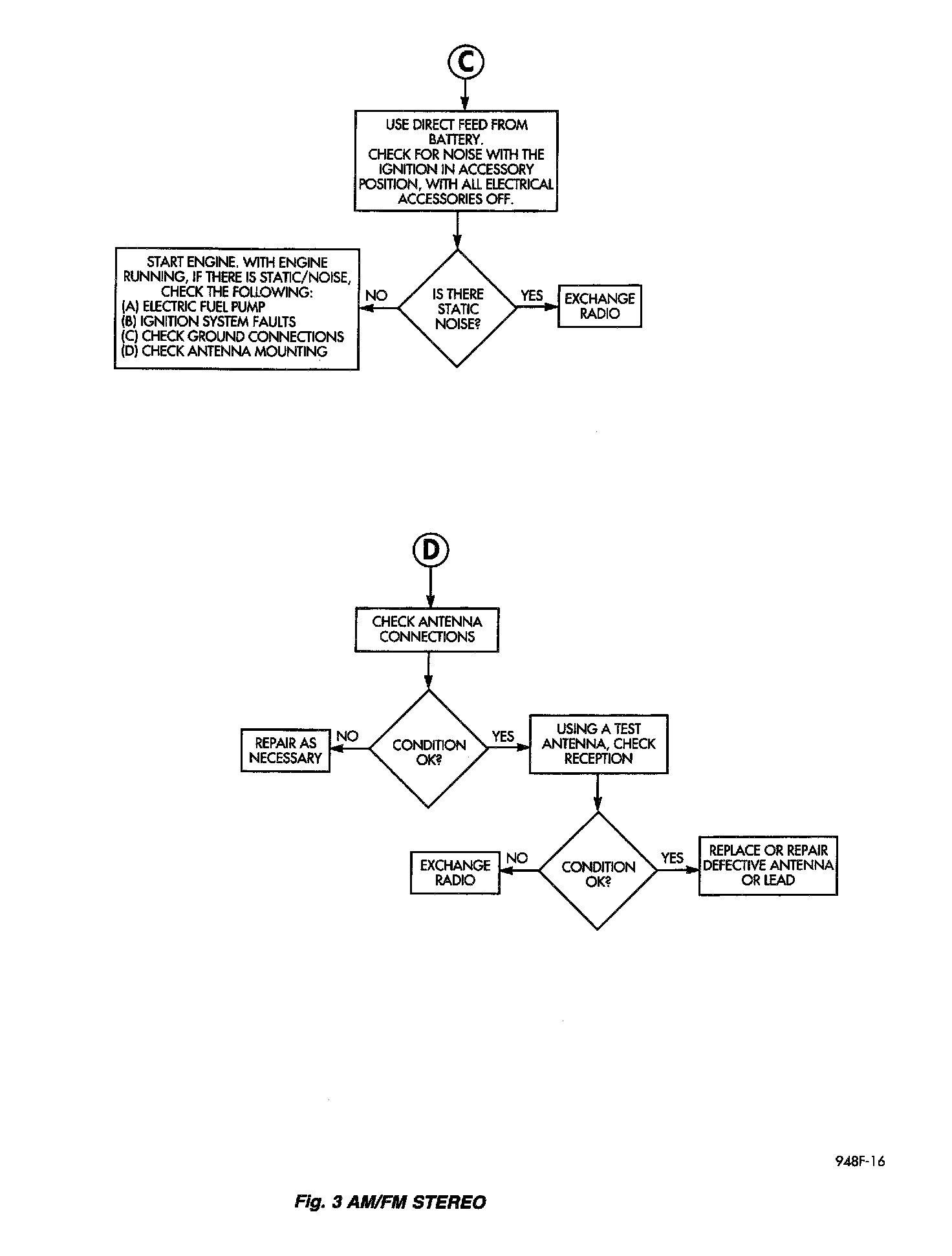

AM/FM Stereo (Part 3 Of 5):

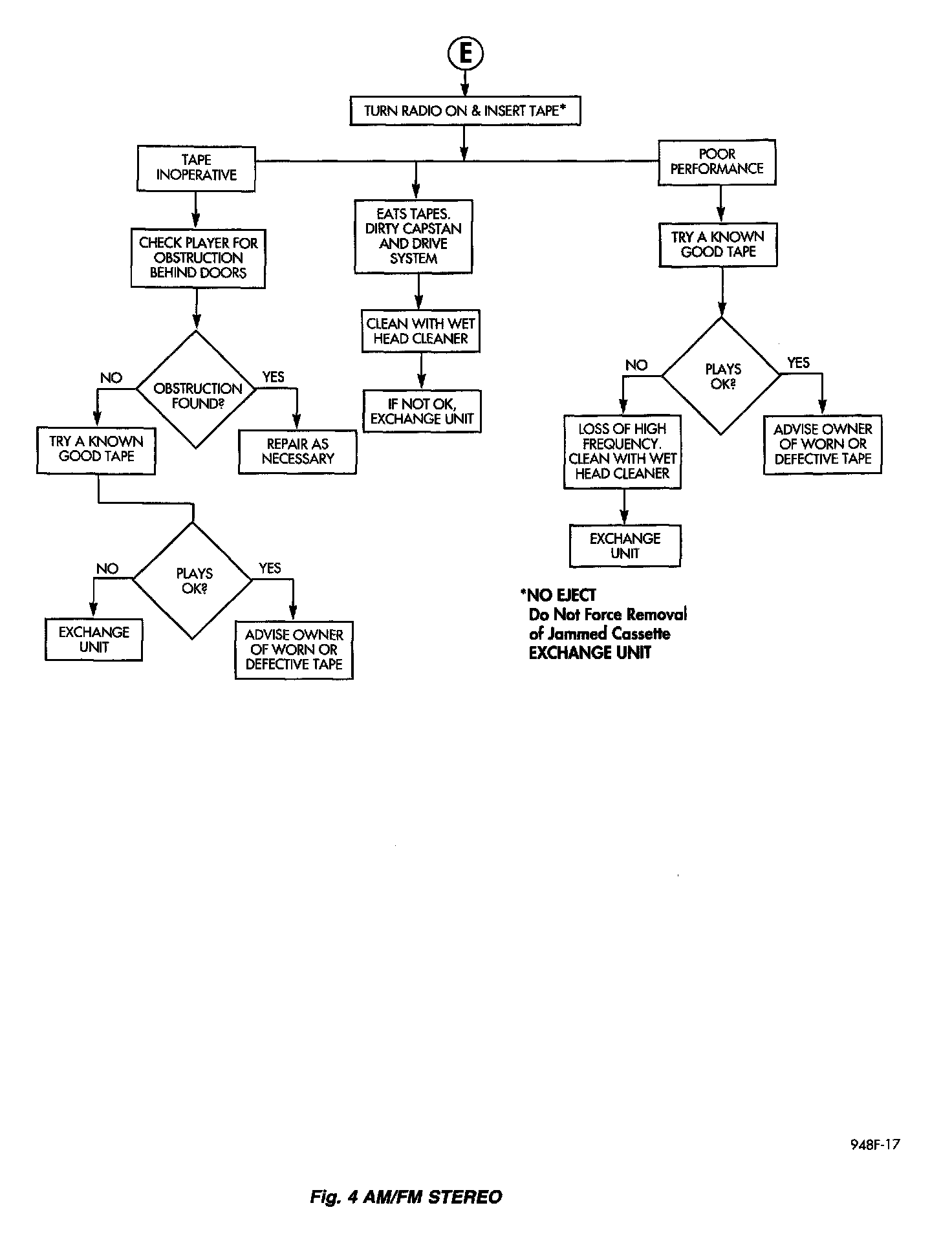

AM/FM Stereo (Part 4 Of 5):

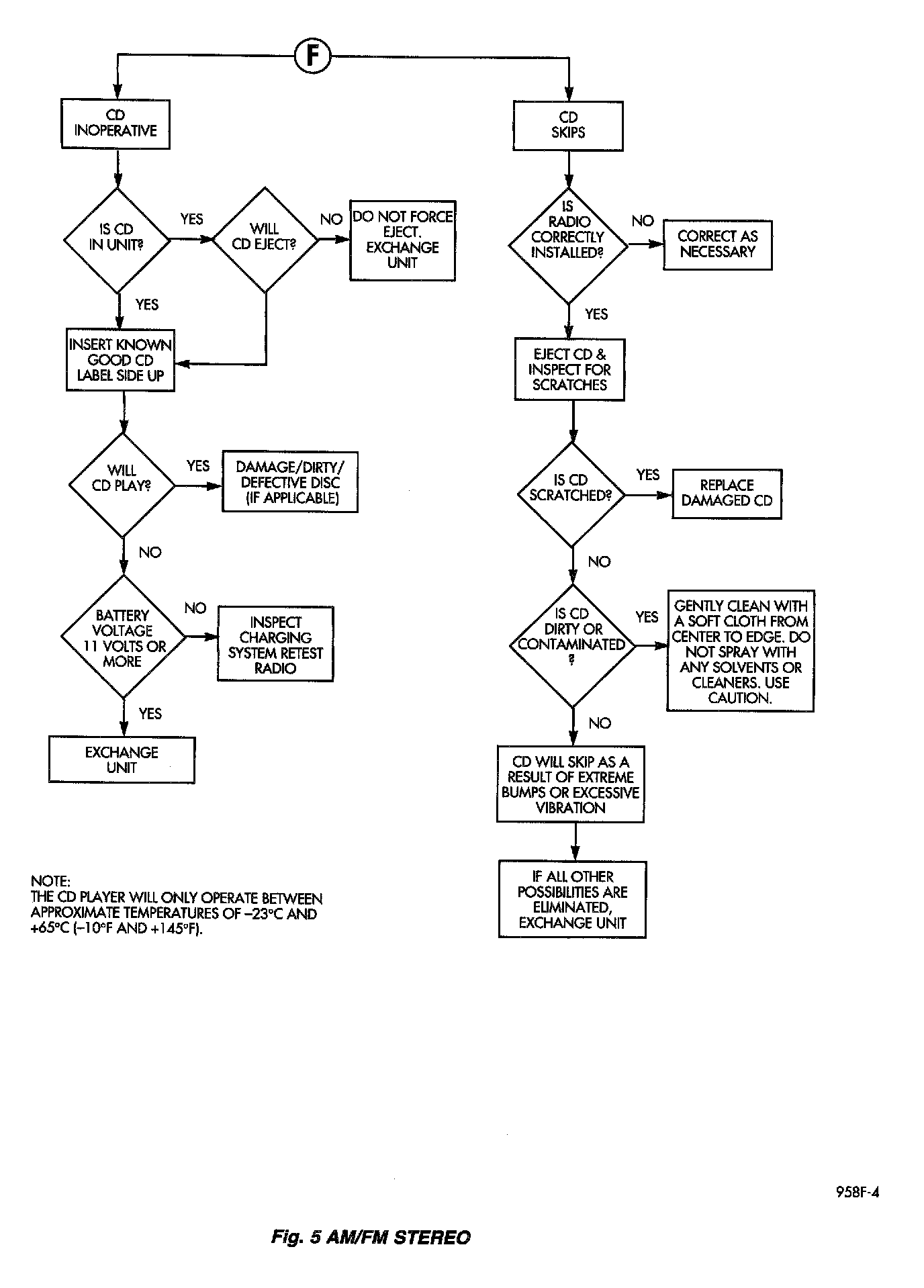

AM/FM Stereo (Part 5 Of 5):

Verify, the radio wire harness are properly connected before starting normal diagnosis and repair procedures. Refer to,,,,.

Refer to the appropriate wiring information. The wiring information includes wiring diagrams, proper wire and connector repair procedures, details of wire harness routing and retention, connector pin-out information and location views for the various wire harness connectors, splices and grounds.
