Radio/Stereo: Service and Repair

REMOVAL

Fig.10 Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center bezel.

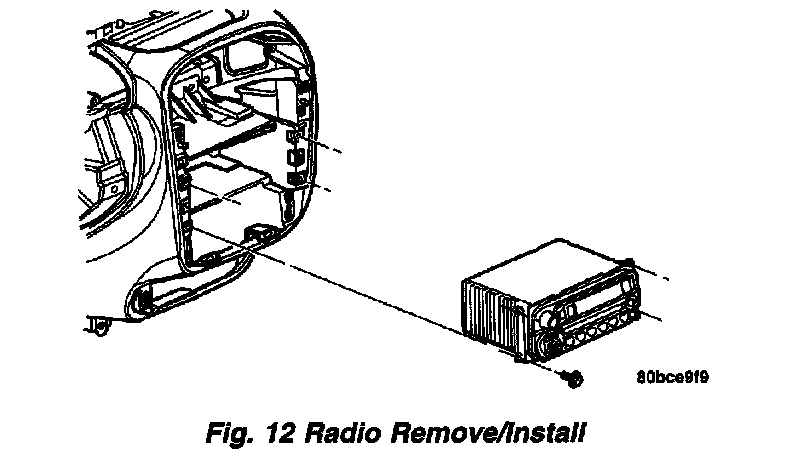

Fig.12 Radio Remove/Install:

3. Remove four mounting screws on the radio and pull out of instrument panel.
4. Disconnect wiring and antenna cable and remove ground wire from radio.
5. Remove radio from vehicle.

INSTALLATION
1. Install radio to vehicle.
2. Connect wiring, antenna cable and ground strap to radio.
3. Install mounting screws.
4. Install instrument panel center bezel.
5. Connect battery negative cable.
