CD Changer: Service and Repair

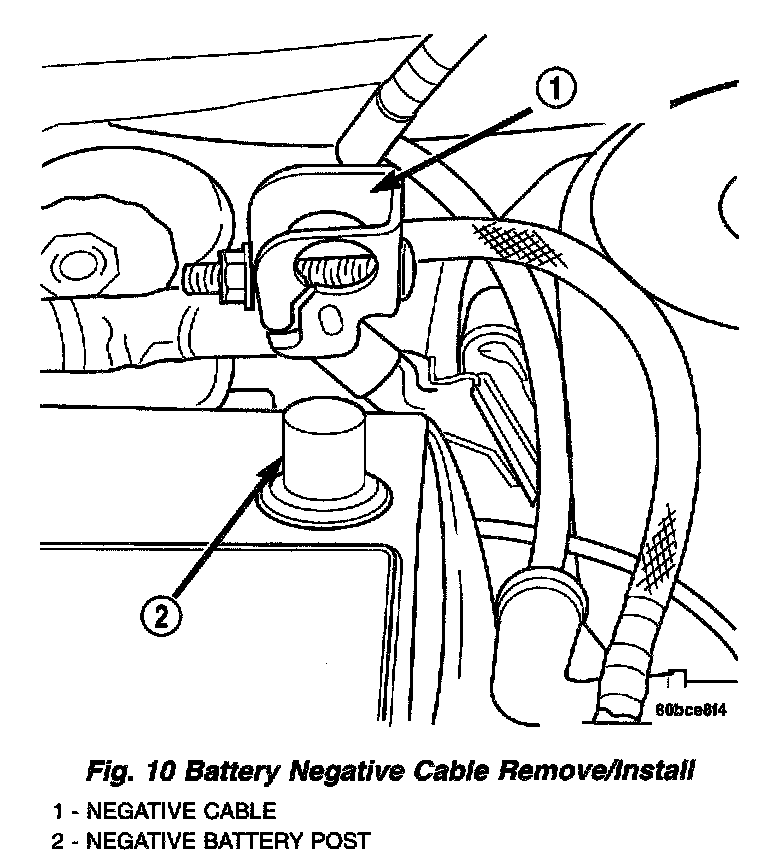

REMOVALFig.10 Battery Negative Cable Remove/Install:
1. Disconnect and isolate the battery negative cable.
2. Using a trim stick (special tool #C-4755), gently pry out on CD changer bezel and remove.

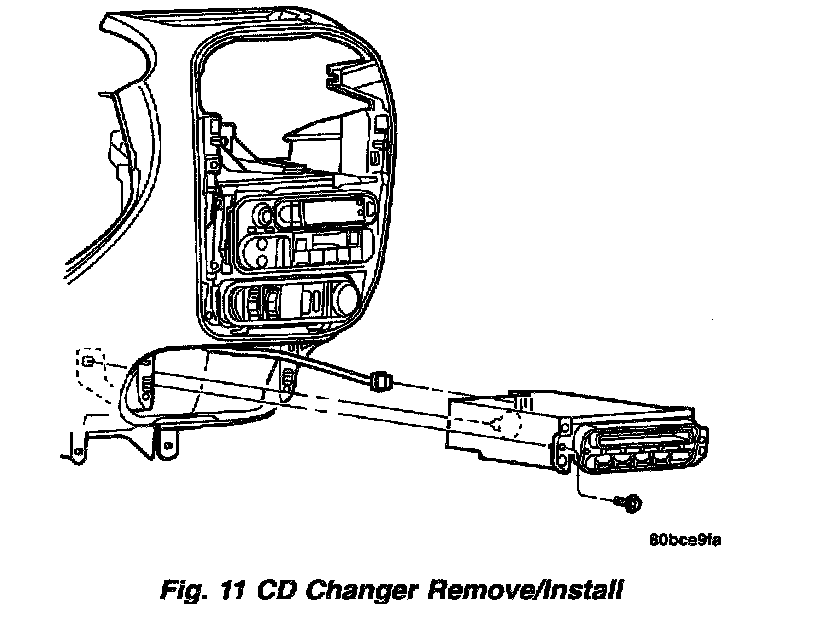

Fig.11 CD Changer Remove/Install:
3. Remove two retaining screws to CD changer.
4. Pull CD changer out of instrument panel and disconnect harness connector from rear of changer.
5. Remove CD changer from vehicle.
INSTALLATION
1. Install CD changer to vehicle.
2. Connect harness connector to CD changer.
3. Install retaining screws.
4. Install CD changer bezel.
5. Connect battery negative cable.
