P1496

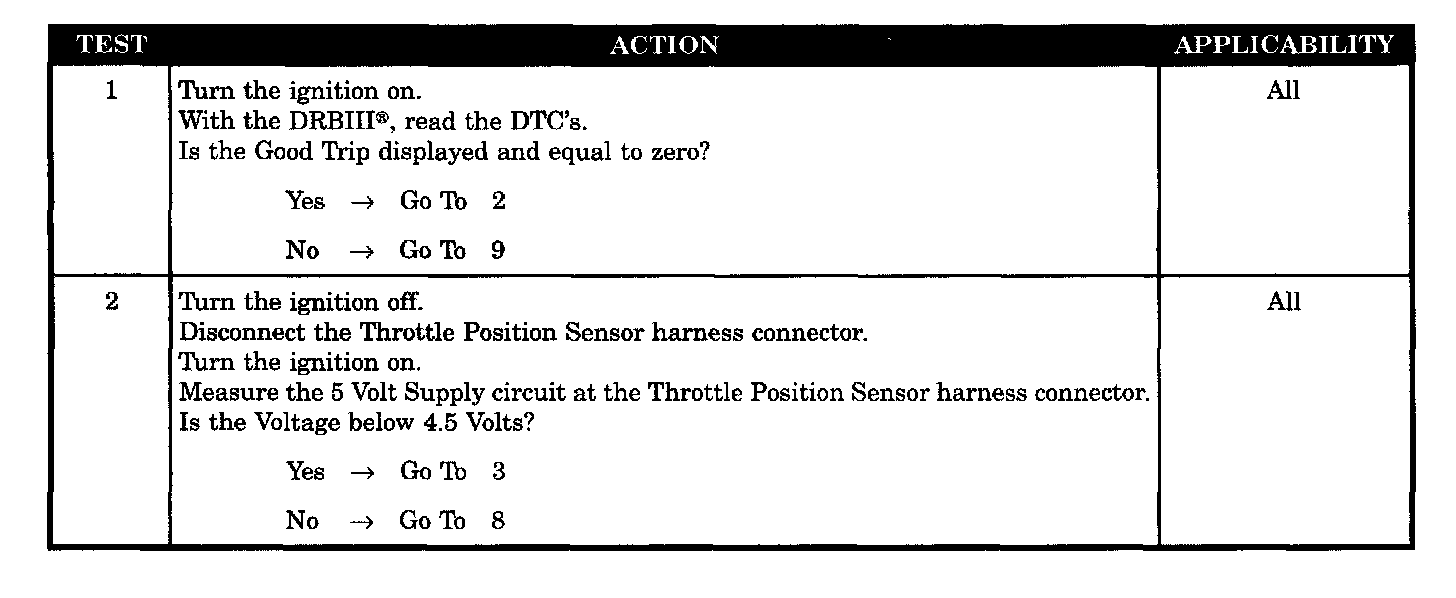

Tests 1 - 2:

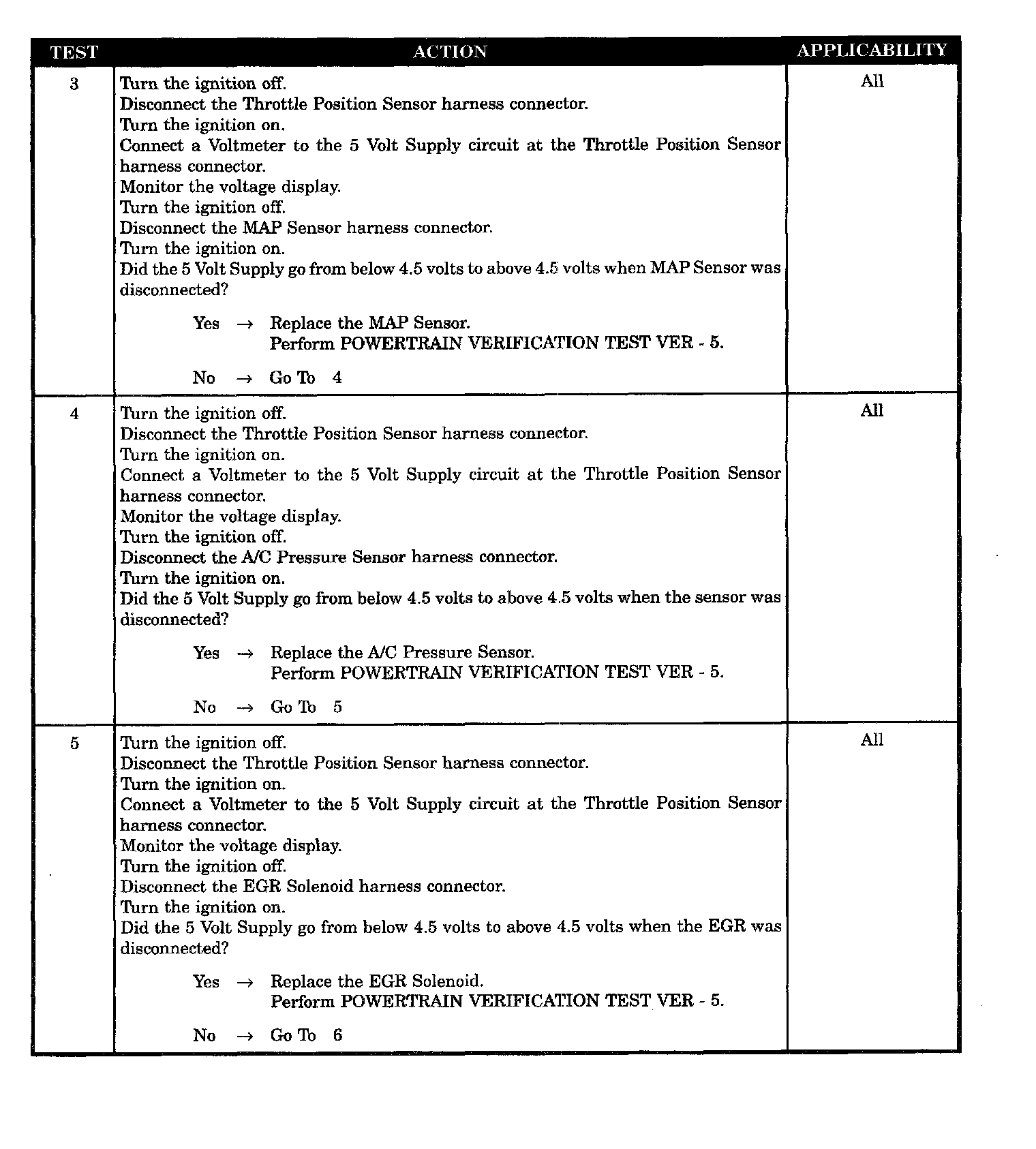

Tests 3 - 5:

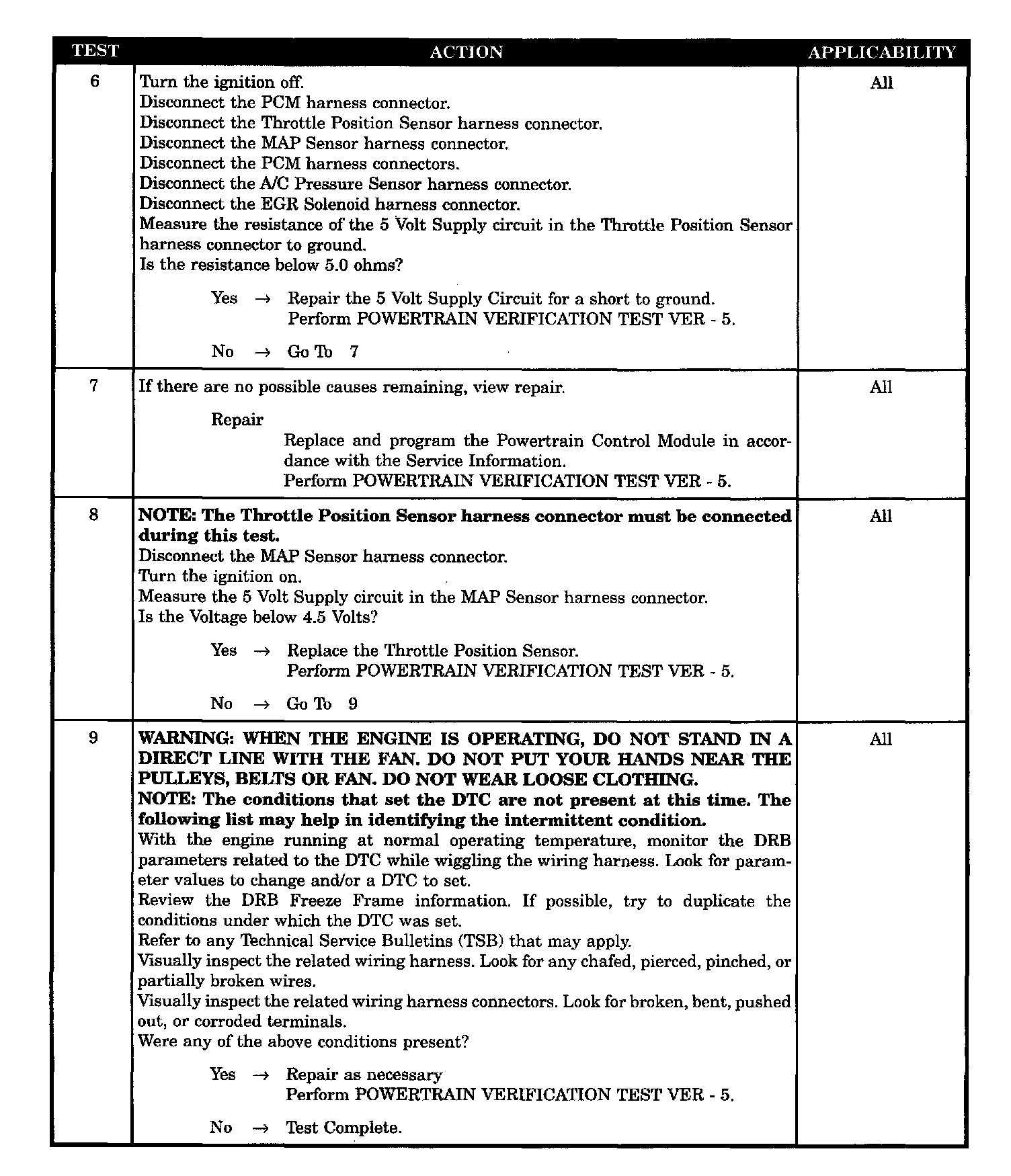

Tests 6 - 9:

SYMPTOM
P1496-5 VOLT SUPPLY, OUTPUT TOO LOW

WHEN MONITORED
With the ignition ON.

SET CONDITION
The 5-volt supply to the sensors is below 3.5 volts for 4 seconds.

POSSIBLE CAUSES
- Intermittent condition
- Throttle position sensor
- MAP sensor
- A/C pressure sensor
- EGR solenoid
- 5 volt supply shorted to ground
- PCM
