4 Speed 41TE Automatic Transmission

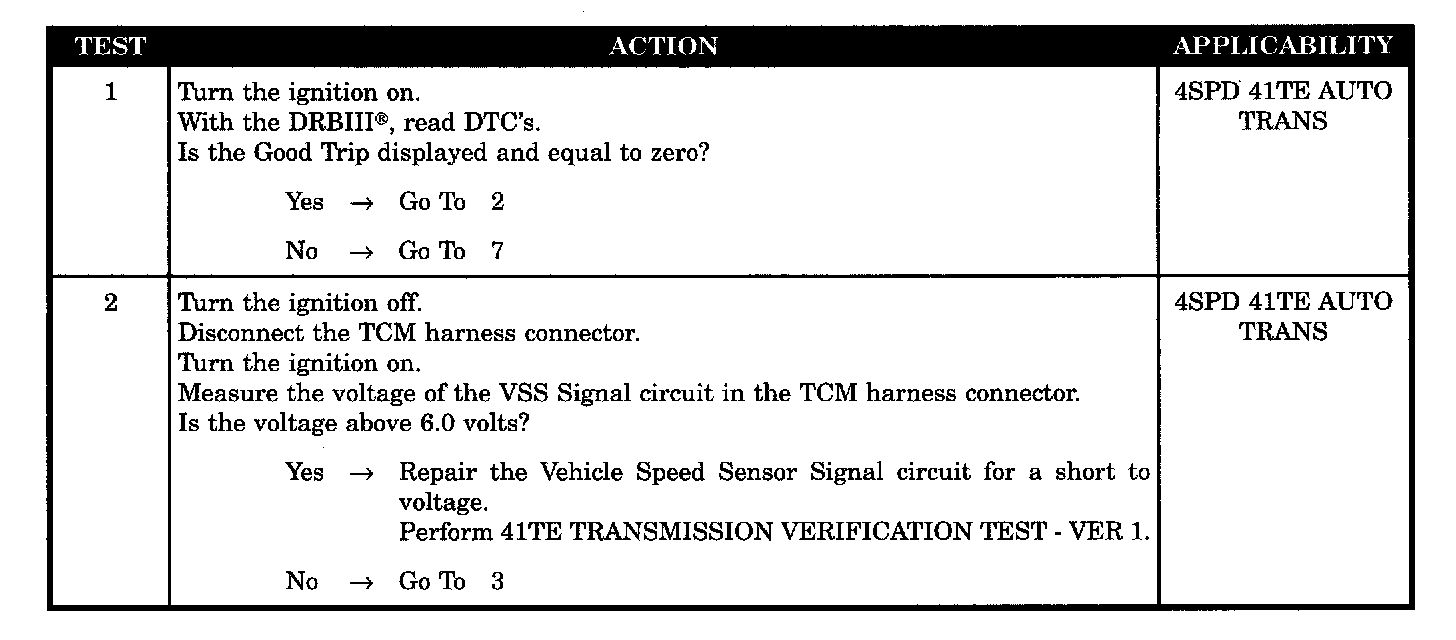

Tests 1 - 2:

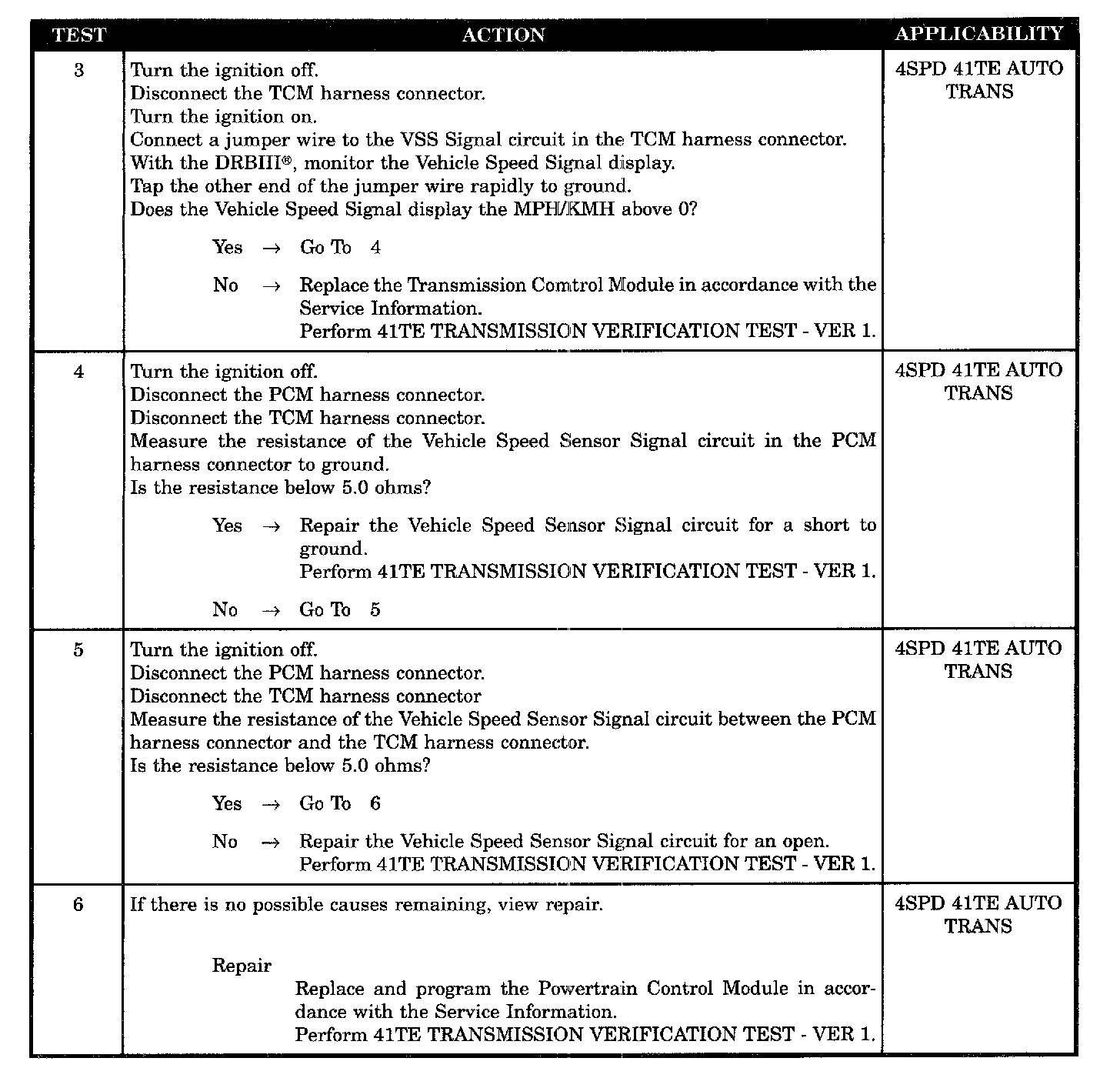

Tests 3 - 6:

Test 7:

SYMPTOM
P0500-NO VEHICLE SPEED SIGNAL

WHEN MONITORED
With the engine running, transmission not in park or neutral, brakes not applied, and engine rpm greater than 1500.

SET CONDITION
This code will set if no vehicle speed signal is received from the TCM (transmission control module) for more than 11 seconds for 2 consecutive trips.

POSSIBLE CAUSES
- Intermittent condition
- Vehicle speed sensor signal shorted voltage
- VSS signal from TCM
- Vehicle speed sensor signal shorted to ground
- Vehicle speed sensor signal open
- PCM VSS signal
