P0340

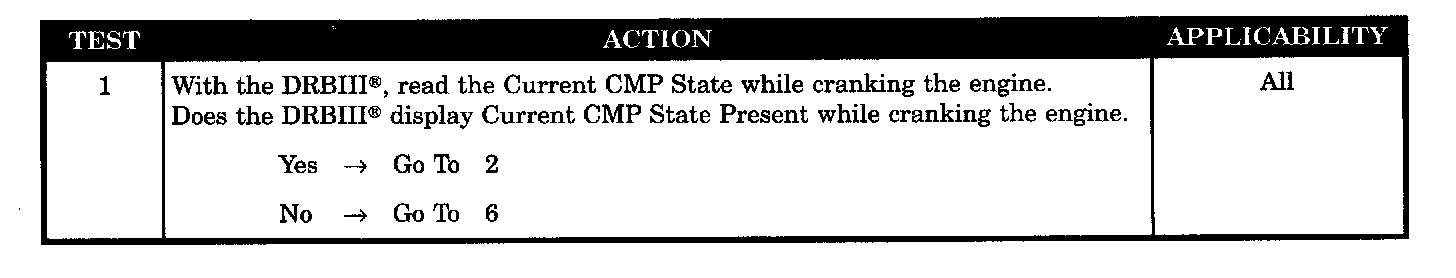

Test 1:

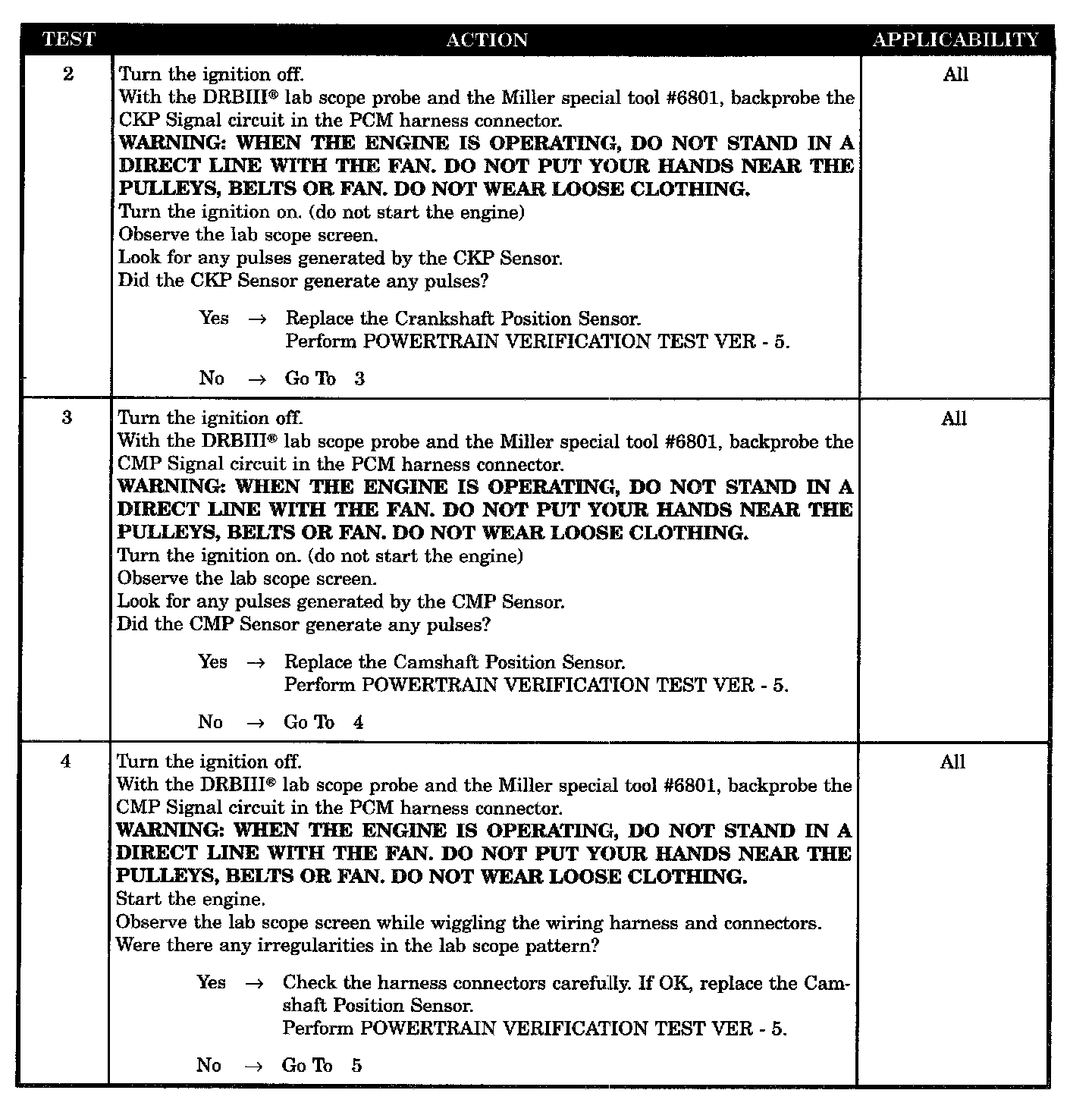

Tests 2 - 4:

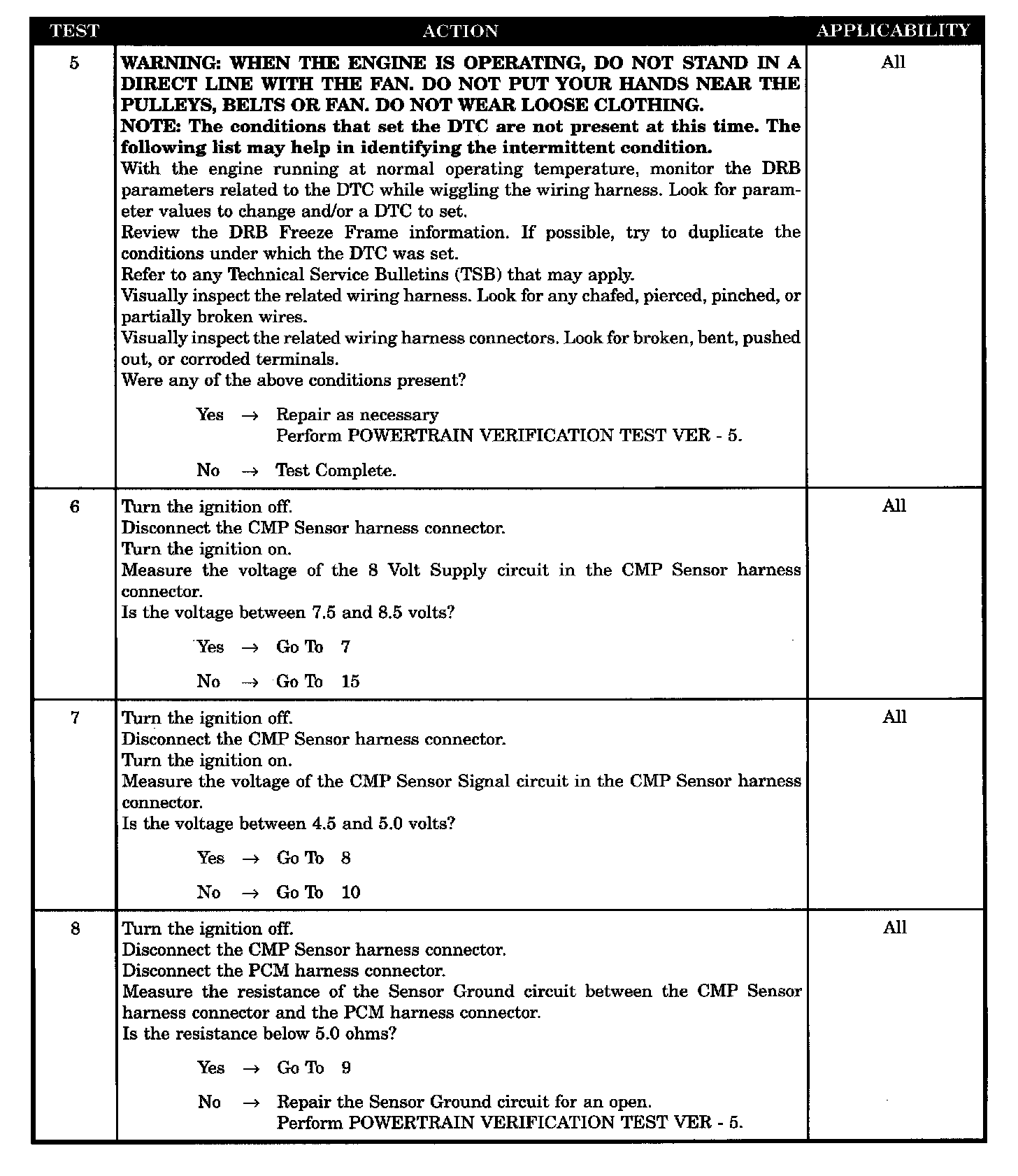

Tests 5 - 8:

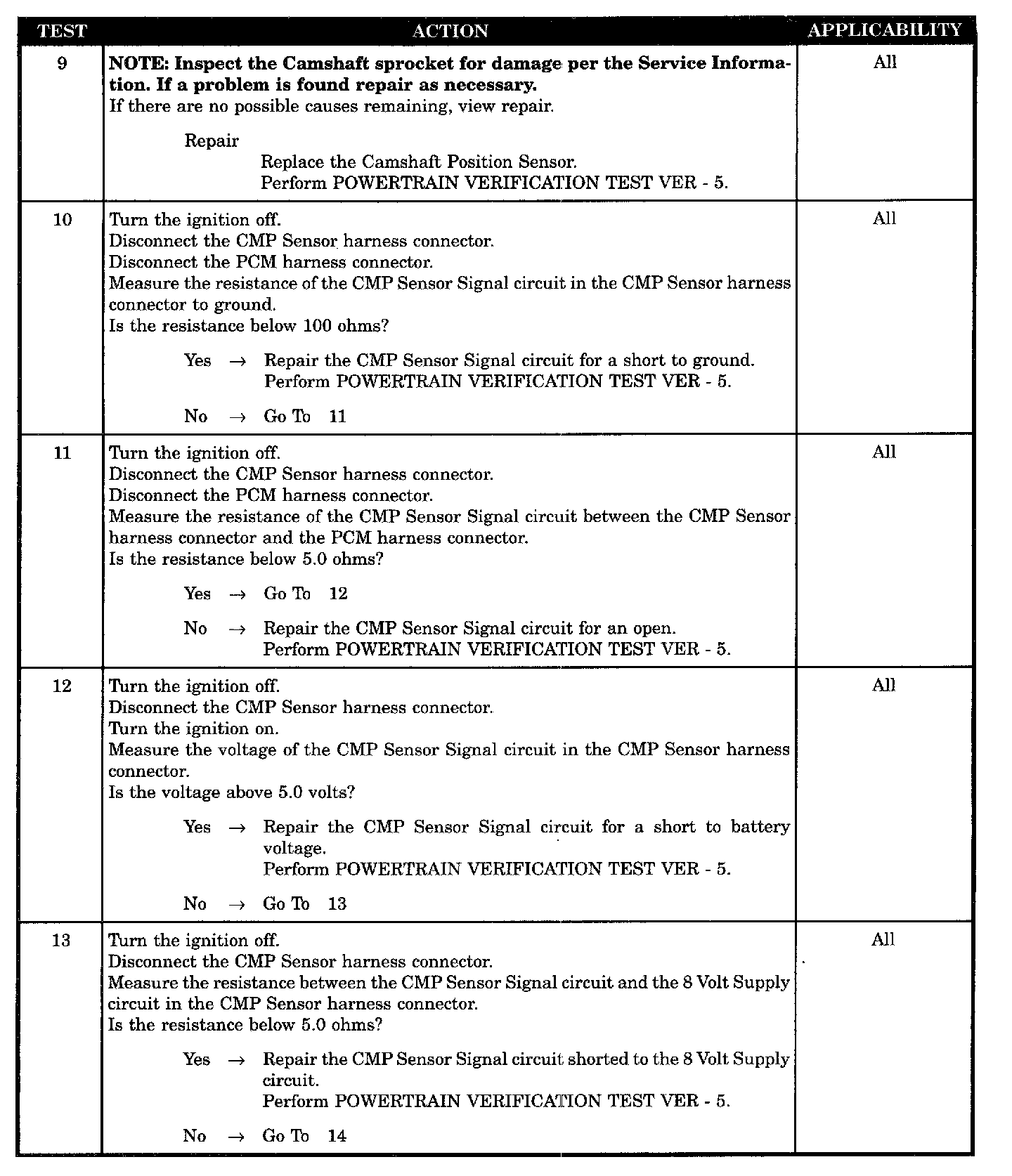

Tests 9 - 13:

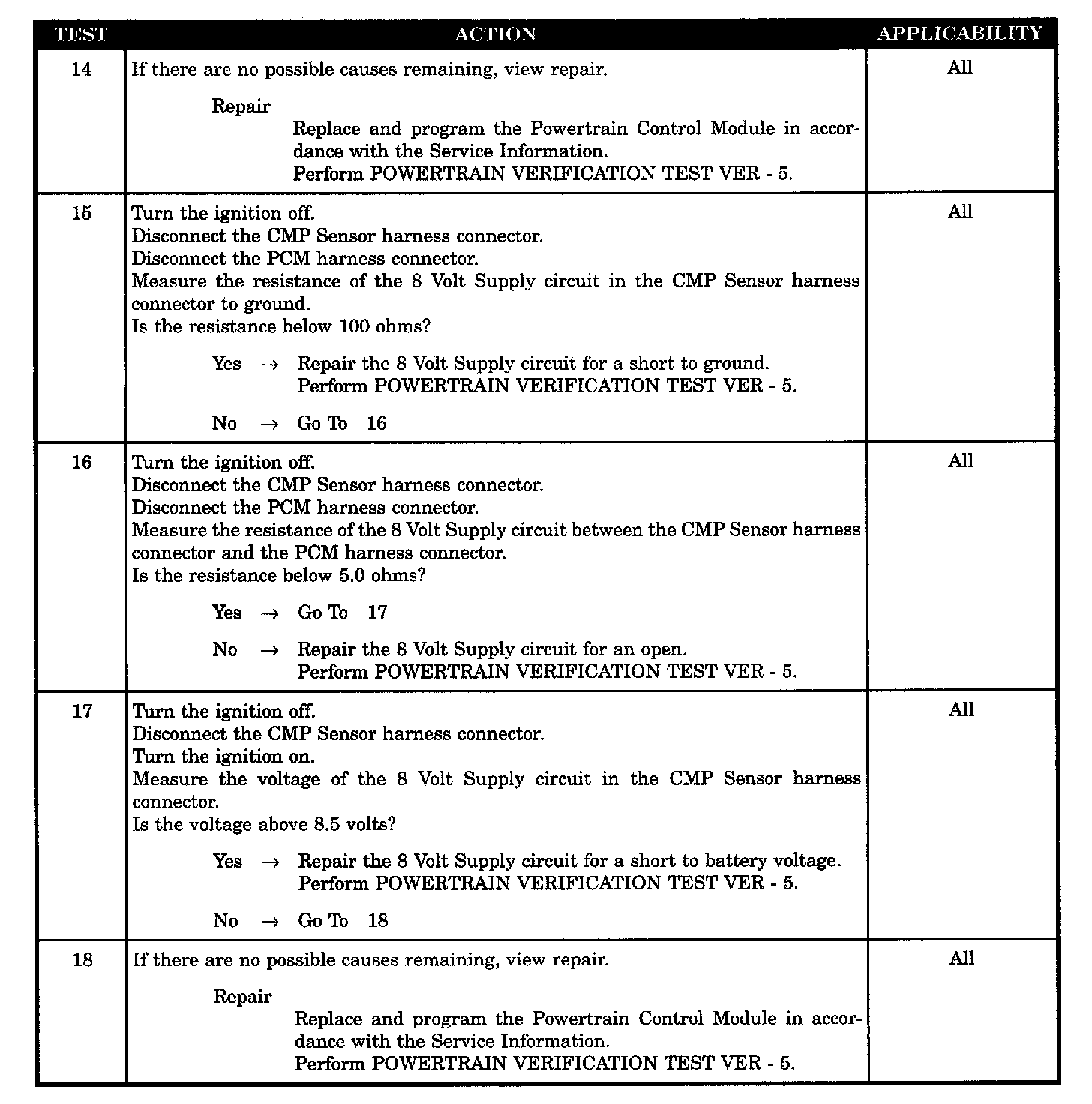

Tests 14 - 18:

SYMPTOM
P0340-NO CAM SIGNAL AT PCM

WHEN MONITORED
Engine cranking/running.

SET CONDITION
At least 5 seconds or 2.5 engine revolutions have elapsed with crankshaft position sensor signals present but no camshaft position sensor signal.

POSSIBLE CAUSES
- Checking intermittent CKP signal with LAB
- Checking intermittent CMP signal with LAB
- Checking intermittent wiring with LAB scope
- Intermittent condition
- 8 volt supply circuit shorted to ground
- 8 volt supply circuit open
- 8 volt supply circuit shorted to voltage
- CMP sensor signal circuit shorted ground
- CMP sensor signal circuit open
- CMP sensor signal circuit shorted to voltage
- CMP sensor signal shorted to 8 volt supply circuit
- Sensor ground circuit open
- PCM - 8 volt supply
- PCM - CMP sensor signal
- Camshaft position sensor
