Home >> Chrysler >> 2001 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Theft Security System >> VTSS Indicator Fails to Flash

VTSS Indicator Fails to Flash

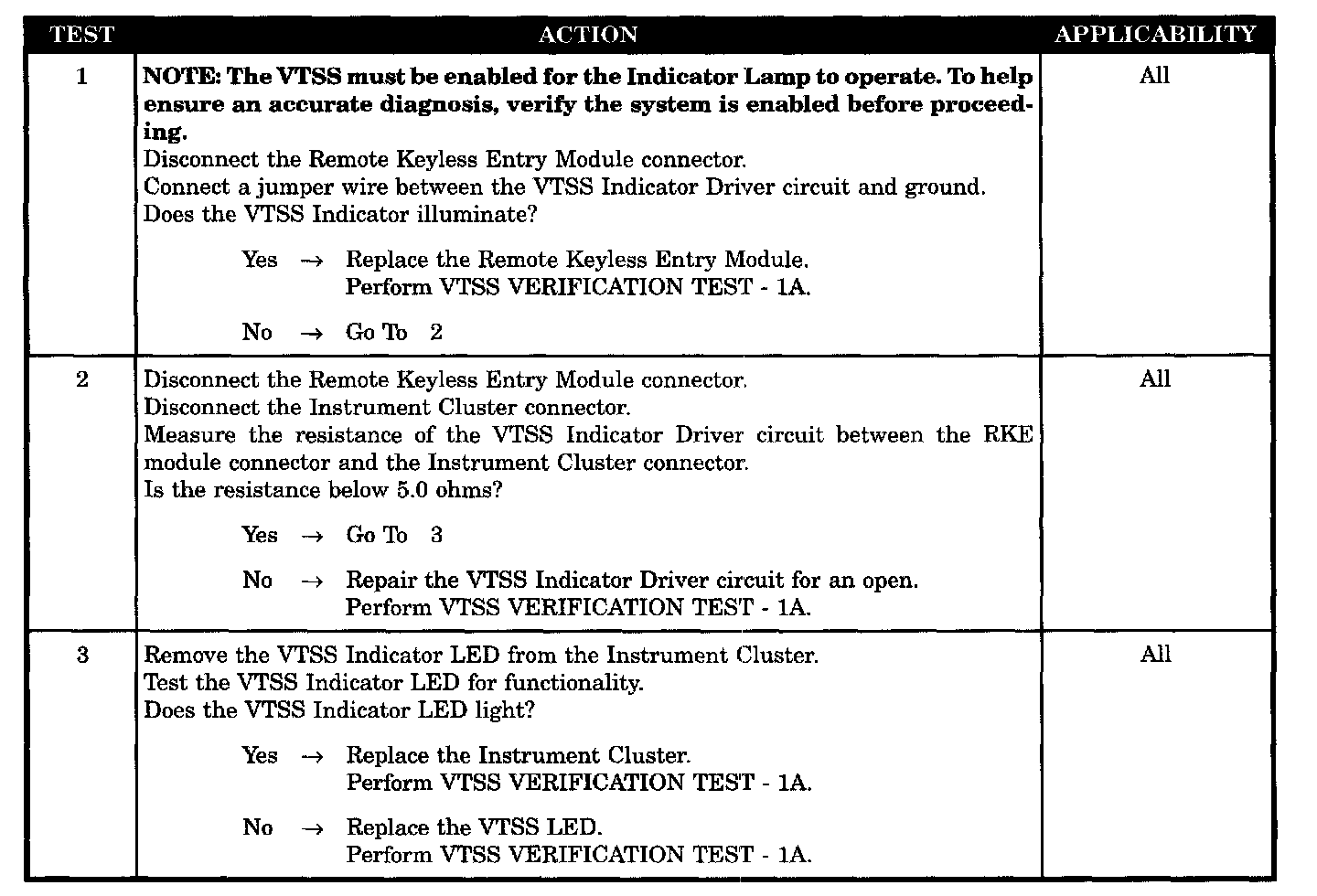

Tests 1 - 3:




SYMPTOM
VTSS INDICATOR FAILS TO FLASH

POSSIBLE CAUSES
- Remote keyless entry module
- Instrument cluster
- VTSS indicator driver circuit open
- VTSS LED open
