Open Passenger Door Fails to Trip Alarm

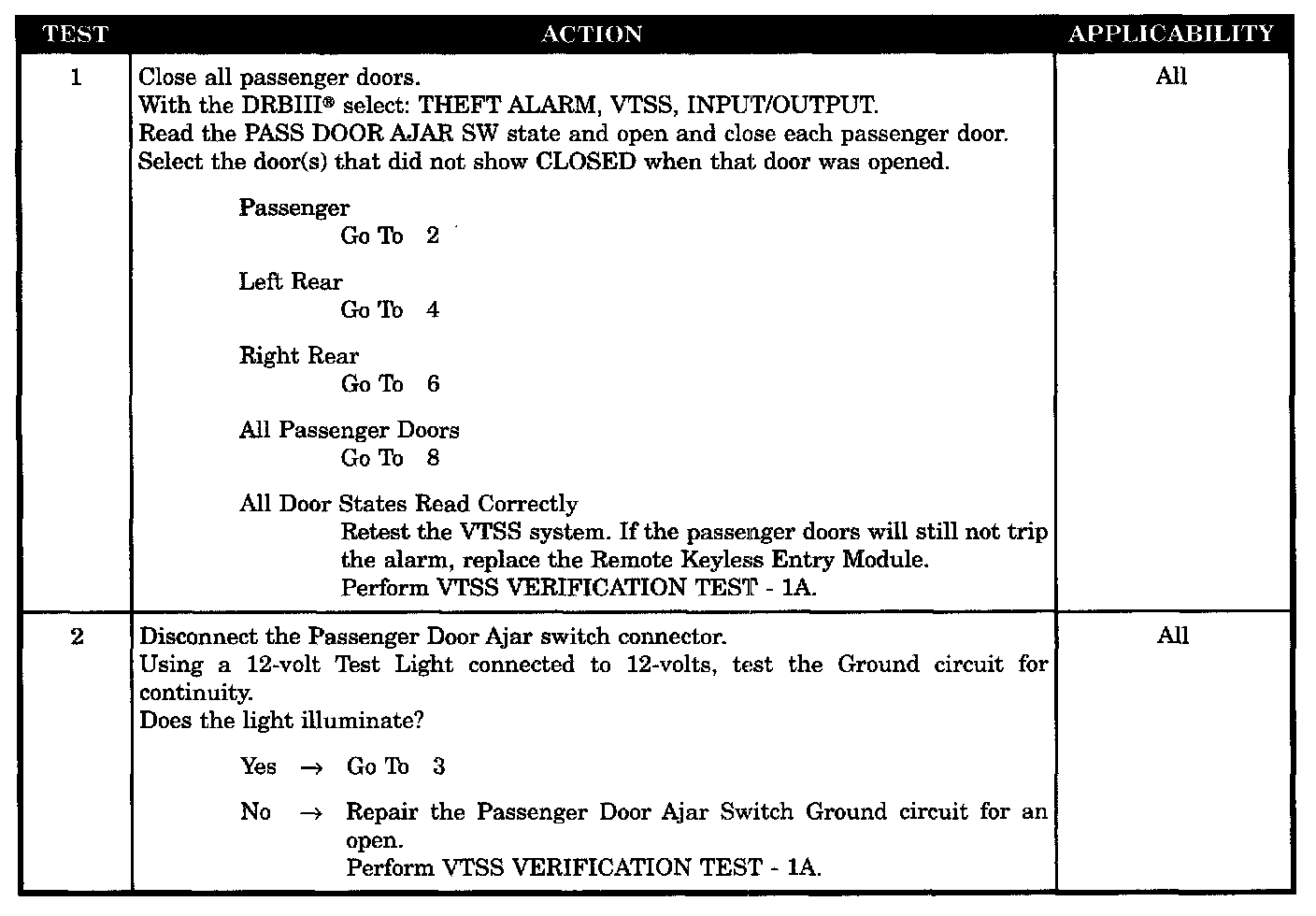

Tests 1 - 2:

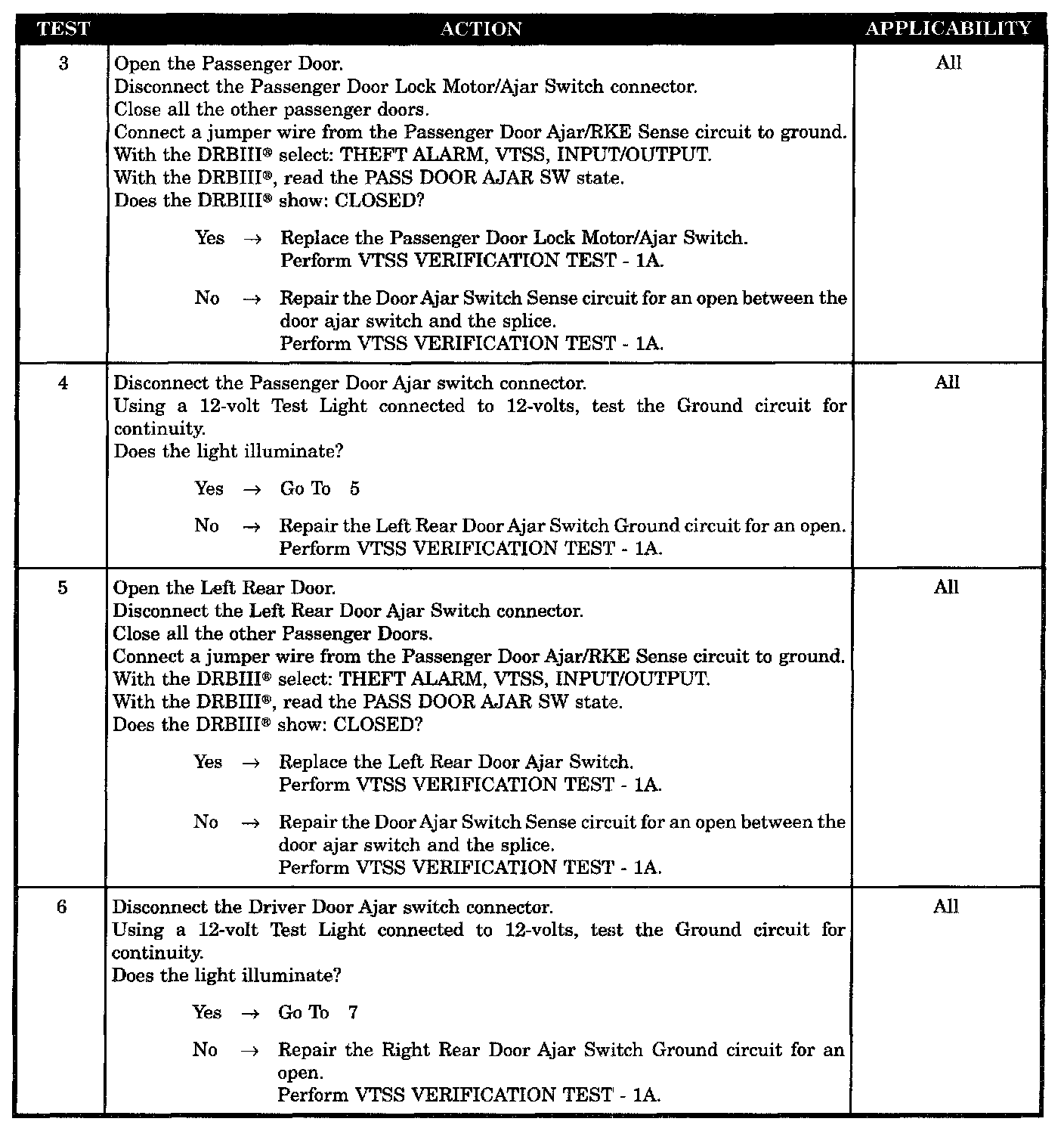

Tests 3 - 6:

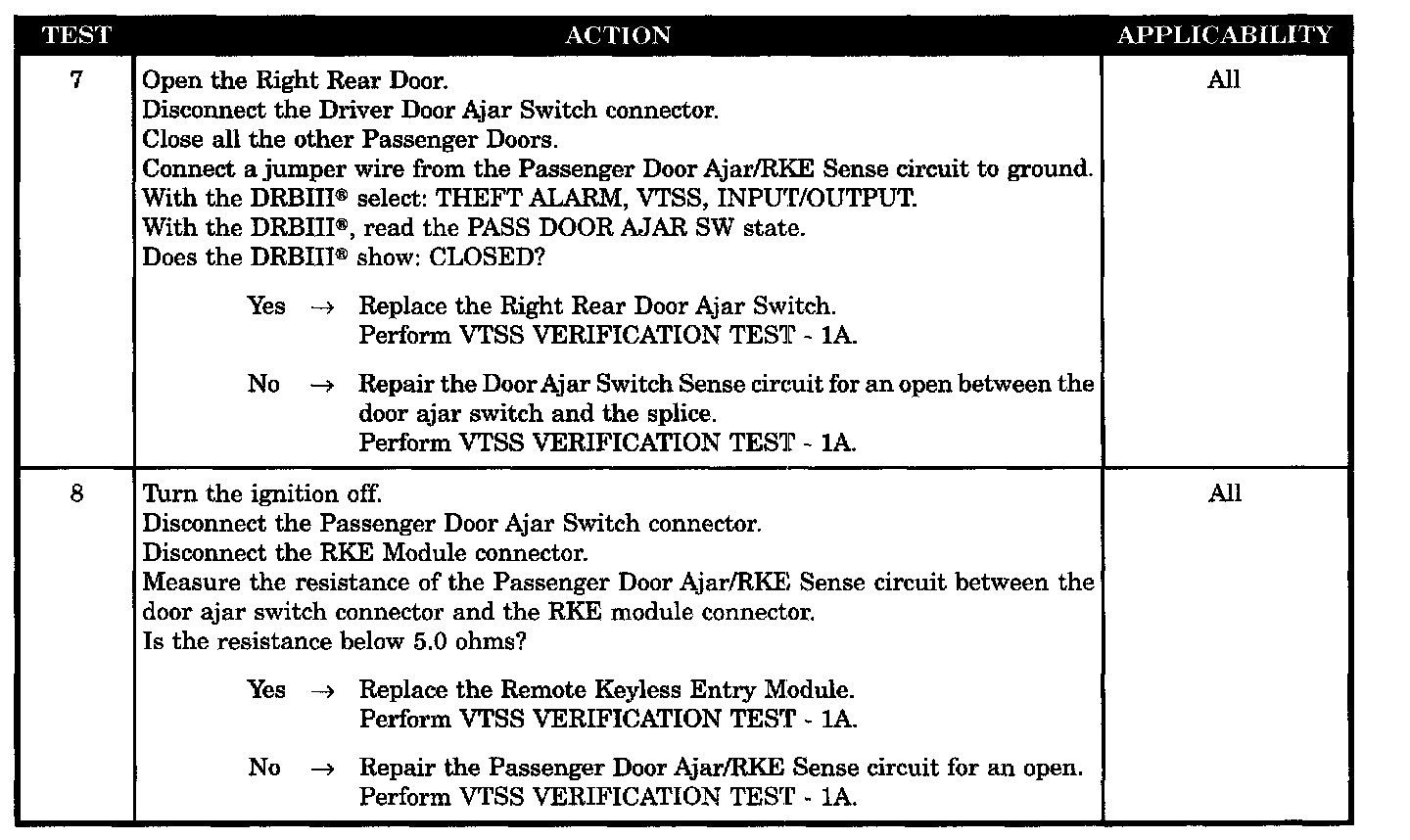

Tests 7 - 8:

SYMPTOM
OPEN PASSENGER DOOR FAILS TO TRIP ALARM

POSSIBLE CAUSES
- Left rear door ajar switch ground circuit open
- Passenger door ajar switch
- Passenger door ajar switch ground circuit open
- Right rear door ajar switch ground circuit open
- Passenger door ajar/RKE sense circuit open
- Left rear door ajar switch
- Passenger door ajar/RKE sense circuit open
- Right rear door ajar switch
- Passenger door ajar/RKE circuit open
- Passenger door ajar/RKE sense circuit open
- Remote keyless entry module
- Remote keyless entry module
