Right SIACM Seat Squib Circuit Shorted (Stored)

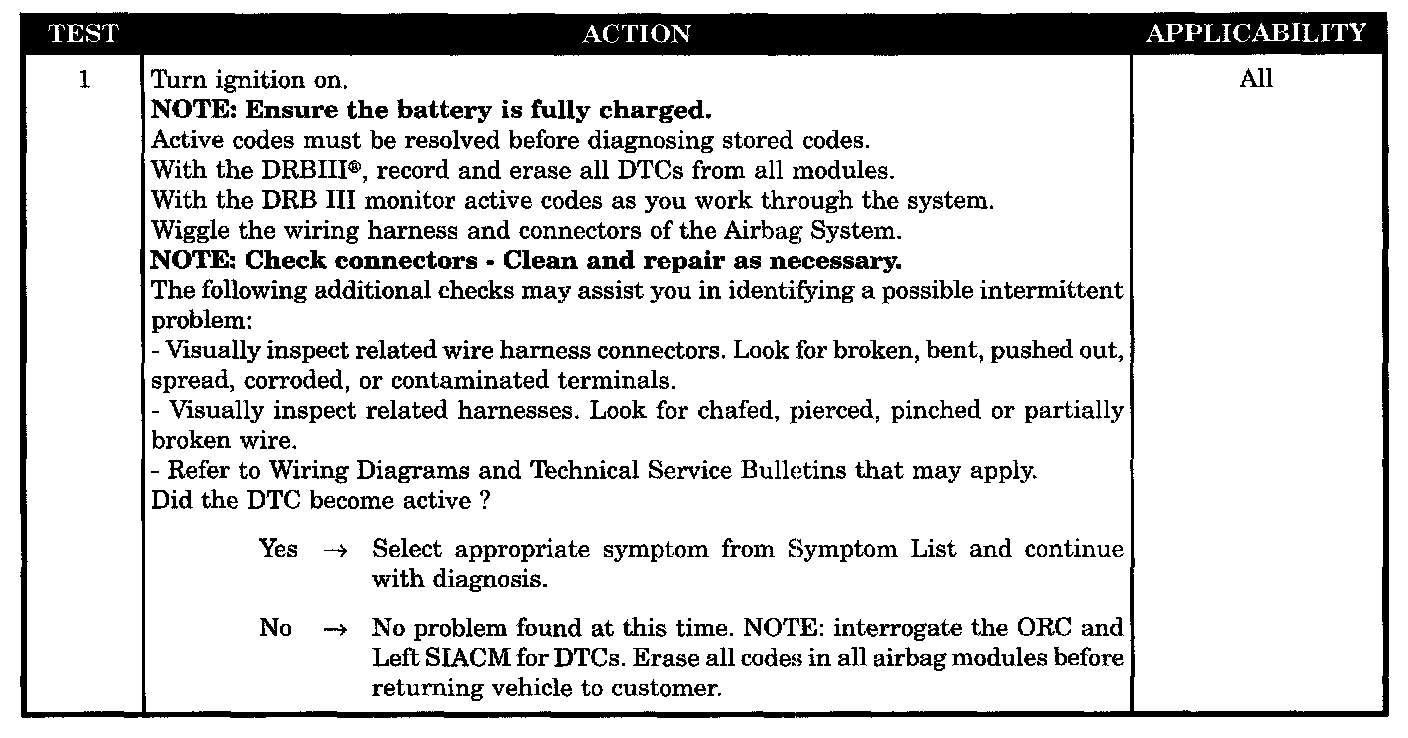

Test 1:

SYMPTOM
RIGHT SIACM, SEAT SQUIB CIRCUIT SHORT - STORED

TEST NOTE
This symptom is diagnosed using the ACM, INTERROGATE RIGHT SIACM - STORED.

WHEN MONITORED
When the ignition is ON, the Right SIACM monitors the resistance of the Right Seat Squib circuits.

SET CONDITION
The Right SIACM has detected that the Right Seat Squib circuits are shorted together.

POSSIBLE CAUSES
- Checking for active right SIACM DTCS
- Stored code present
