Right SIACM Seat Squib Circuit Open (Active)

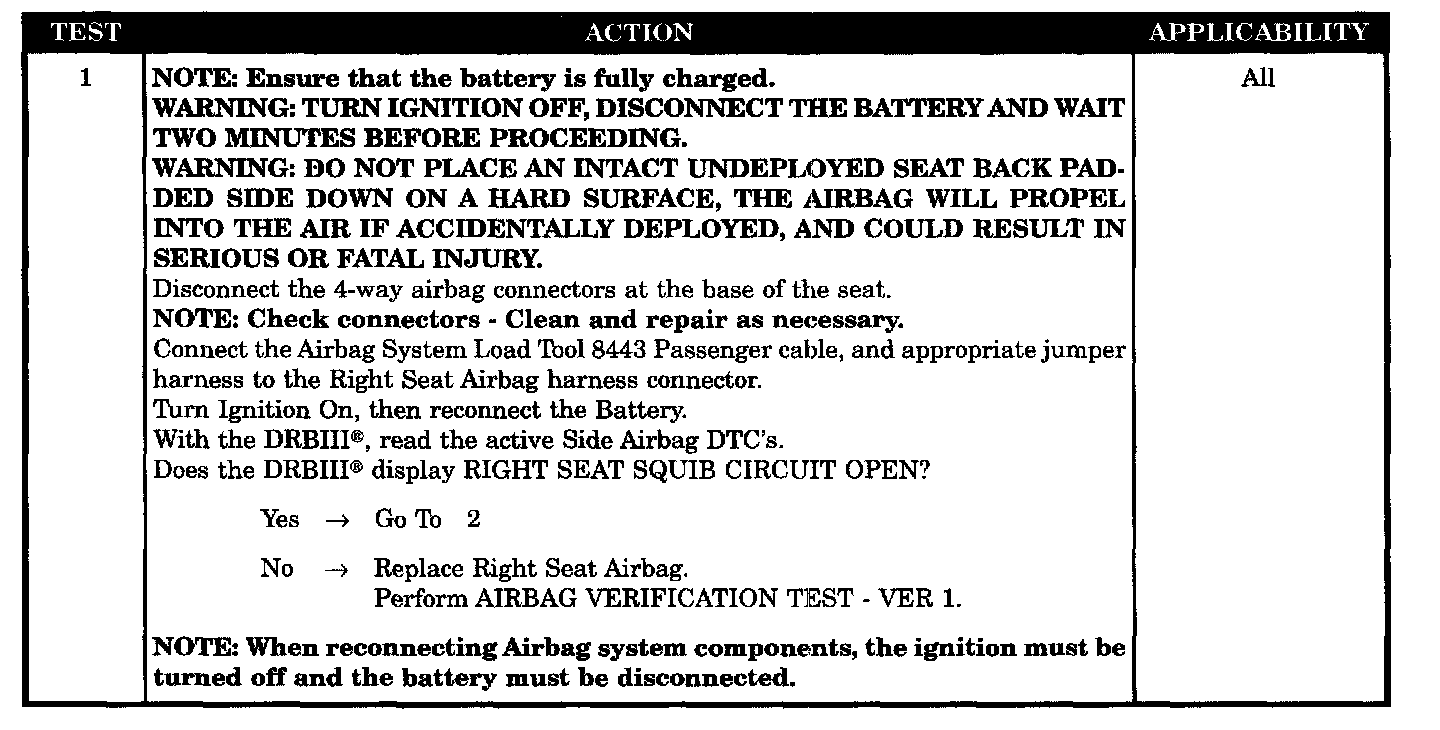

Test 1:

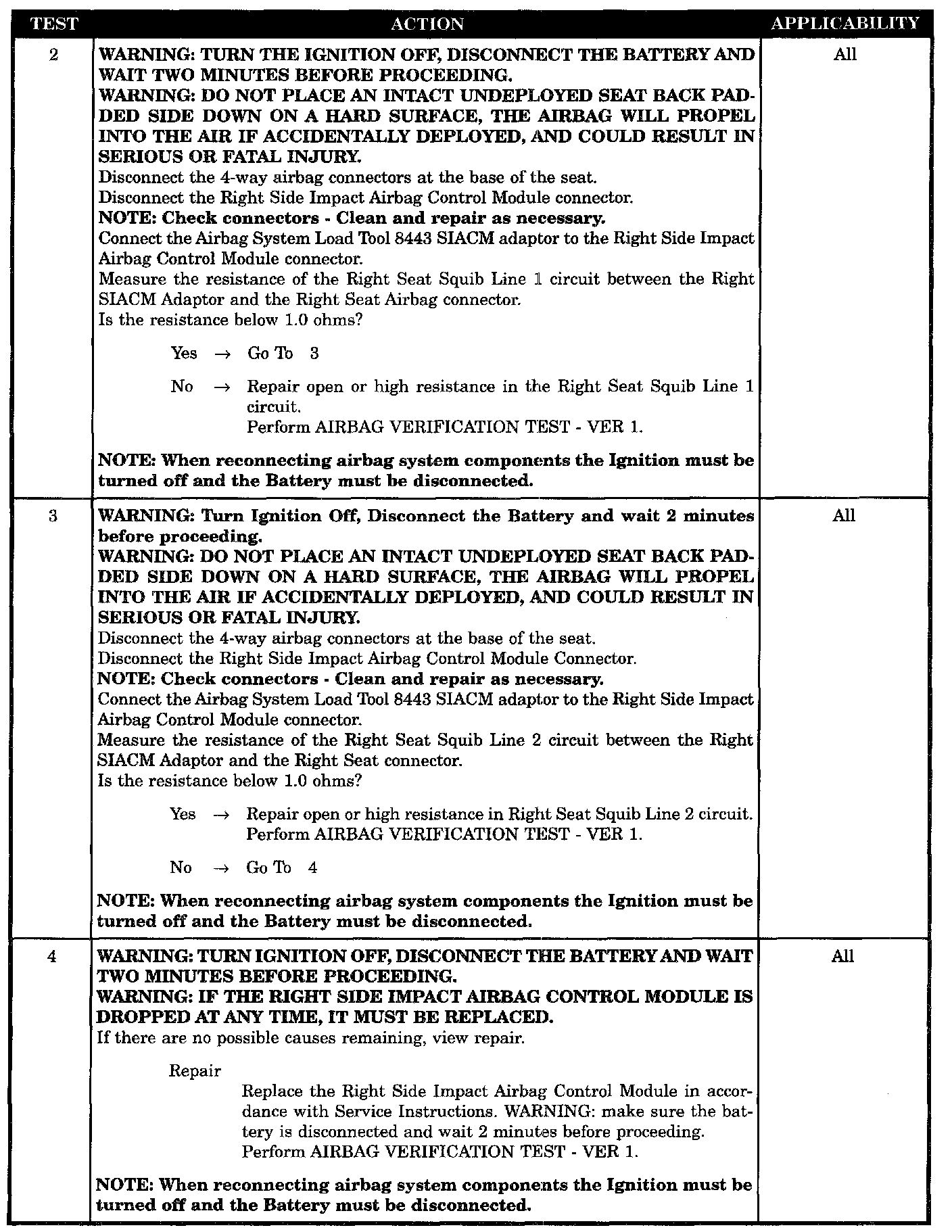

Tests 2 - 4:

SYMPTOM
RIGHT SIACM, SEAT SQUIB CIRCUIT OPEN - ACTIVE

WHEN MONITORED
With the ignition is ON, the Right SIACM monitors the resistance of the Right Seat Squib circuits.

SET CONDITION
The Right SIACM has detected an open circuit or high resistance on the Right Seat Squib circuits.

POSSIBLE CAUSES
- Right seat airbag open
- Right seat squib line 1 circuit open
- right seat squib line 2 circuit open
- RSIACM, Right seat squib circuit open
