Left SIACM Seat Squib Shorted to Ground (Active)

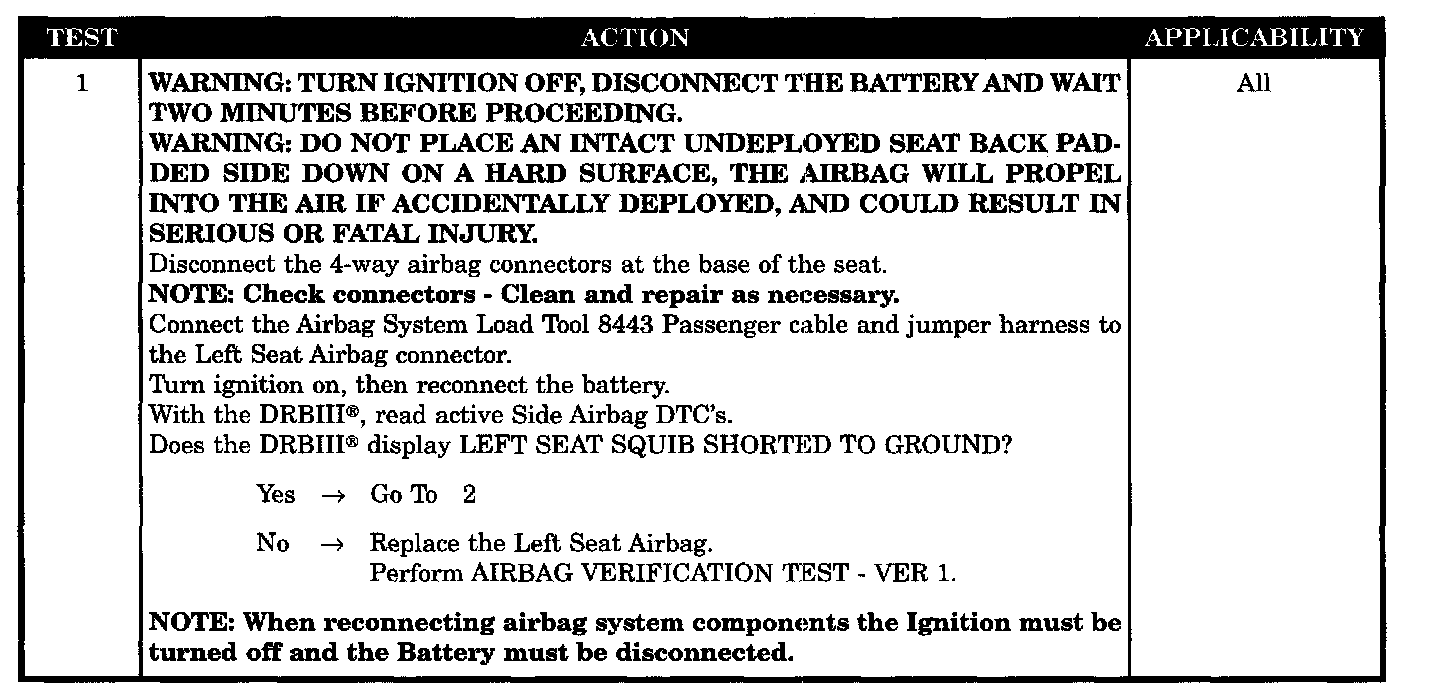

Test 1:

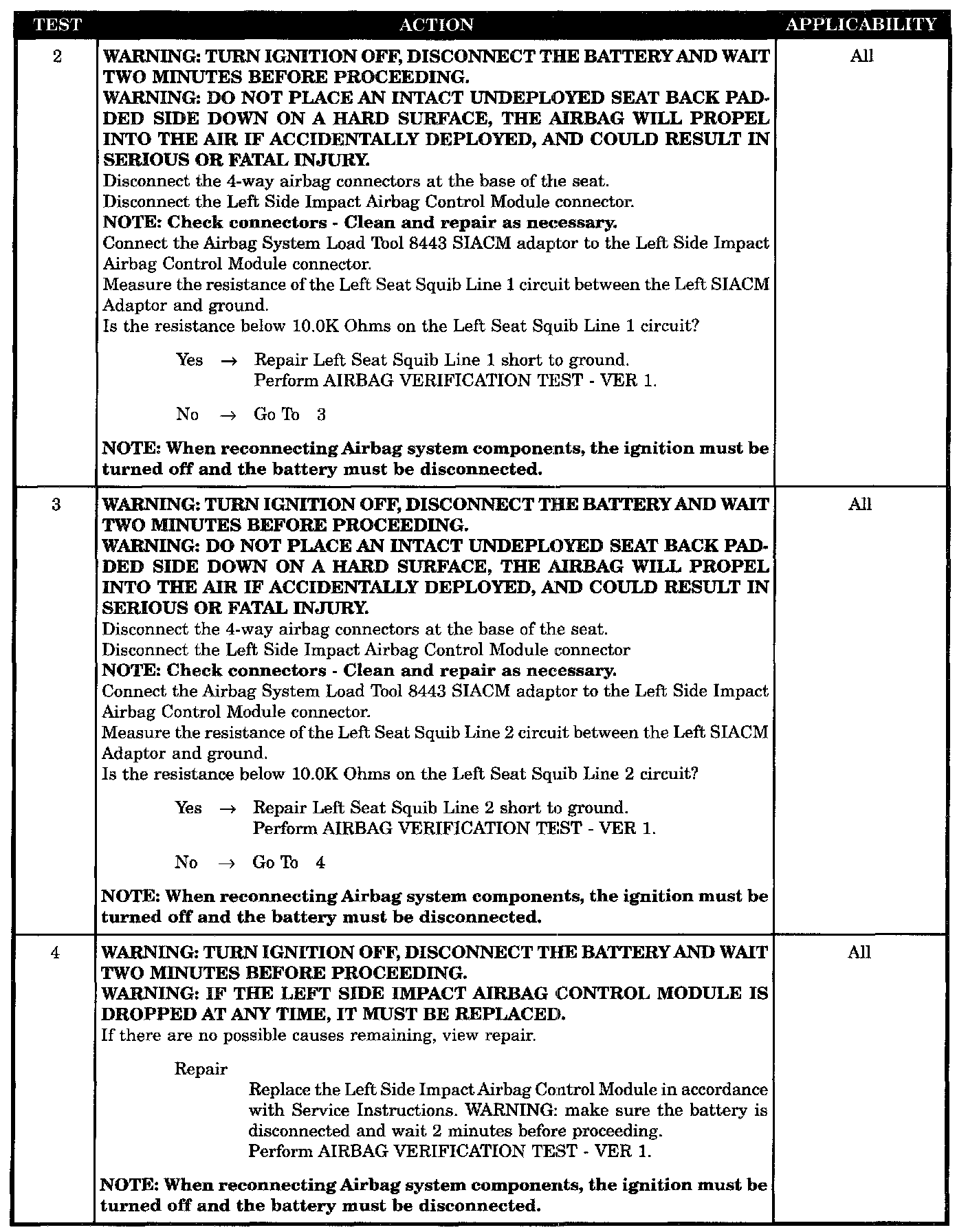

Tests 2 - 4:

SYMPTOM
LEFT SIACM, SEAT SQUIB SHORT TO GROUND - ACTIVE

WHEN MONITORED
When the ignition is ON, the Left SIACM monitors the resistance of the left Seat Squib circuits for low resistance.

SET CONDITION
The Left SIACM has detected a short to ground in the left Seat Squib circuits.

POSSIBLE CAUSES
- Left seat airbag short to ground
- Left seat squib line 1 short to ground
- Left seat squib line 2 short to ground
- LSIACM, Left seat squib circuit short to ground
