Left SIACM Seat Squib Circuit Shorted (Active)

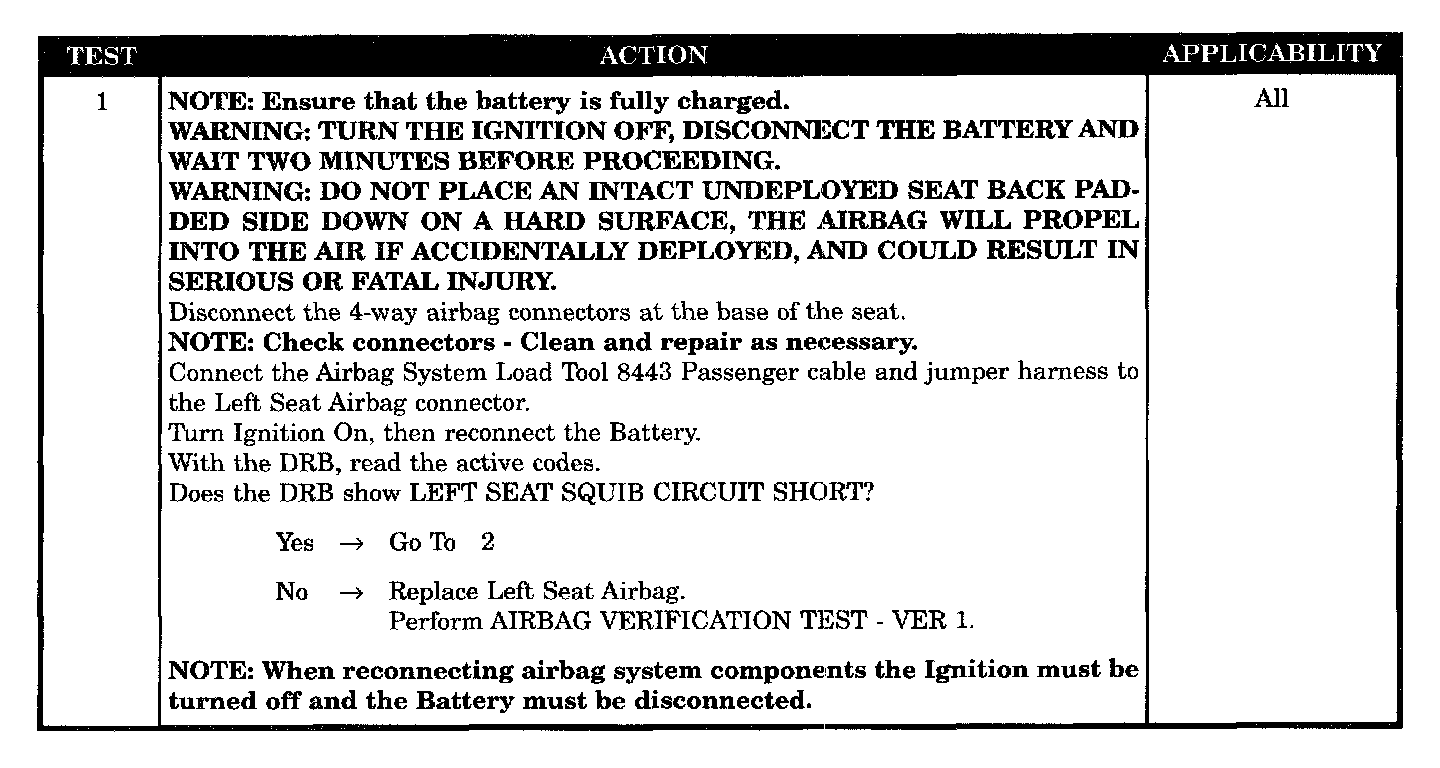

Test 1:

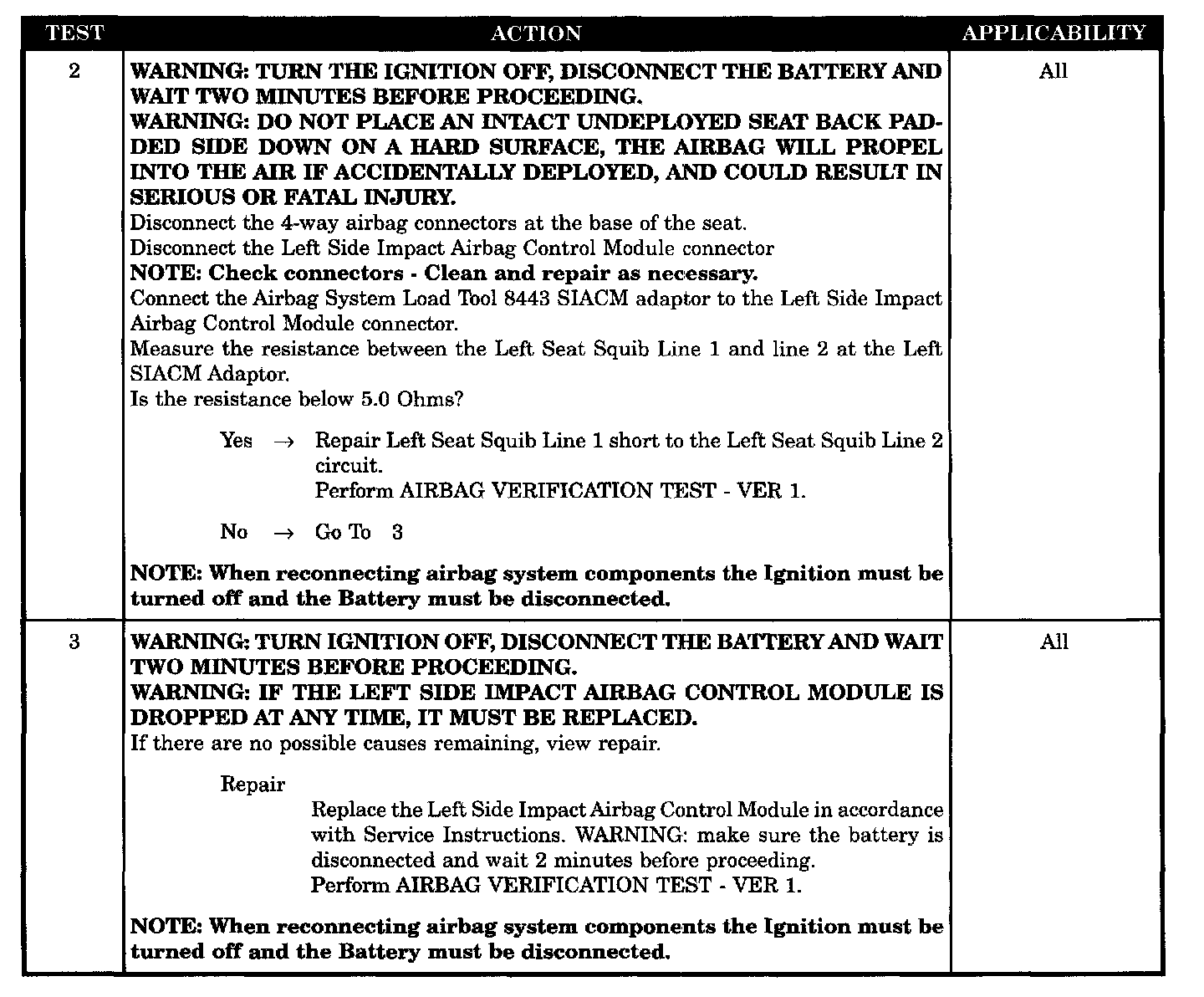

Tests 2 - 3:

SYMPTOM
LEFT SIACM, SEAT SQUIB CIRCUIT SHORT- ACTIVE

WHEN MONITORED
When the ignition is ON, the Left SIACM monitors the resistance of the Left Seat Squib circuits.

SET CONDITION
The Left SIACM has detected low resistance in the Left Seat Squib circuits.

POSSIBLE CAUSES
- Left seat airbag short
- Left seat squib line 1 short to line 2
- SIACM, left seat squib circuit short
