Left SIACM No PCI Transmission (Stored)

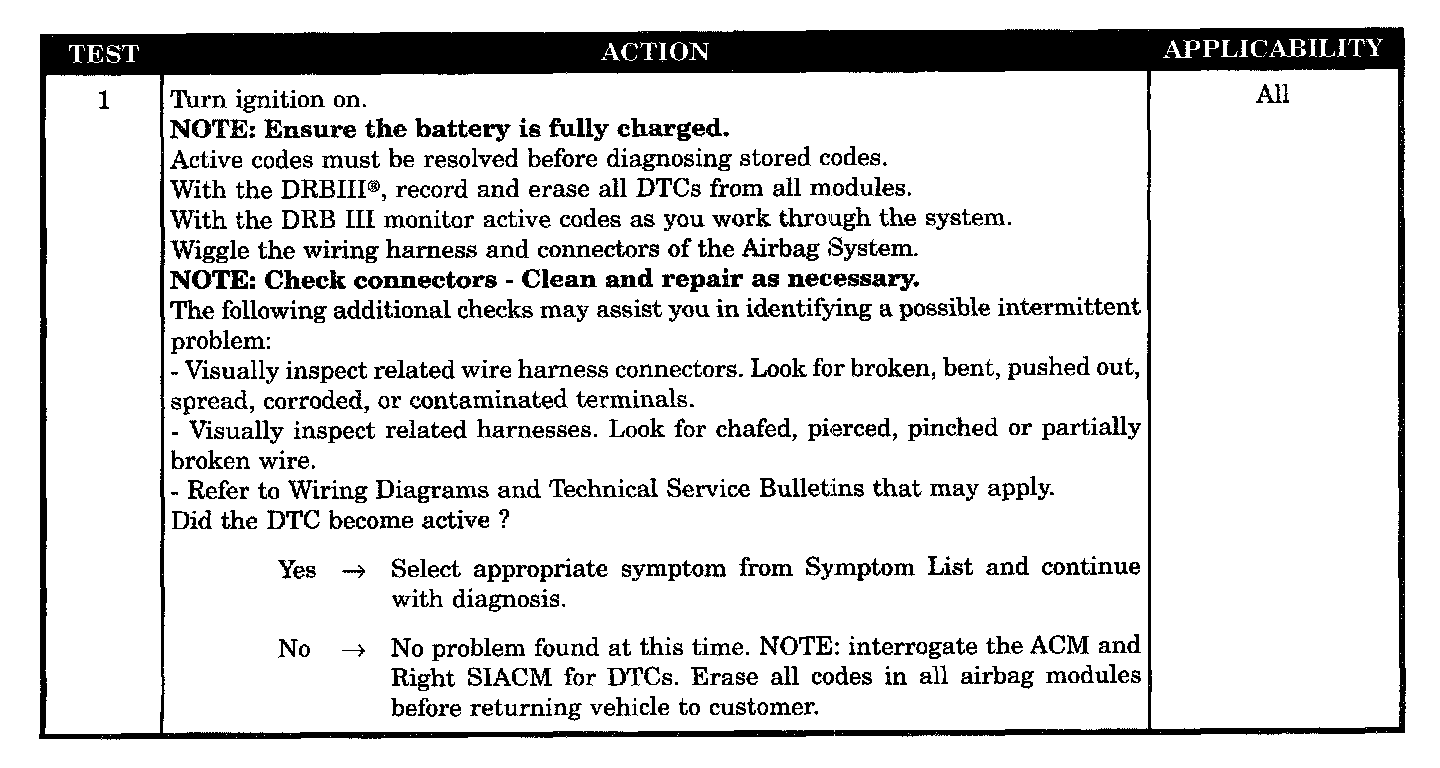

Test 1:

SYMPTOM
LEFT SIACM, NO PCI TRANSMISSION - STORED

TEST NOTE
This symptom is diagnosed using the test ACM, INTERROGATE LEFT SIACM - STORED.

WHEN MONITORED
With the ignition in the ON position and the ACM transmitting information on the PCI BUS.

SET CONDITION
The code will set if the ACM cannot detect the ACM transmitting information on the PCI BUS for 5 consecutive seconds. NOTE: Any PCI Bus Failure will cause this code to set.

POSSIBLE CAUSES
- Checking for active left SIACM DTCS
- Stored code present
