ACM Passenger Squib Shorted to Battery (Stored)

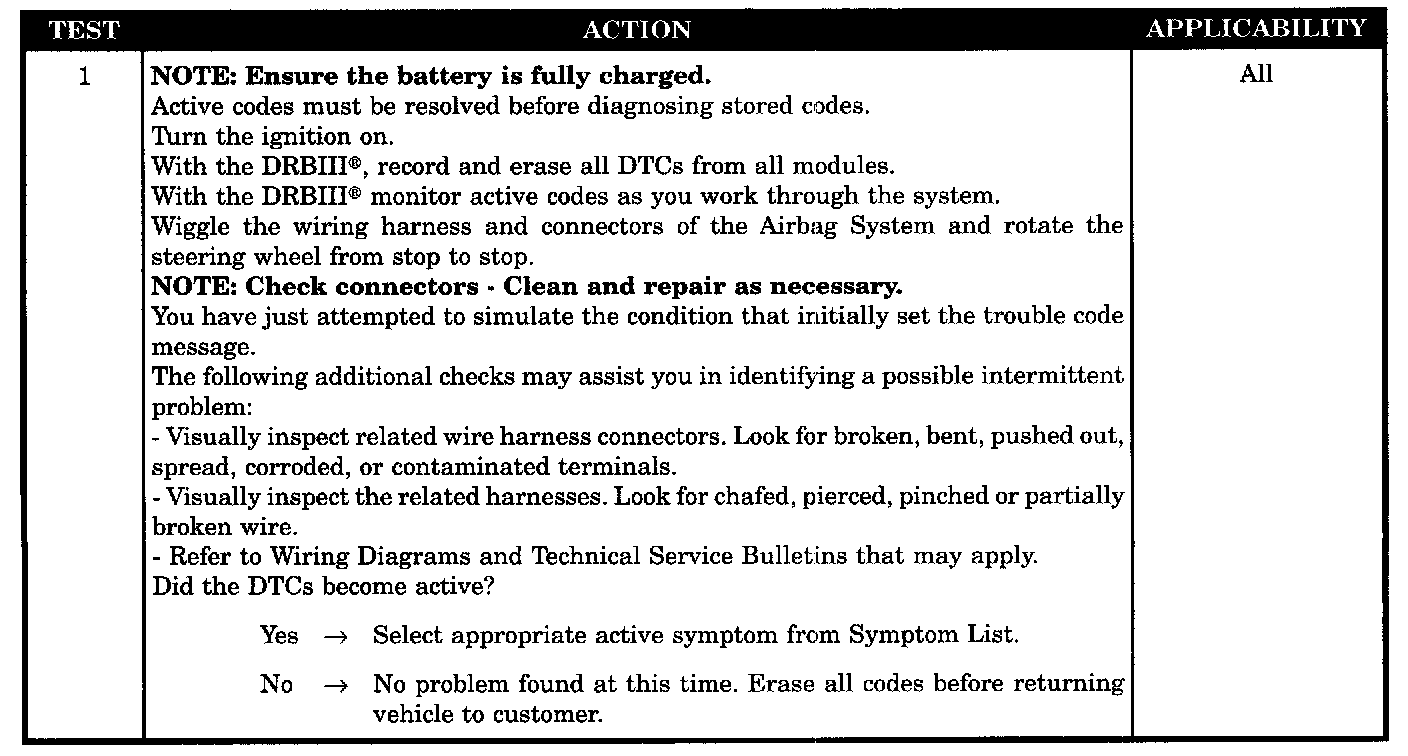

Test 1:

SYMPTOM
ACM, PASSENGER SQUIB SHORT TO BATTERY - STORED

TEST NOTE
This symptom is diagnosed using the test ACM, CLUSTER MESSAGE MISMATCH - STORED.

WHEN MONITORED
When the ignition is ON, the ACM monitors the voltage of the Passenger Squib circuits.

SET CONDITION
The code will set if the ACM detects any voltage on the Passenger Squib circuits.

POSSIBLE CAUSES
- Active or stored code present
- Stored code or intermittent condition
