ACM No Right SIACM Messages (Active)

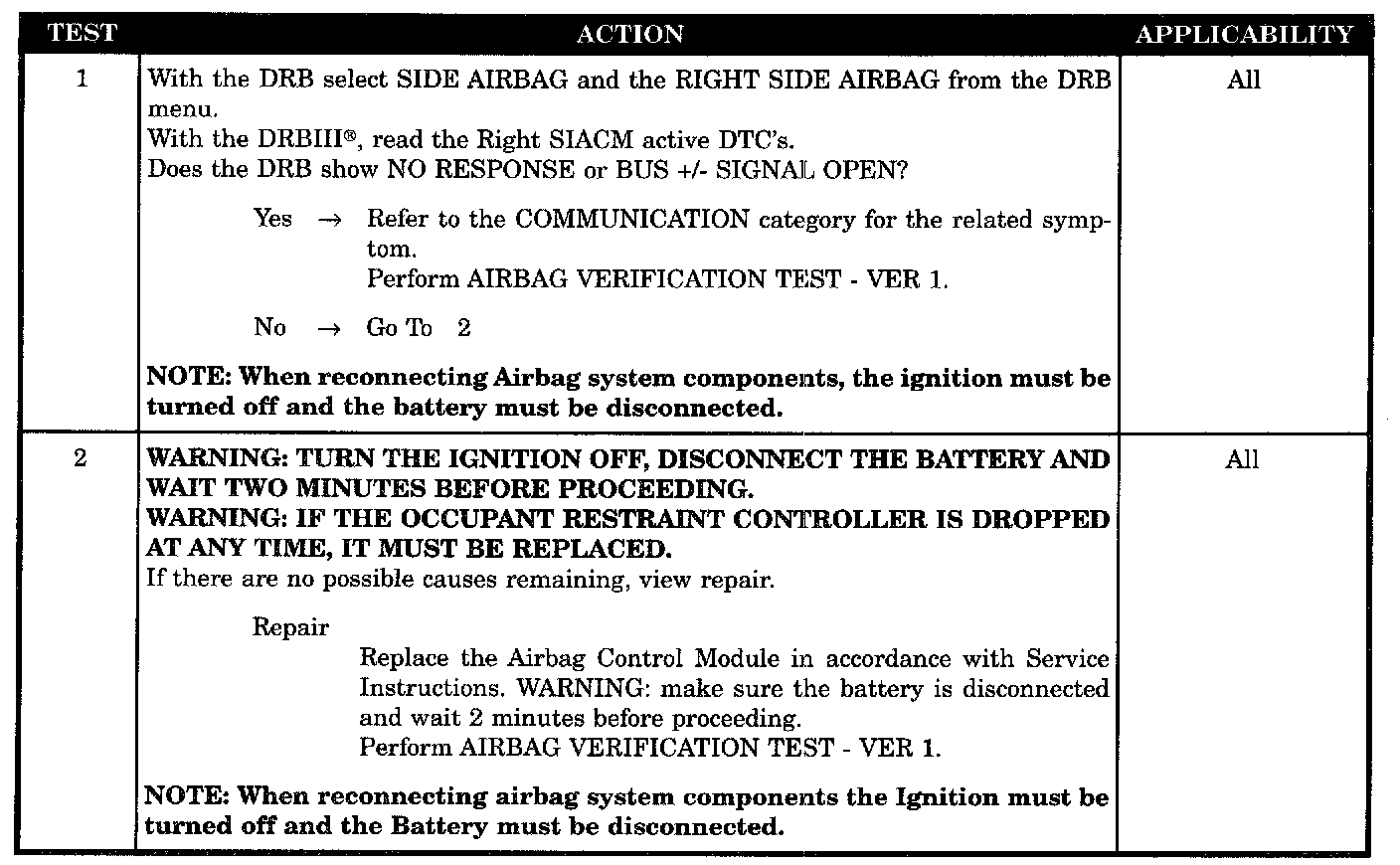

Tests 1 - 2:

SYMPTOM
ACM, NO RIGHT SIACM MESSAGE (ACTIVE)

WHEN MONITORED
With ignition ON, the ORC monitors the PCI Bus for the Right Side Impact Airbag Control Module status message. The Right SIACM transmits the status message to the ORC at 1 second intervals.

SET CONDITION
If the ORC fails to see the Right SIACM status message on the PCI Bus for 5 seconds the code will set.

POSSIBLE CAUSES
- No right SIACM message
- ACM, No right SIACM message
