Home >> Chrysler >> 2001 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Instrument Cluster >> Rear Fog Lamp Indicator Inoperative - BUX Only

Rear Fog Lamp Indicator Inoperative - BUX Only

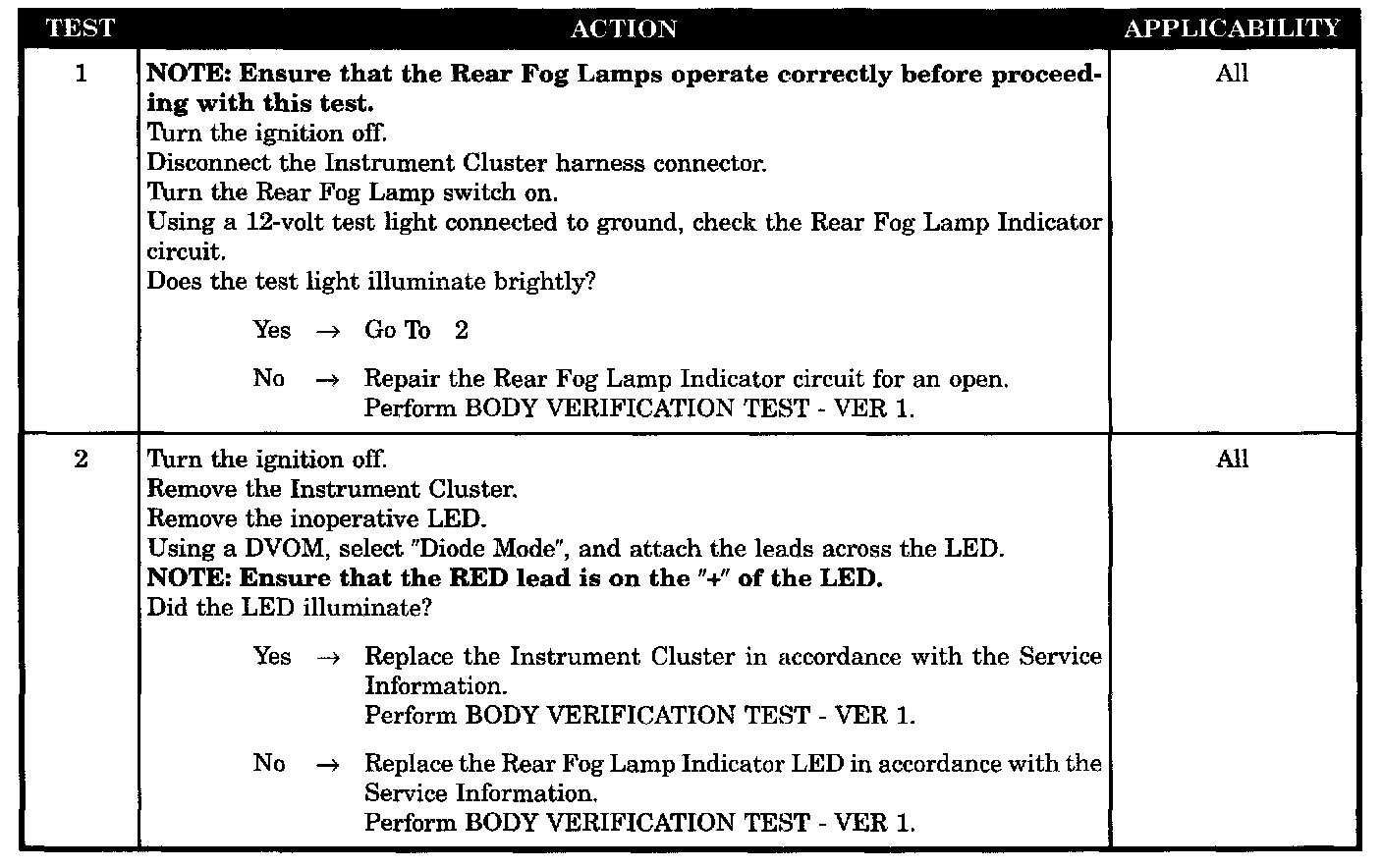

Tests 1 - 2:




SYMPTOM
REAR FOG LAMP INDICATOR INOPERATIVE - BUX ONLY

POSSIBLE CAUSES
- Rear fog lamp indicator circuit open
- Indicator LED
- Instrument cluster
