Instrument Cluster Dimming Inoperative

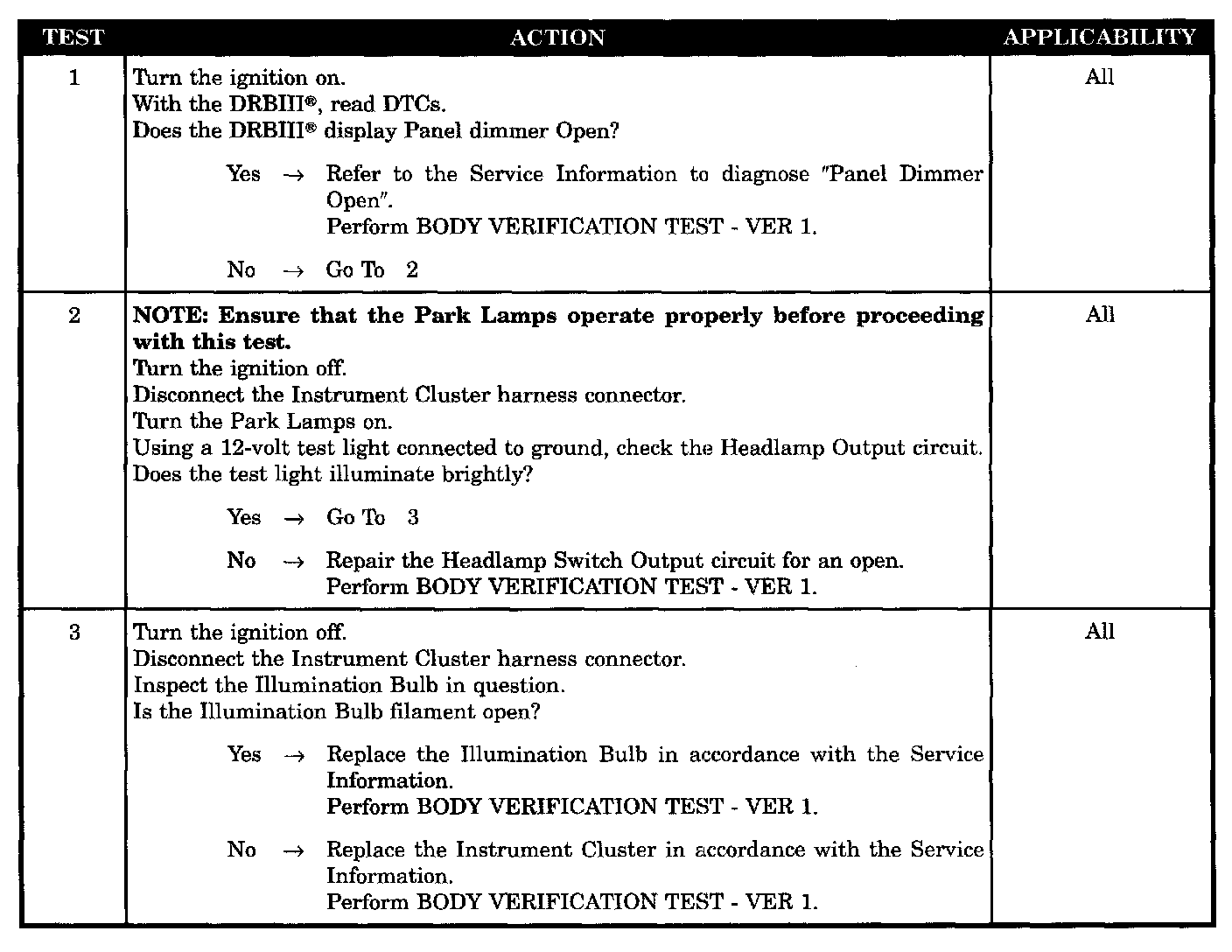

Tests 1 - 3:




SYMPTOM
INSTRUMENT CLUSTER DIMMING INOPERATIVE

POSSIBLE CAUSES
- Check for MIC DTC
- Headlamp switch output circuit open
- Illumination bulb
- Instrument cluster
