Home >> Chrysler >> 2001 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Exterior Lighting >> Low Beam Headlamps Will Not Turn Off

Low Beam Headlamps Will Not Turn Off

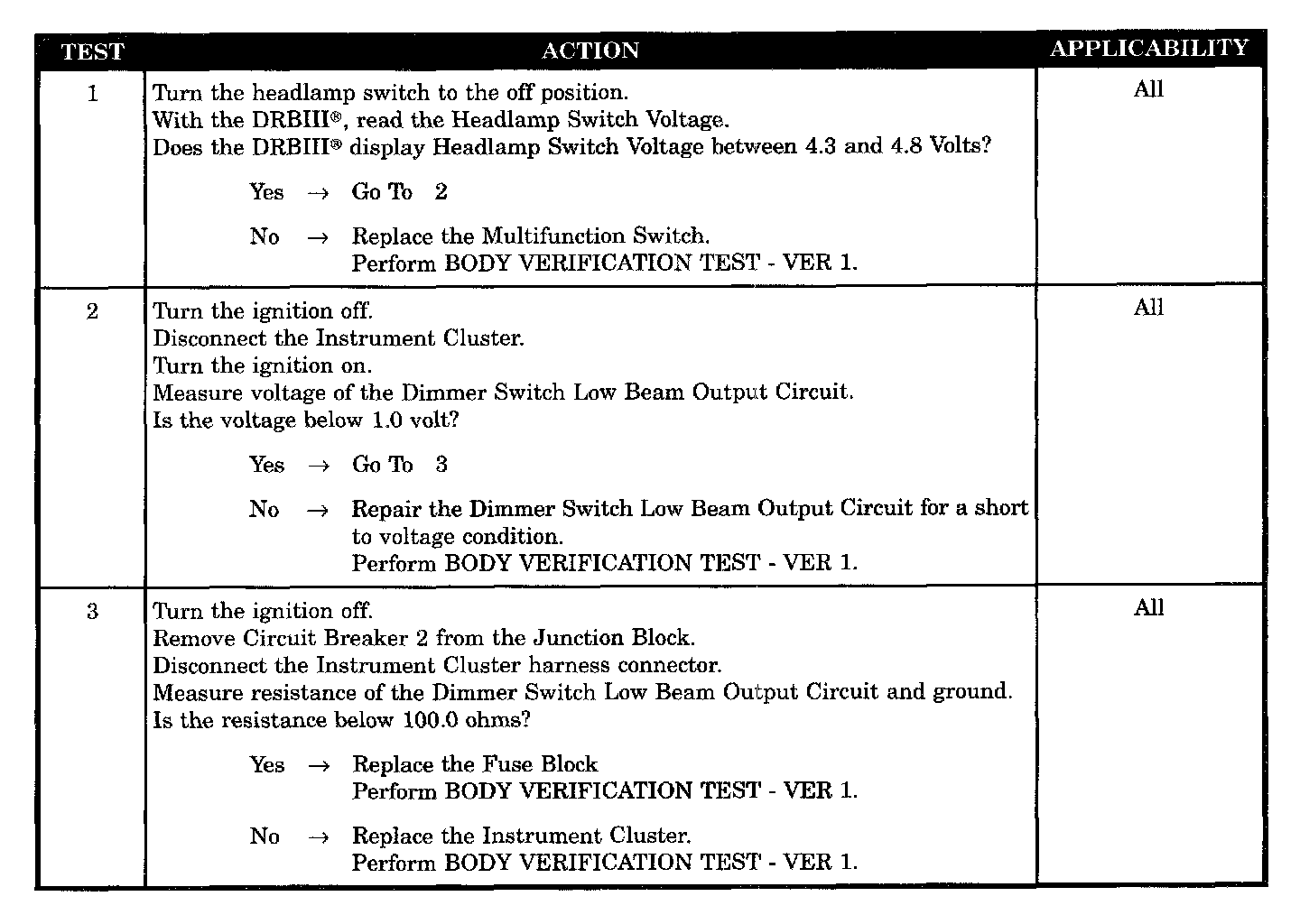

Tests 1 - 3:




SYMPTOM
LOW BEAM HEADLAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Multifunction switch
- Dimmer switch low beam output circuit short to voltage
- Fuse block
- Instrument cluster
