Bus (+/-) Signals Open/No Response From SKIM

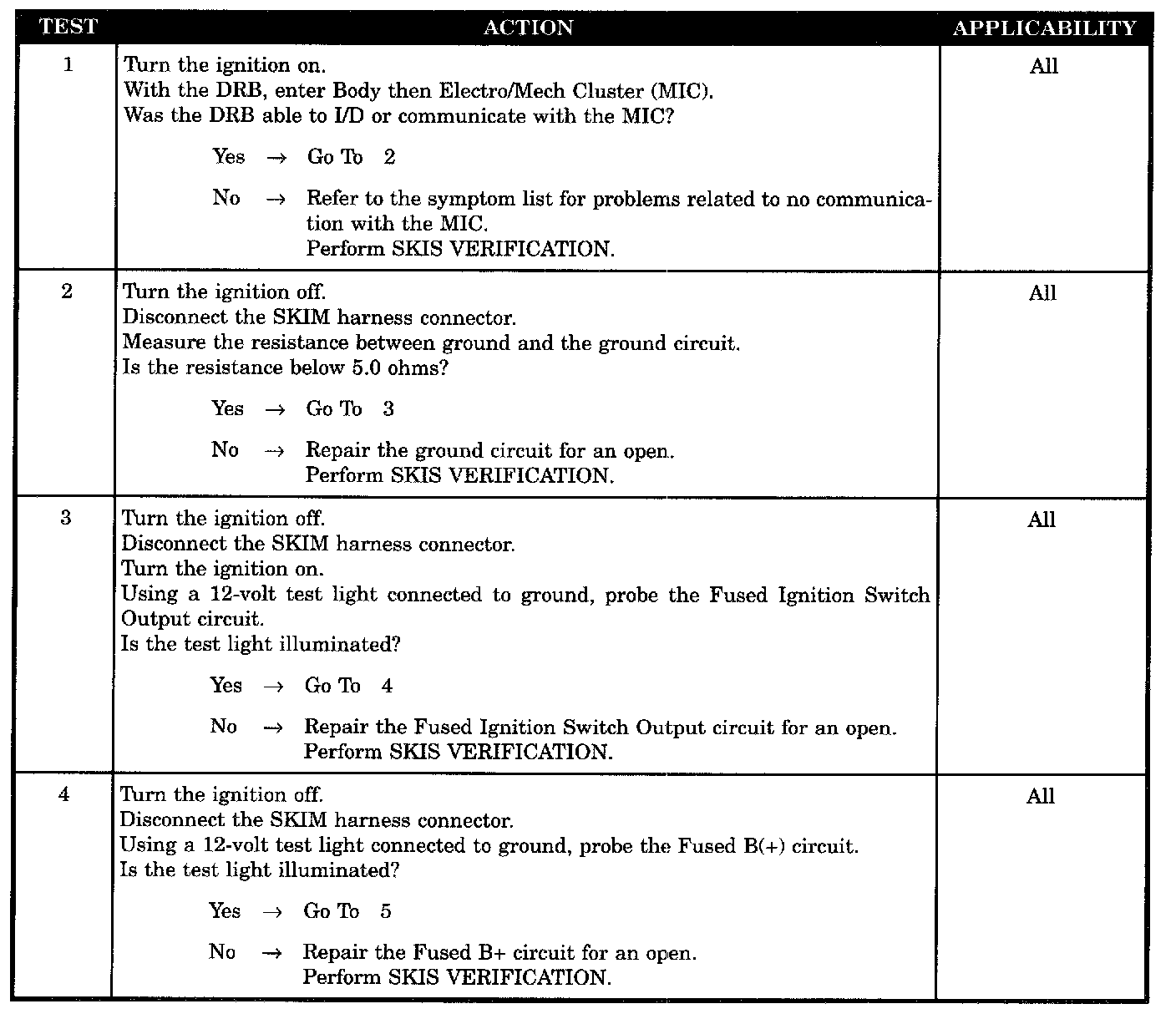

Tests 1 - 4:

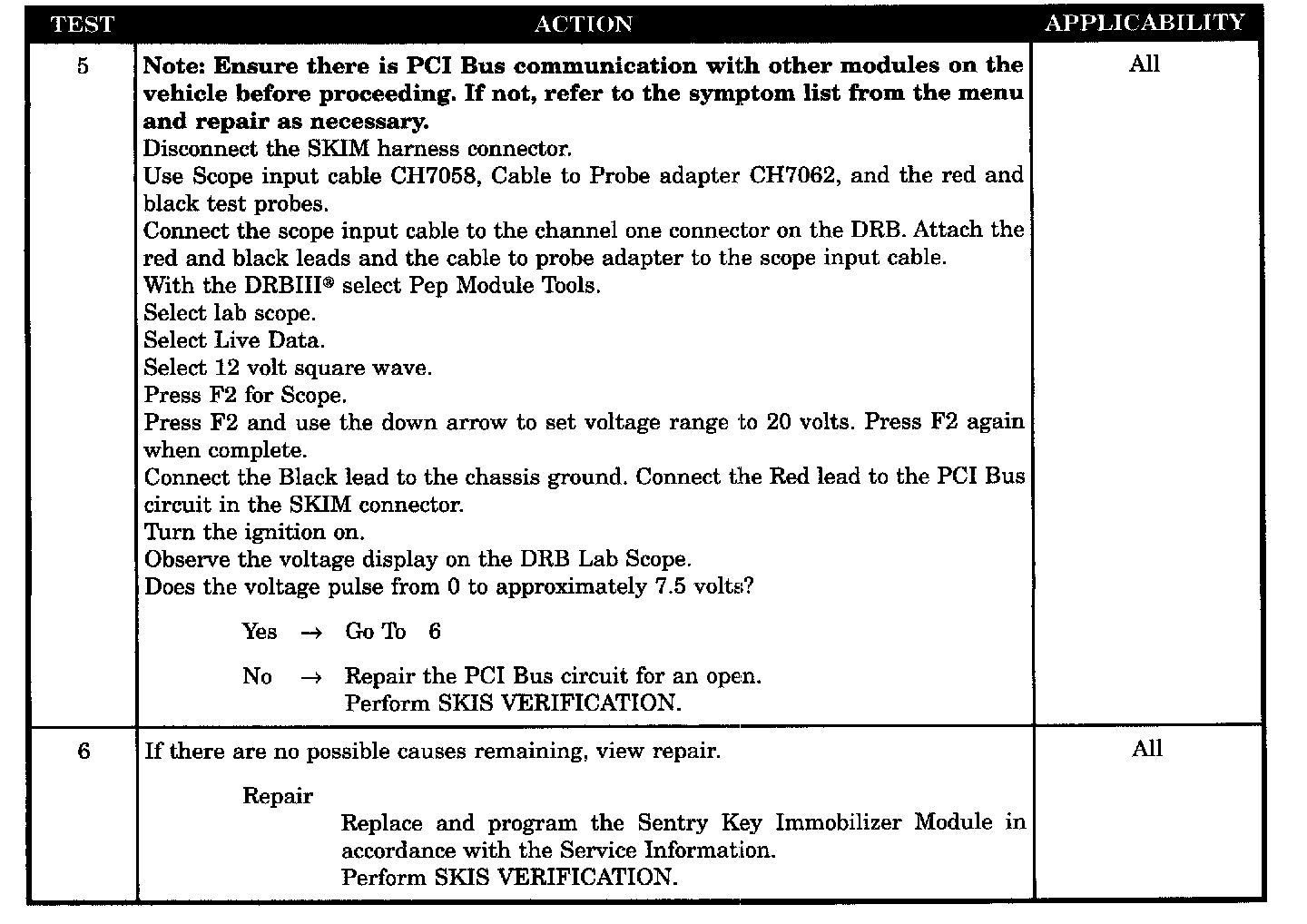

Tests 5 - 6:

SYMPTOM
BUS +/- SIGNALS OPEN OR NO RESPONSE FROM SENTRY KEY IMMOBILIZER MODULE

POSSIBLE CAUSES
- Attempt to communicate with the MIC
- Ground circuit open
- Fused ignition switch output circuit open
- Fused B(+) circuit open
- Open PCI bus circuit
- Sentry key immobilizer module
