Right Rear Sensor Circuit Failure

Symptom:
RR SENSOR CIRCUIT FAILURE

When Monitored and Set Condition:
RR SENSOR CIRCUIT FAILURE

When Monitored: Ignition on. The CAB monitors the wheel speed circuit every 7 milliseconds (ms).

Set Condition: If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.

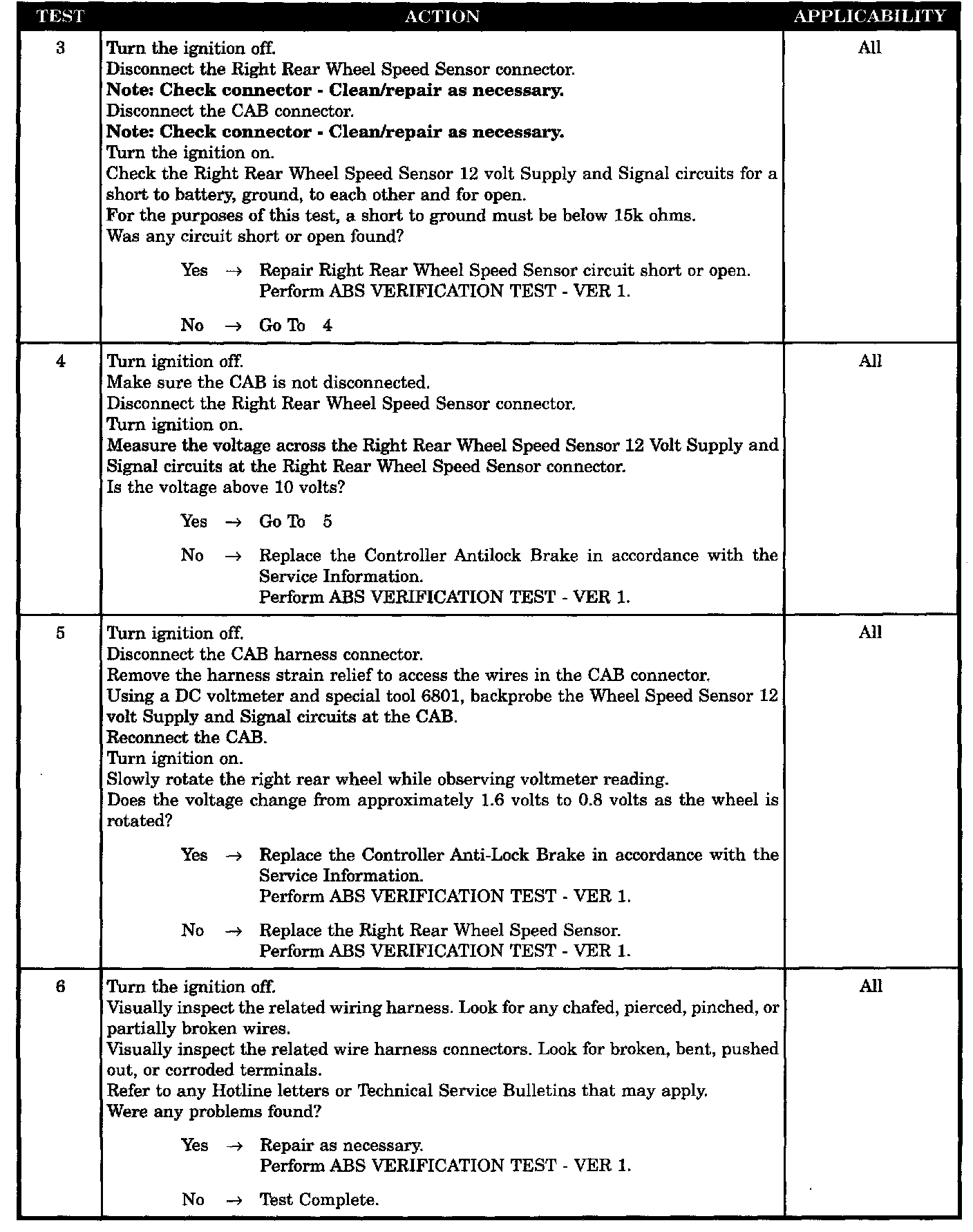

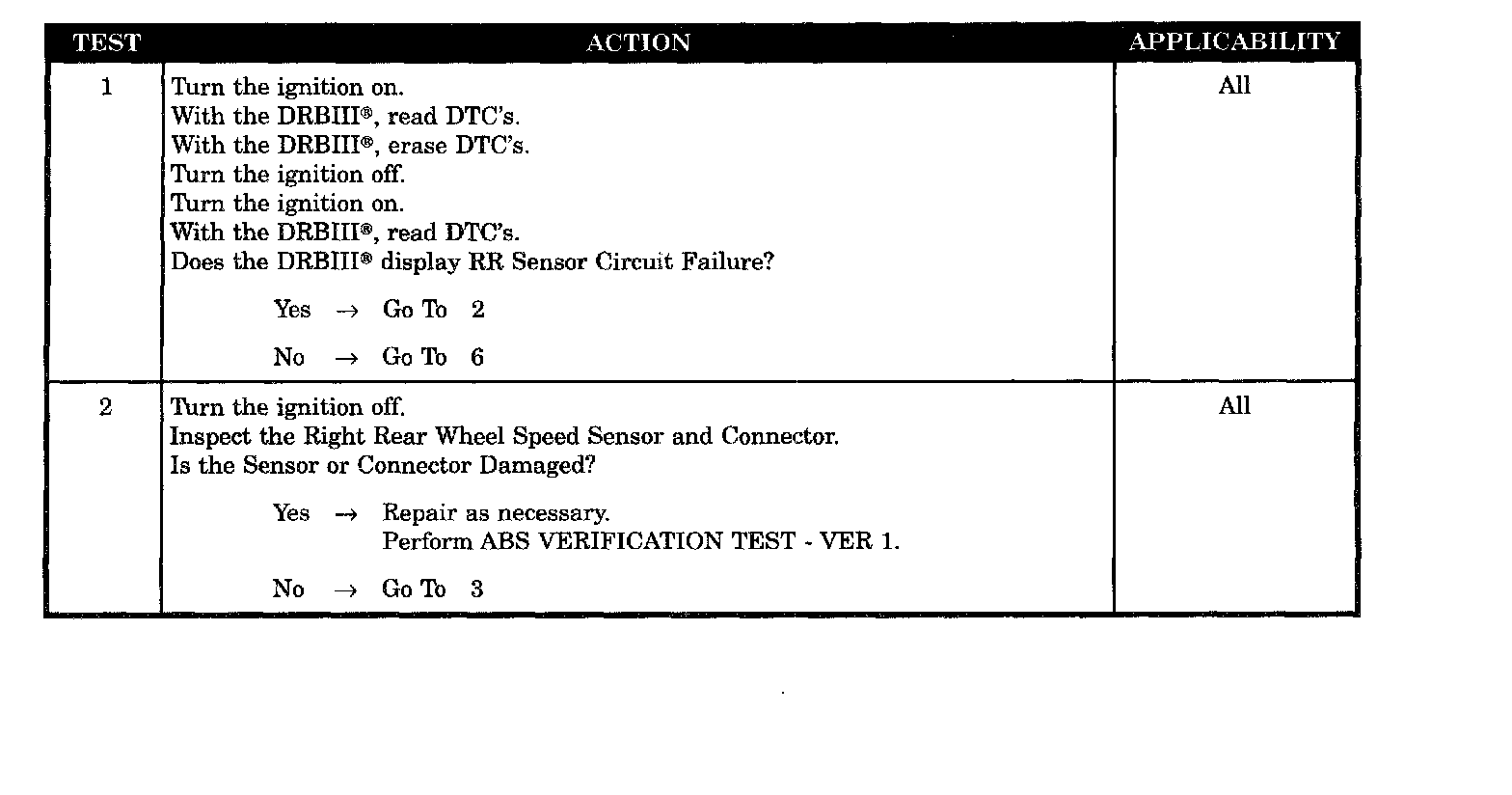

POSSIBLE CAUSES
RIGHT REAR WHEEL SPEED SENSOR OR CONNECTOR DAMAGE
RIGHT REAR WHEEL SPEED SENSOR CIRCUITS SHORTED OR OPEN
CAB-NO OUTPUT
RIGHT REAR WHEEL SPEED SENSOR -- NO OUTPUT
CAB - UNABLE TO READ RIGHT REAR WHEEL SPEED SENSOR SIGNAL
INTERMITTENT CIRCUIT DTC
