Right Front Sensor Signal Failure

Symptom:
RF WHEEL SPEED/ SIGNAL FAILURE

When Monitored and Set Condition:
RF WHEEL SPEED/ SIGNAL FAILURE

When Monitored: Wheel speed comparison is checked at drive off or every 7 milliseconds (ms). Wheel speed continuity is checked every 7 milliseconds. Wheel speed phase length supervision is checked every 7 milliseconds.

Set Condition: If, during an ABS stop, the CAB commands any valve solenoid on for an extended length of time, and does not see a corresponding wheel speed change, the Diagnostic Trouble Code (DTC) is set. The DTC can also set if the signal is missing or erratic.

POSSIBLE CAUSES

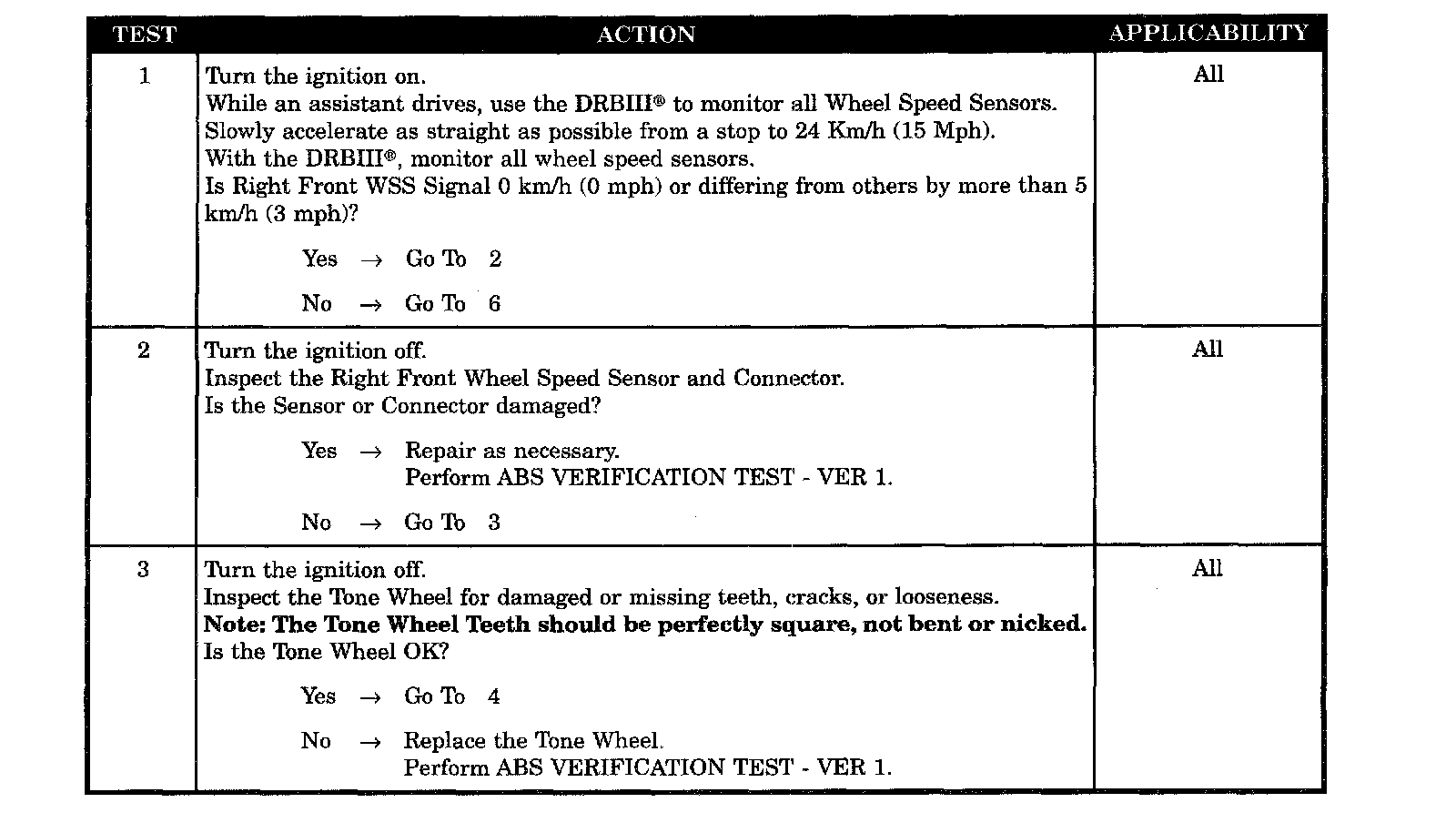

RIGHT FRONT WHEEL SPEED SENSOR OR CONNECTOR DAMAGED
TONE WHEEL DAMAGED

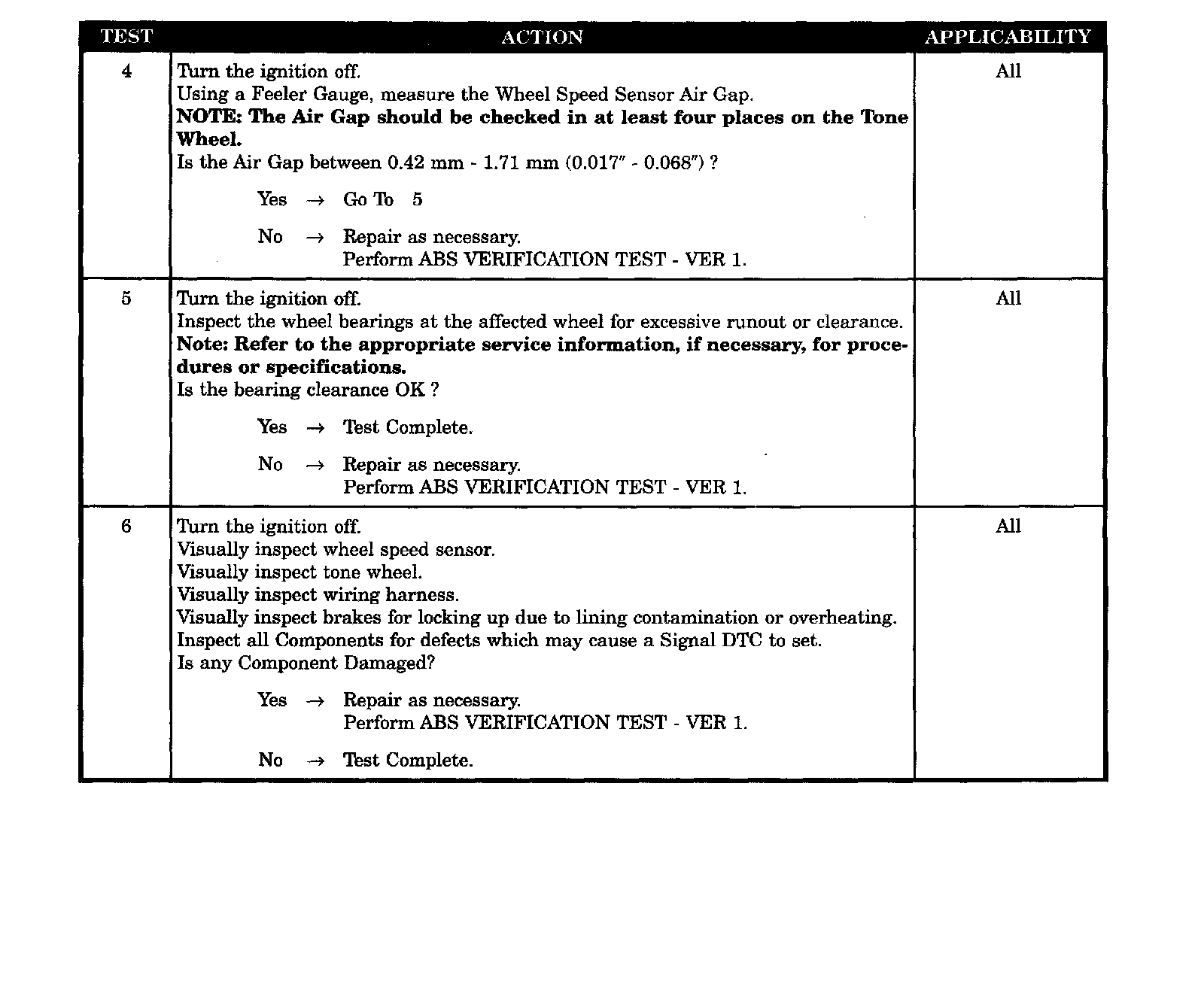

RIGHT FRONT WHEEL SPEED SENSOR AIR GAP OUT OF SPECIFICATION
WHEEL BEARINGS OUT OF SPECIFICATION
INTERMITTENT SIGNAL DTC
