Left Front Wheel Speed Signal Failure

Symptom:
LF WHEEL SPEED/ SIGNAL FAILURE

When Monitored and Set Condition:
LF WHEEL SPEED/ SIGNAL FAILURE

When Monitored: Wheel speed comparison is checked at drive off or every 7 milliseconds (ms). Sensor circuit continuity is checked every 7 milliseconds. Wheel speed phase length supervision is checked every 7 milliseconds.

Set Condition: If, during an ABS stop, the CAB commands any valve solenoid on for an extended length of time, and does not see a corresponding wheel speed change, the Diagnostic Trouble Code (DTC) is set. The DTC can also set if the signal is missing or erratic.

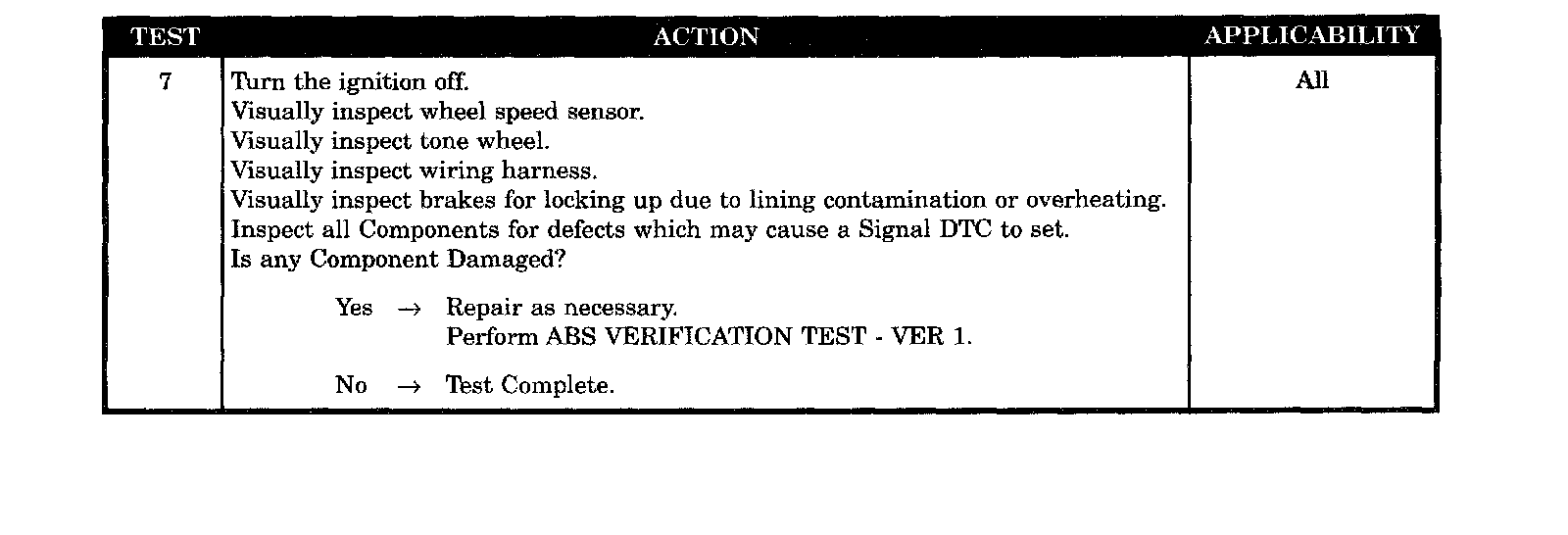

POSSIBLE CAUSES
LEFT FRONT WHEEL SPEED SENSOR OR CONNECTOR DAMAGED
TONE WHEEL DAMAGED
LEFT FRONT WHEEL SPEED SENSOR AIR GAP OUT OF SPECIFICATION
LEFT FRONT WHEEL BEARING OUT OF SPECIFICATION
LEFT FRONT WHEEL SPEED SENSOR INOPERATIVE
CAB - WON'T RESPOND TO LEFT FRONT WHEEL SPEED SENSOR SIGNAL
INTERMITTENT SIGNAL DTC
