Controller Failure

Symptom:
CONTROLLER FAILURE

When Monitored and Set Condition:
CONTROLLER FAILURE

When Monitored: Ignition on. The CAB monitors its internal microprocessors for correct operation.

Set Condition: If the CAB detects an internal fault, the DTC is set.

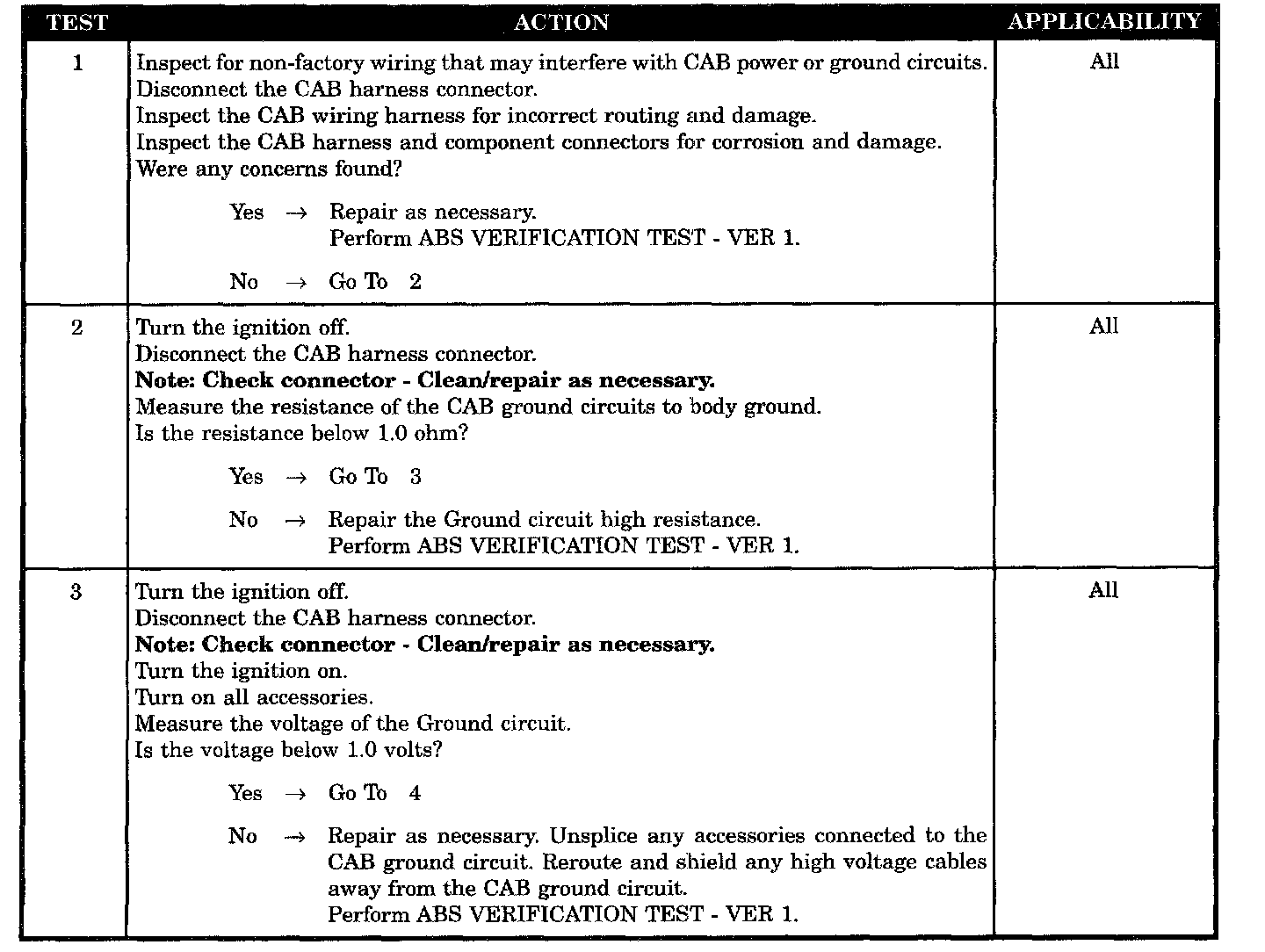

POSSIBLE CAUSES
GROUND AND POWER CONNECTIONS
GROUND CIRCUIT HIGH RESISTANCE
GROUND CIRCUIT INTERFERENCE

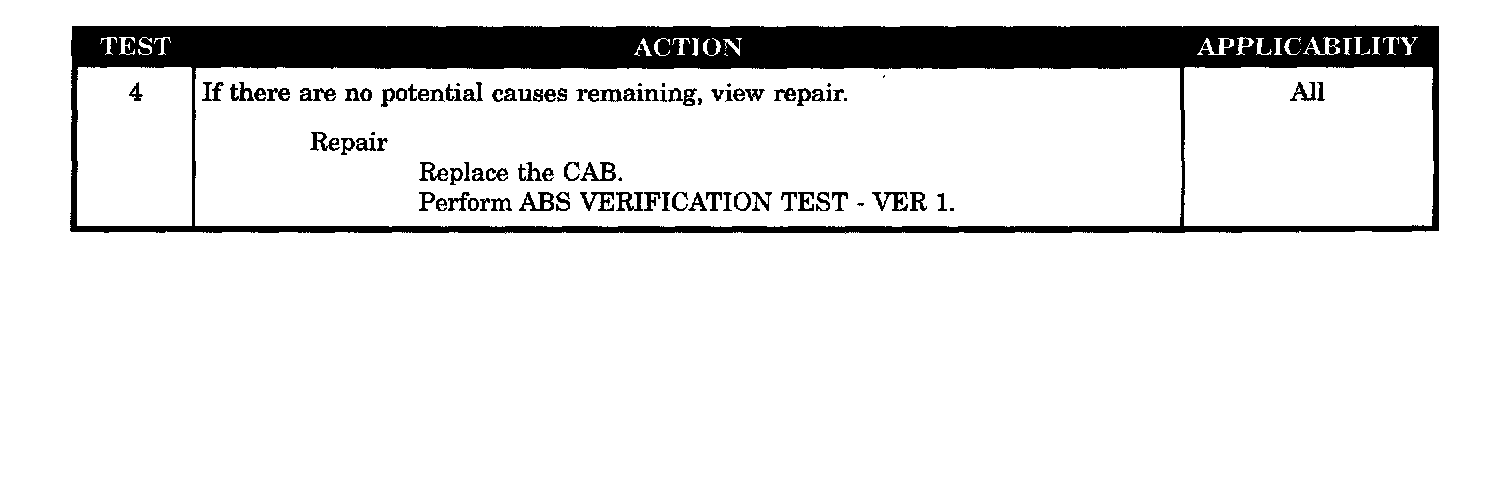

CAB - INTERNAL FAILURE
