Home >> Chrysler >> 2001 >> Intrepid (CANADA) V6-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Horn Switch >> Locations

Horn Switch: Locations

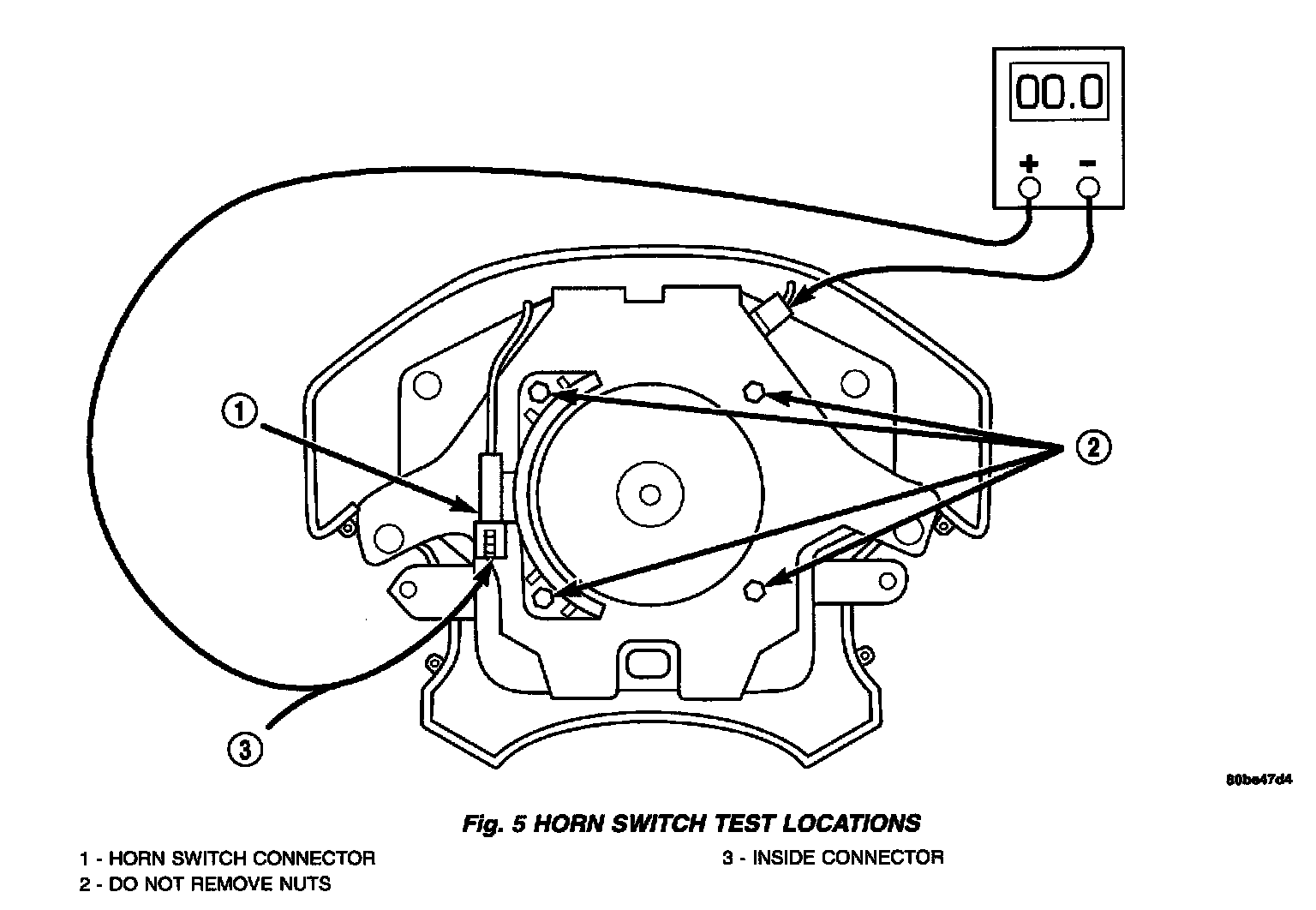

Fig.5 Horn Switch Test Locations:
