Ignition Coil Capacitor Replacement

Fig.11 Coil Capacitor:

Fig.12 Coil Capacitor:

REMOVAL
1. Remove the negative battery cable.

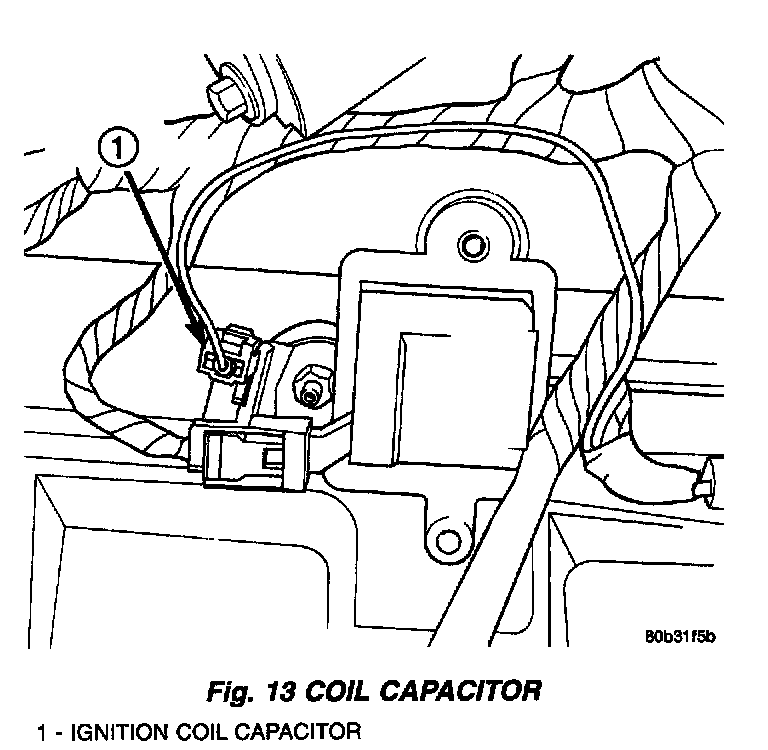

Fig.13 Coil Capacitor:

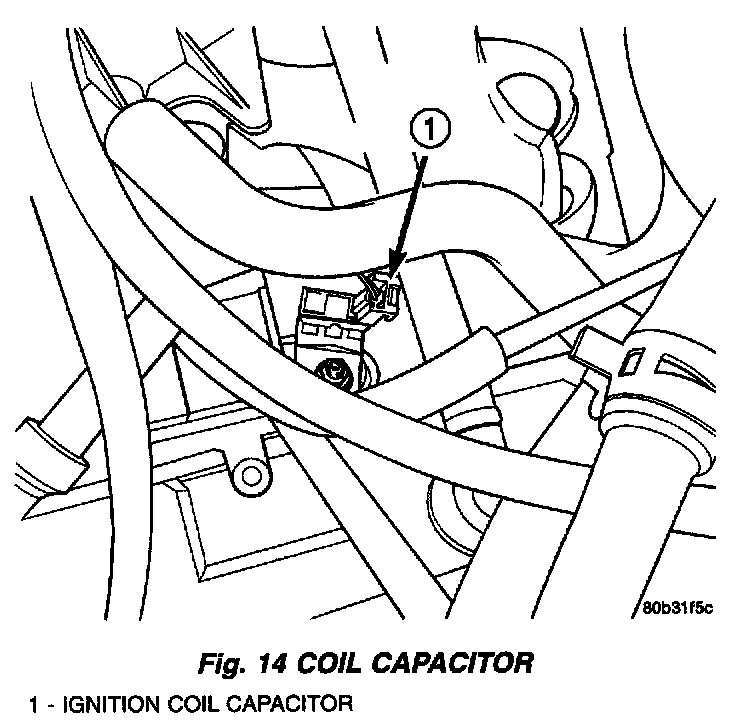

Fig.14 Coil Capacitor:

2. Disconnect the electrical connector.
3. Remove nut and capacitor.

INSTALLATION
1. Install capacitor and tighten nut.
2. Attach electrical connector to capacitor.
3. Install the negative battery cable.
