Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Disconnect the air plenum.

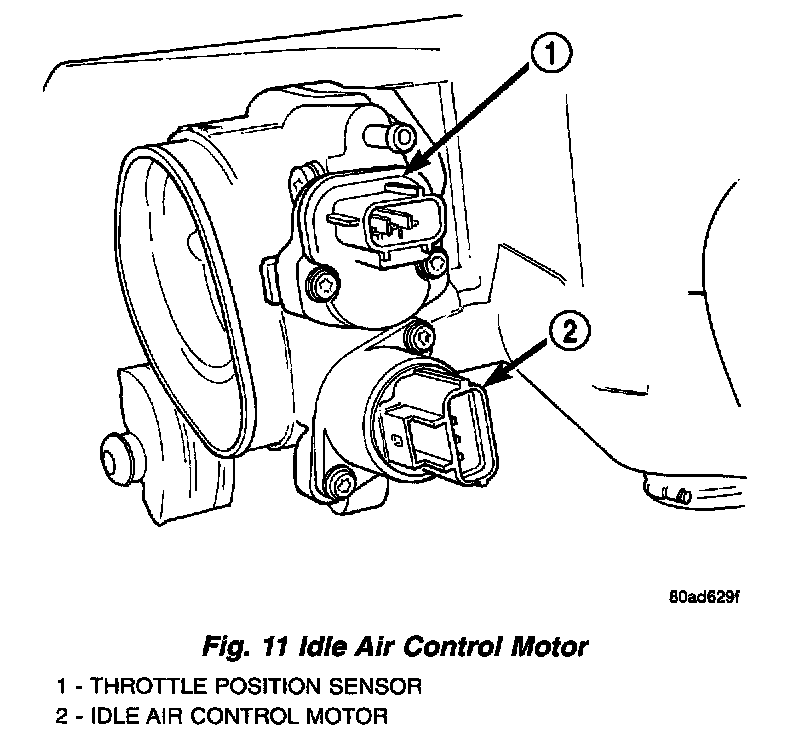

Fig. 11 Idle Air Control Motor:

3. Disconnect the electrical connector.
4. Remove the mounting screws.
5. Remove the IAC.

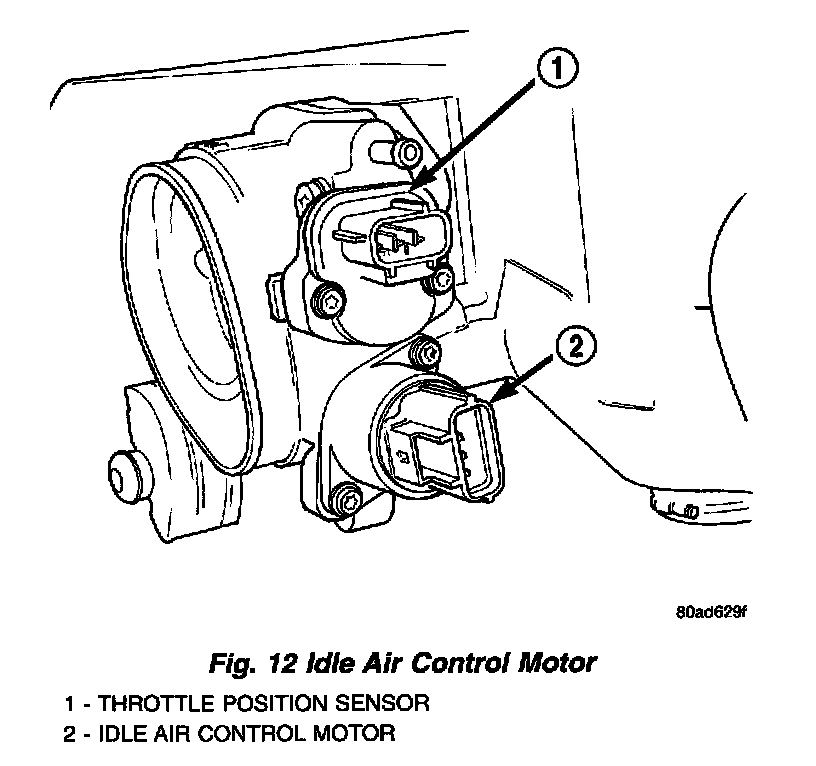

Fig. 12 Idle Air Control Motor:

INSTALLATION
1. Install the IAC to the throttle body.
2. Tighten mounting screws to 6.2 Nm (55 in. lbs.) torque.
3. Attach electrical connector to the IAC.
4. Install air plenum and tighten the clamp.
5. Connect the negative battery cable.
