Radiator Cooling Fan Motor: Service and Repair

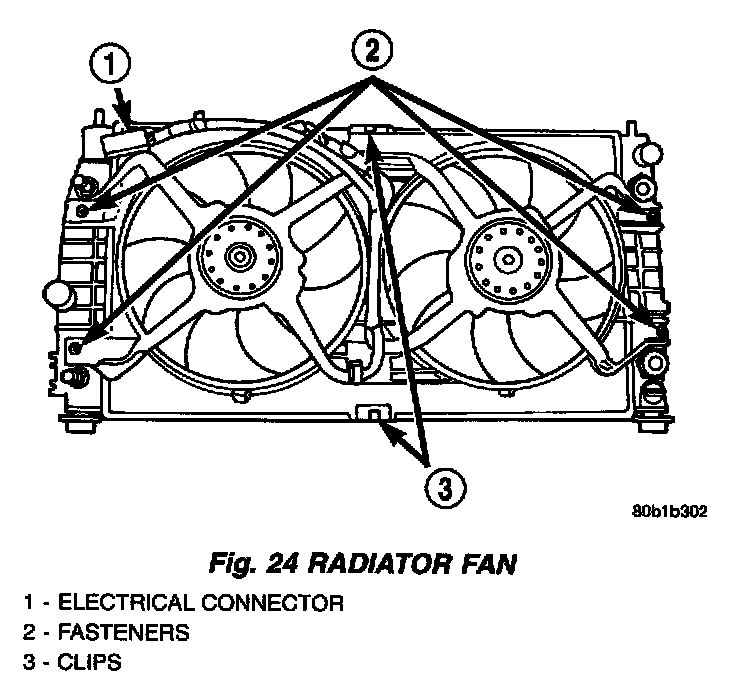

REMOVAL
1. Remove radiator upper crossmember.
2. Disconnect radiator fan motor electrical connector.





3. Remove radiator fan attaching fasteners and clips .
4. Remove radiator fan by lifting upward to clear radiator.

INSTALLATION
1. Install radiator fan.
2. Install mounting clips and fasteners.
3. Connect fan motor electrical connector.
4. Install radiator upper crossmember.
