Backup Lamp: Diagrams
LEFT BACK-UP (300M/BUILT-UP-EXPORT)
LEFT BACK-UP LAMP (CONCORDE)
LEFT BACK-UP LAMP (DODGE)

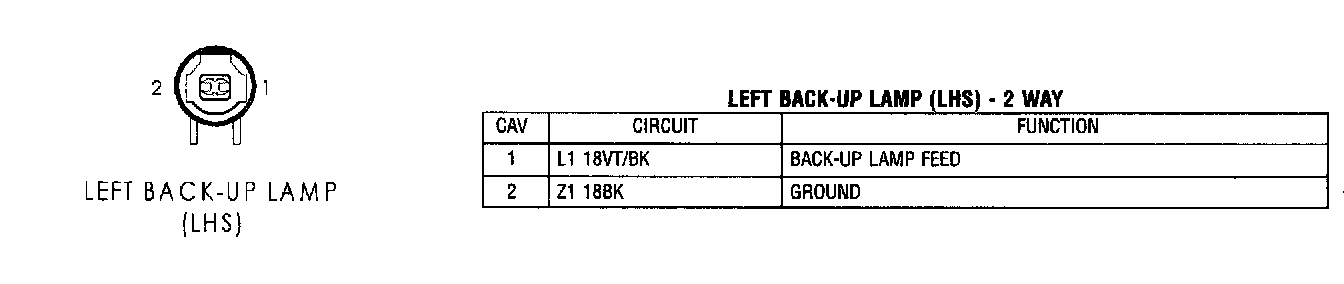

LEFT BACK-UP LAMP (LHS)

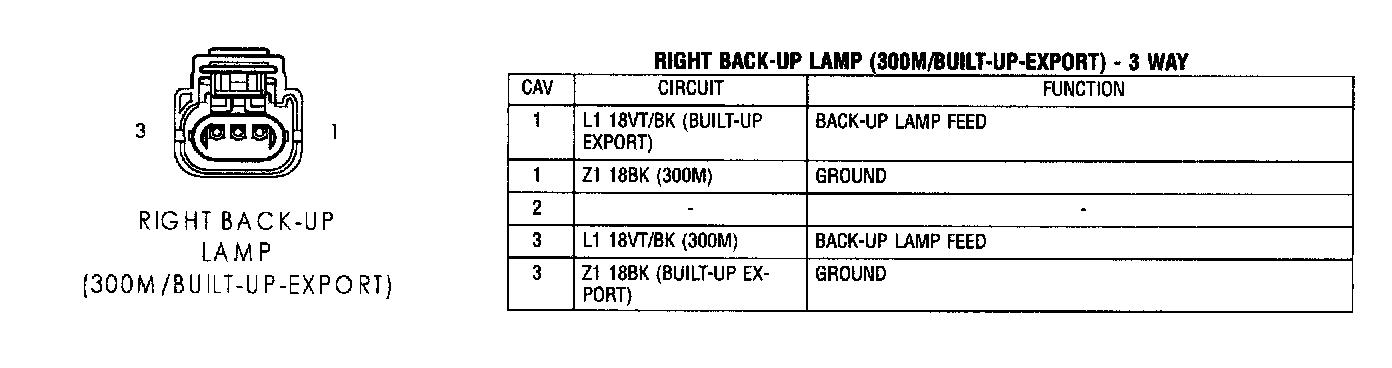

RIGHT BACK-UP LAMP (300M/BUILT-UP-EXPORT)

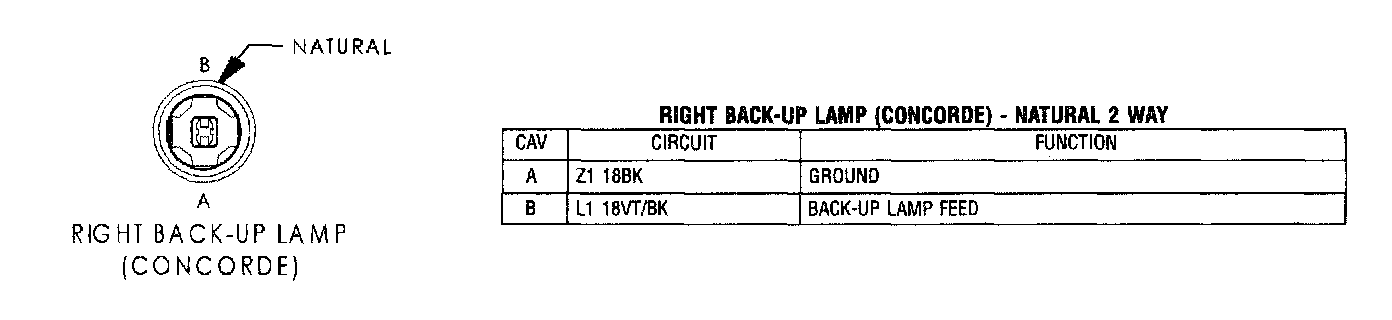

RIGHT BACK-UP LAMP (CONCORDE)

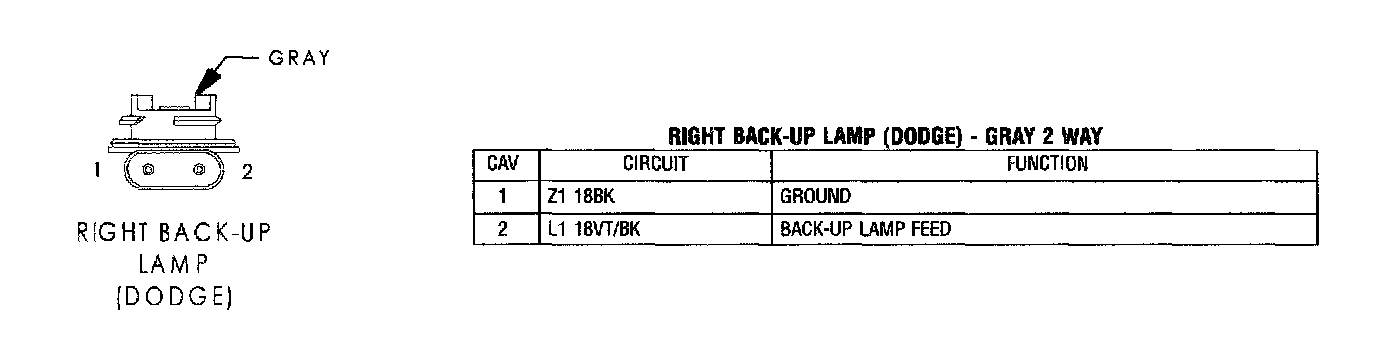

RIGHT BACK-UP LAMP (DODGE)

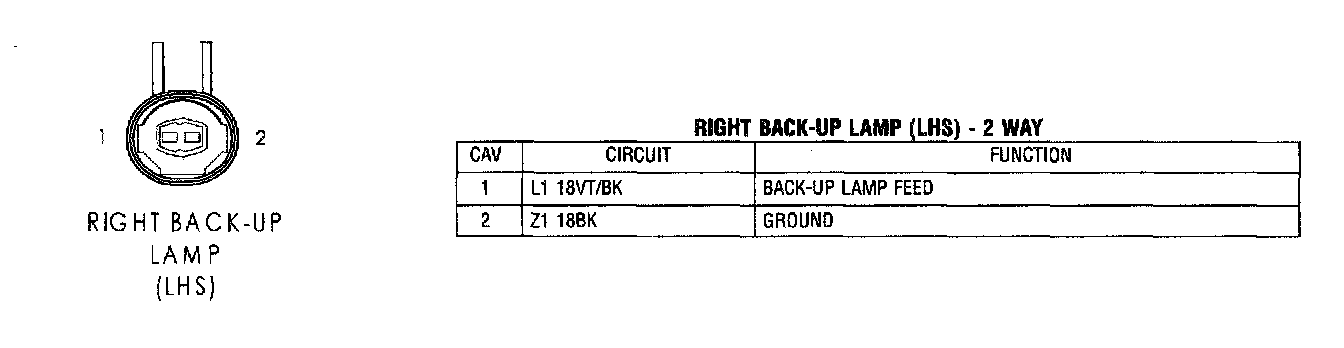

RIGHT BACK-UP LAMP (LHS)
