Home >> Chrysler >> 2001 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> System Diagram

System Diagram

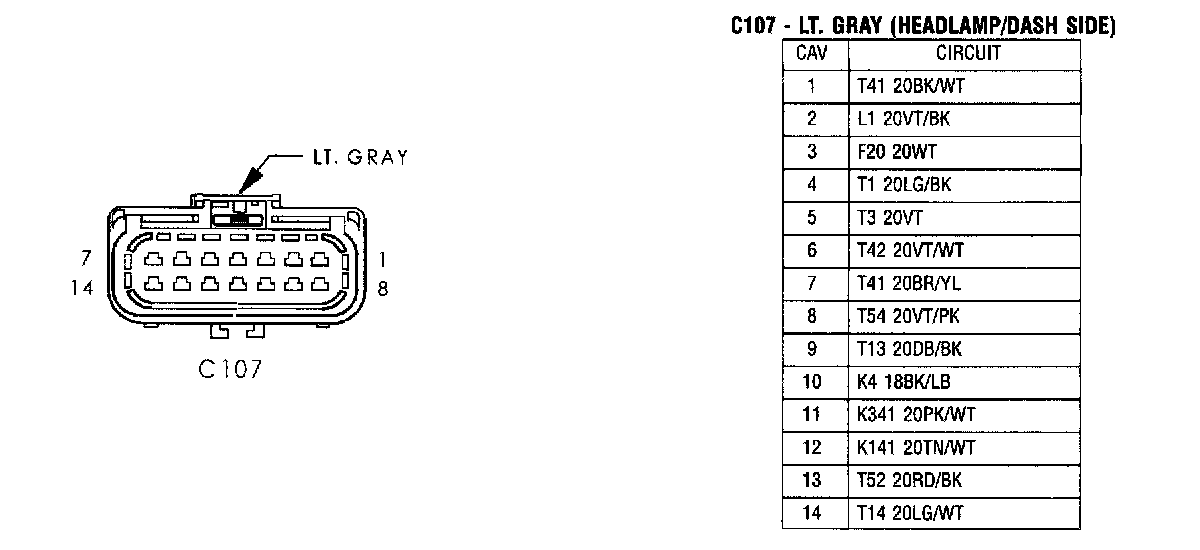

C107 (HEADLAMP/DASH SIDE)

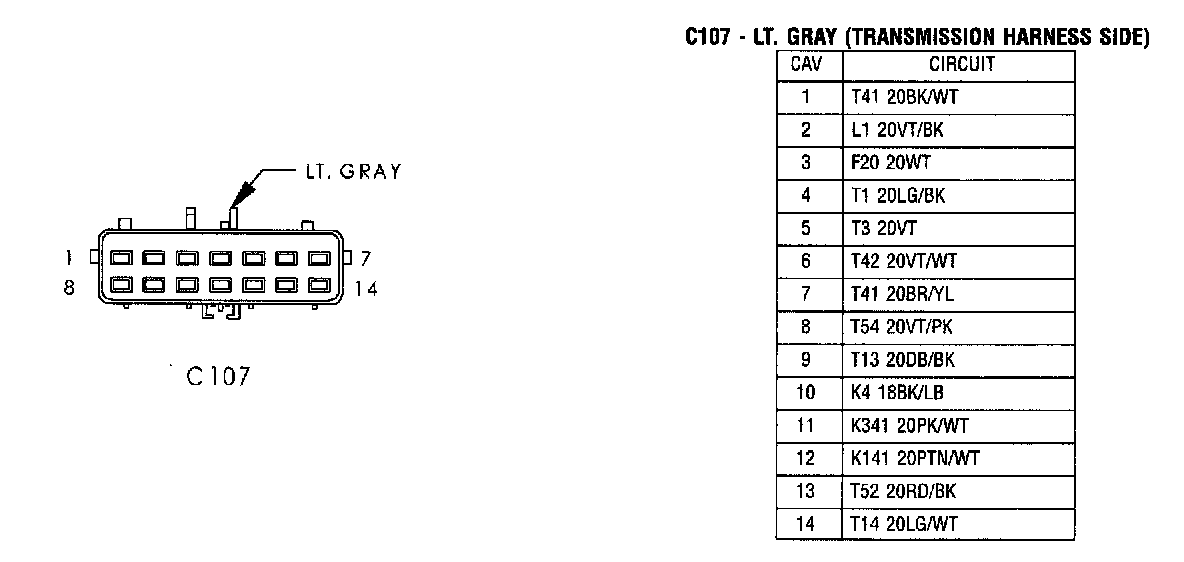

C107 (TRANSMISSION HARNESS SIDE)

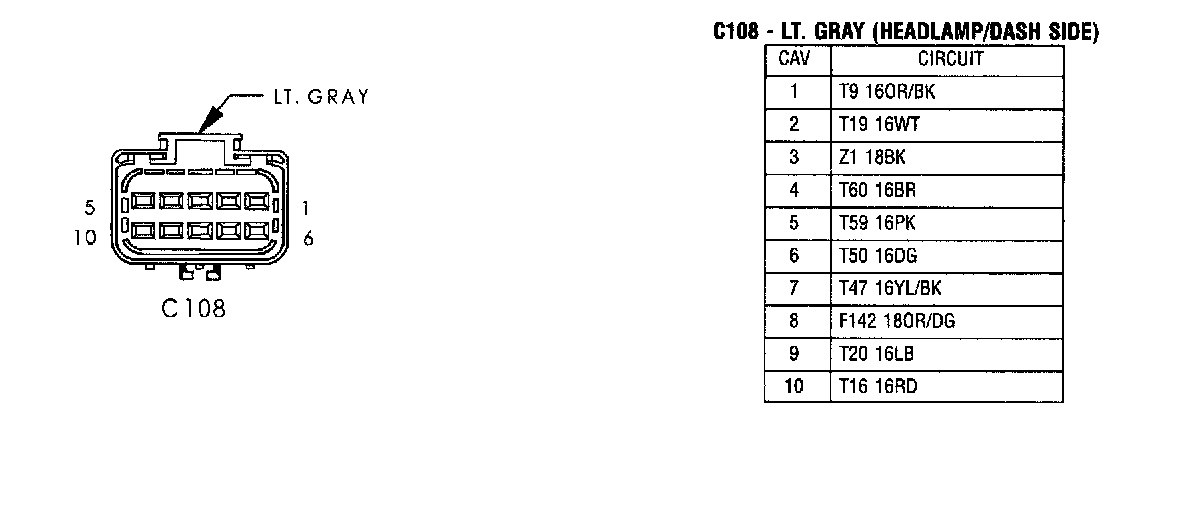

C108 (HEADLAMP/DASH SIDE)

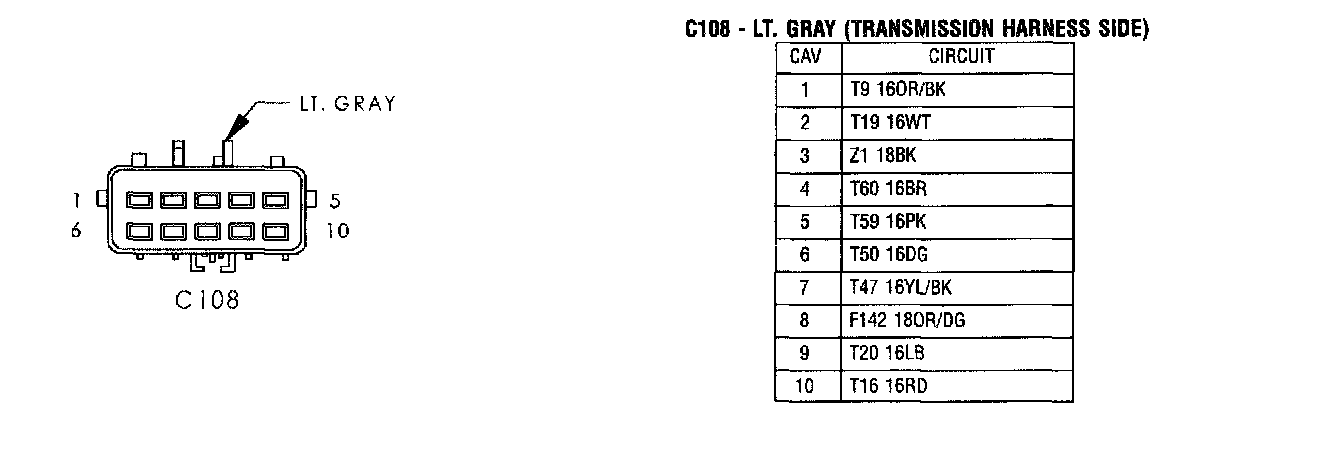

C108 (TRANSMISSION HARNESS SIDE)
