Output Speed Sensor Resistance Check

1. Disconnect the output speed sensor connector.

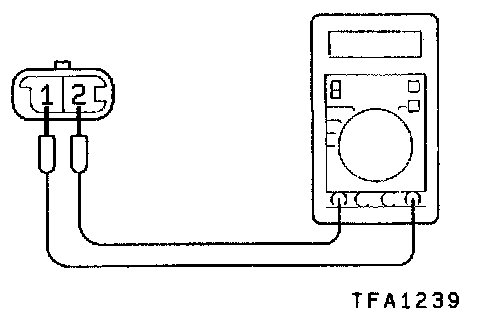

2. Measure the resistance between the input speed sensor side connector terminals 1 and 2.

Standard value: 0.3 - 1.2 K Ohms

3. If the resistance is outside the standard value, replace the output speed sensor.
