Function Element Table

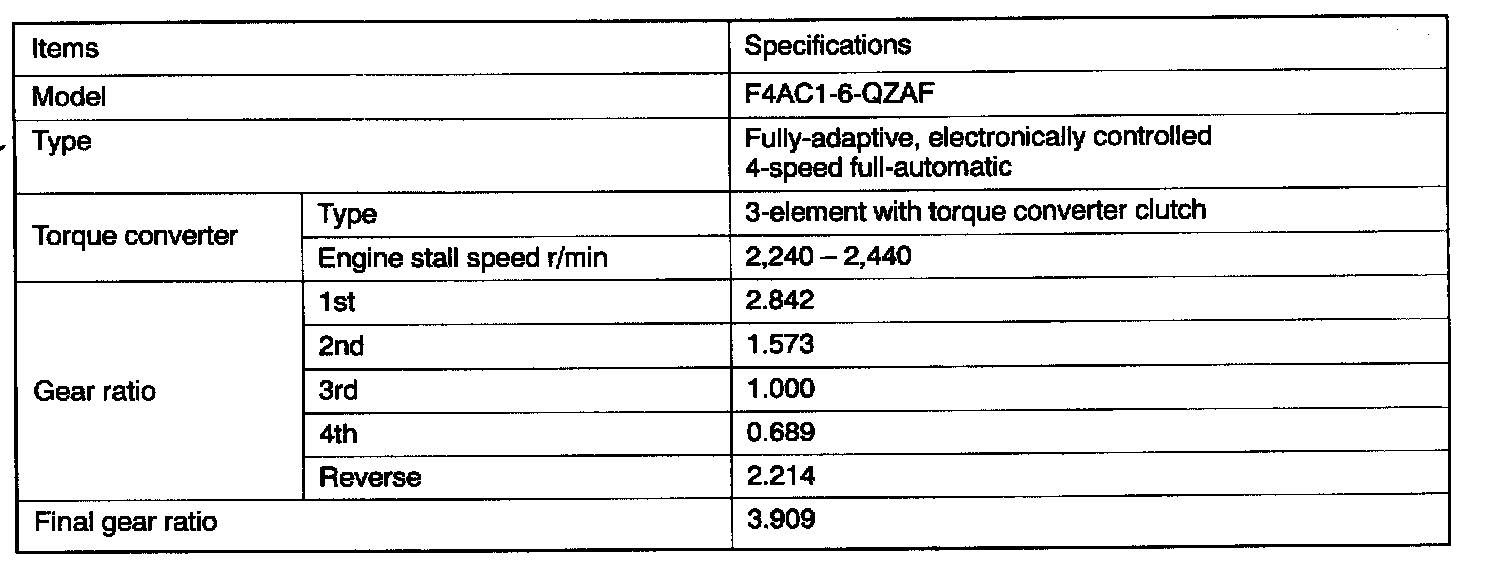

Transaxle General Information:

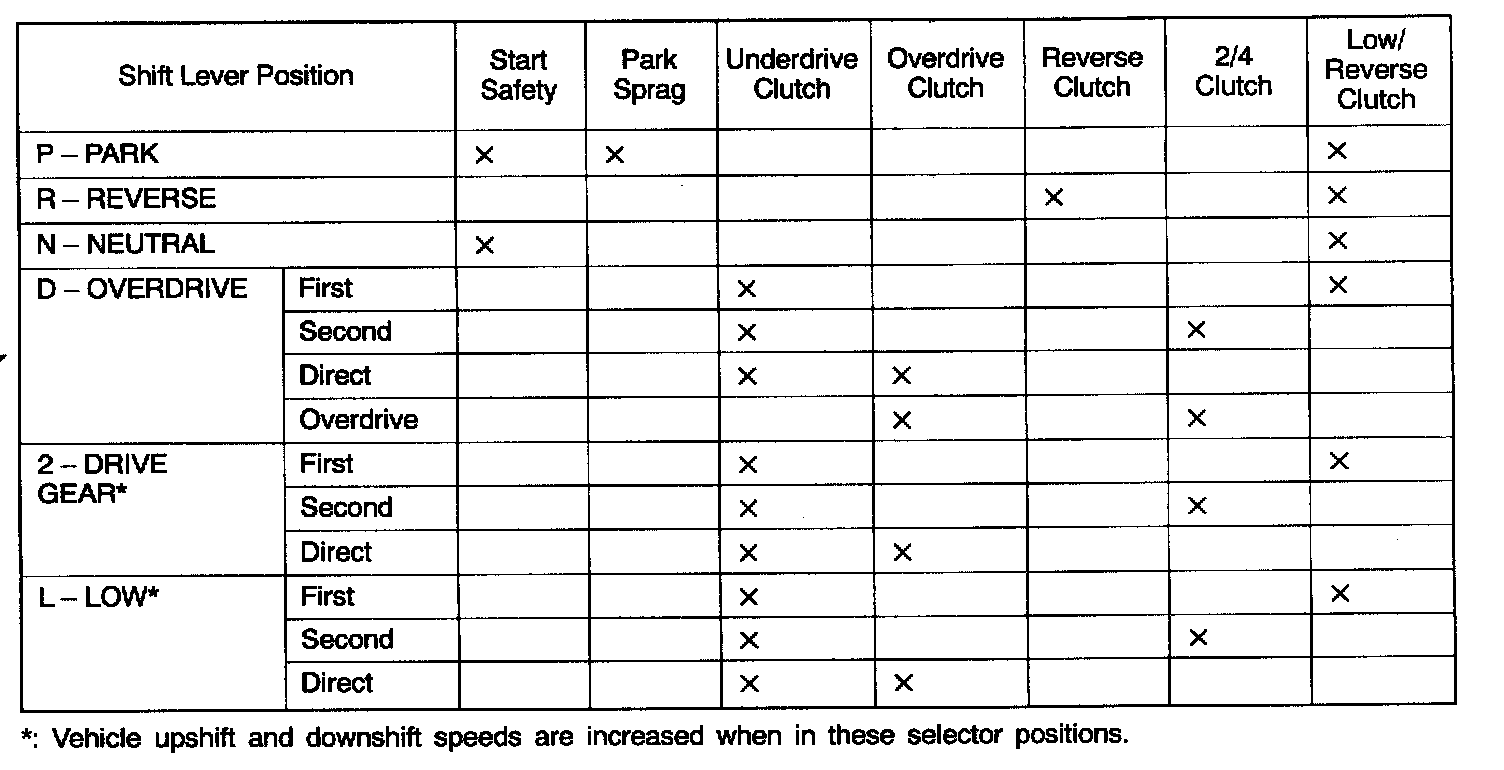

Function Element Table:






FUNCTION ELEMENT TABLE
