Home >> Chrysler >> 2000 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> Vehicles Without Theft-Alarm System

Vehicles Without Theft-Alarm System

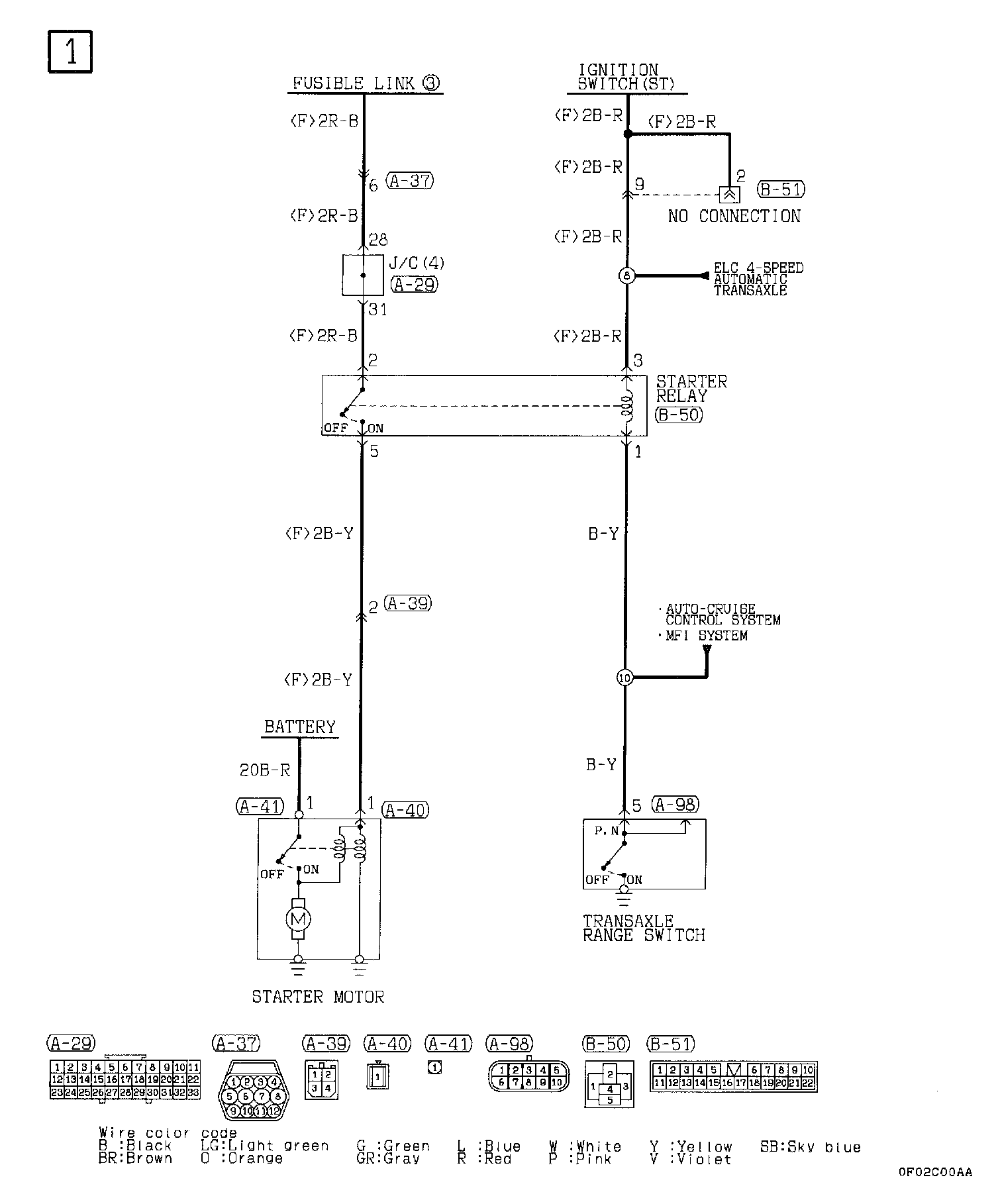

Starting System <Vehicles Without Theft-alarm System>:
