Inspection

Battery Inspection:

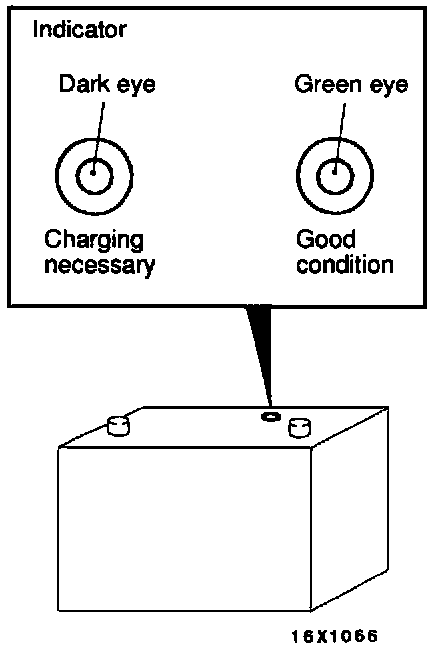

Battery Visual Check (1)
The battery contains a visual test indicator which gives a green signal when an adequate charge level exists, and a dark signal when charging is required.

Battery Visual Check (2)
Make sure ignition switch is in OFF position and all battery feed accessories are OFF
1. Disconnect ground cable from battery before disconnecting (+) cable.
2. Remove the battery from the vehicle.

CAUTION: Care should be taken in the event battery case is cracked or leaking to protect hands from the electrolyte. A suitable pair of rubber gloves (not the household type) should be worn when removing battery by hand.

3. Inspect battery carrier for damage caused by loss of acid from battery. If acid damage is present, it is necessary to clean area with a solution of clean warm water and baking soda. Scrub area with a stiff bristle brush. Wipe clean with a cloth moistened with ammonia or baking soda in water.
4. Clean the battery, especially the top with same solutions as described in step 3.
5. Inspect battery case and cover for cracks. If cracks are present, battery must be replaced.
6. Clean the battery post with a suitable battery post cleaning tool.
7. Clean the inside surfaces of the terminal clamps with a suitable battery terminal cleaning tool. Replace damaged or frayed cables and broken terminal clamps.
8. Install the battery in the vehicle.
9. Connect (+) and (-) cables to battery in the order of mention.
10. Tighten the clamp nut securely.
