Oxygen Sensor: Testing and Inspection

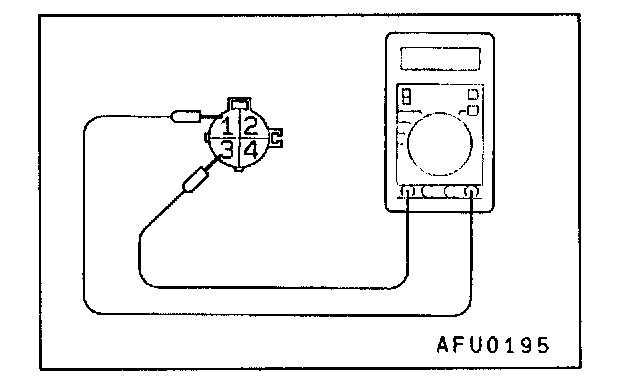

HEATED OXYGEN SENSOR CHECK1. Disconnect the heated oxygen sensor connector.
2. Check that there is continuity between terminal 1 and terminal 3 on the heated oxygen sensor connector.
3. If there is no continuity, replace the heated oxygen sensor.
4. Warm up the engine until engine coolant is 80 °C (176 °F) or higher.

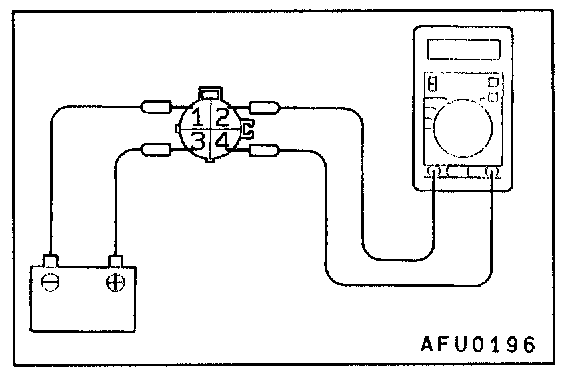

5. Use the jumper wires to connect terminal 3 of the heated oxygen sensor connector to the battery (+) terminal and terminal 1 to the battery (-) terminal.
CAUTION: Be very careful when connecting the jumper wires, or the heated oxygen sensor can be damaged.
6. Connect a digital voltage meter between terminal 2 and terminal 4.
7. While repeatedly racing the engine, measure the heated oxygen sensor output voltage.

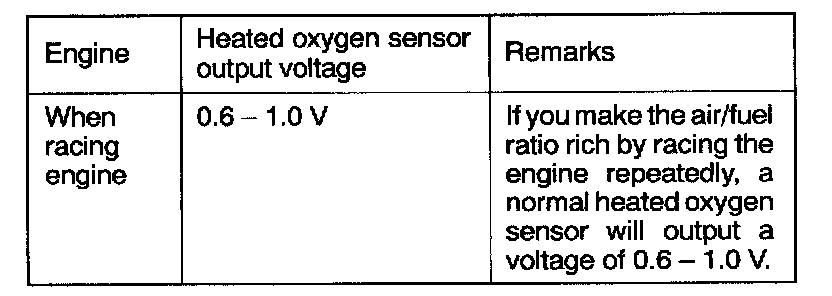

Standard value:
8. If the sensor is defective, replace the heated oxygen sensor.
NOTE: For removal and installation of the heated oxygen sensor, refer to Exhaust Pipe, Main Muffler.

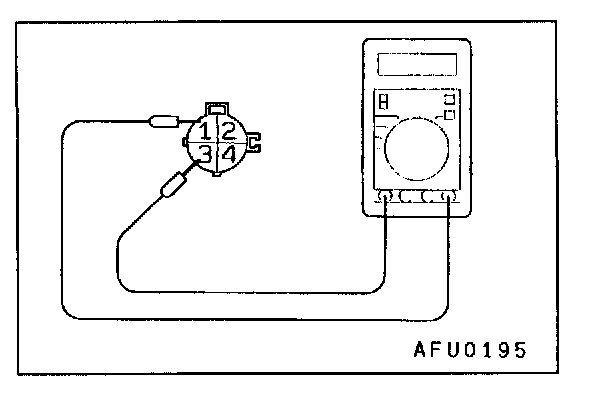

1. Disconnect the heated oxygen sensor connector.
2. Check that there is continuity between terminal 1 and terminal 3 on the heated oxygen sensor connector.
3. If there is no continuity, replace the heated oxygen sensor.
NOTE:
1. If the scan tool does not display the standard value although no malfunction is found by the above-mentioned continuity test and harness check, replace the heated oxygen sensor.
2. For removal and installation of the heated oxygen sensor, refer to Exhaust Pipe, Main Muffler.
