Turn Signal Switch: Service and Repair

Column Switch Assembly





CAUTION: Before removal of air bag module and clock spring, refer to SRS Service Precautions, Air Bag Module and Clock Spring.

NOTE: The Column Switch Assembly contains built-in wiper and washer switches and wiper relay.

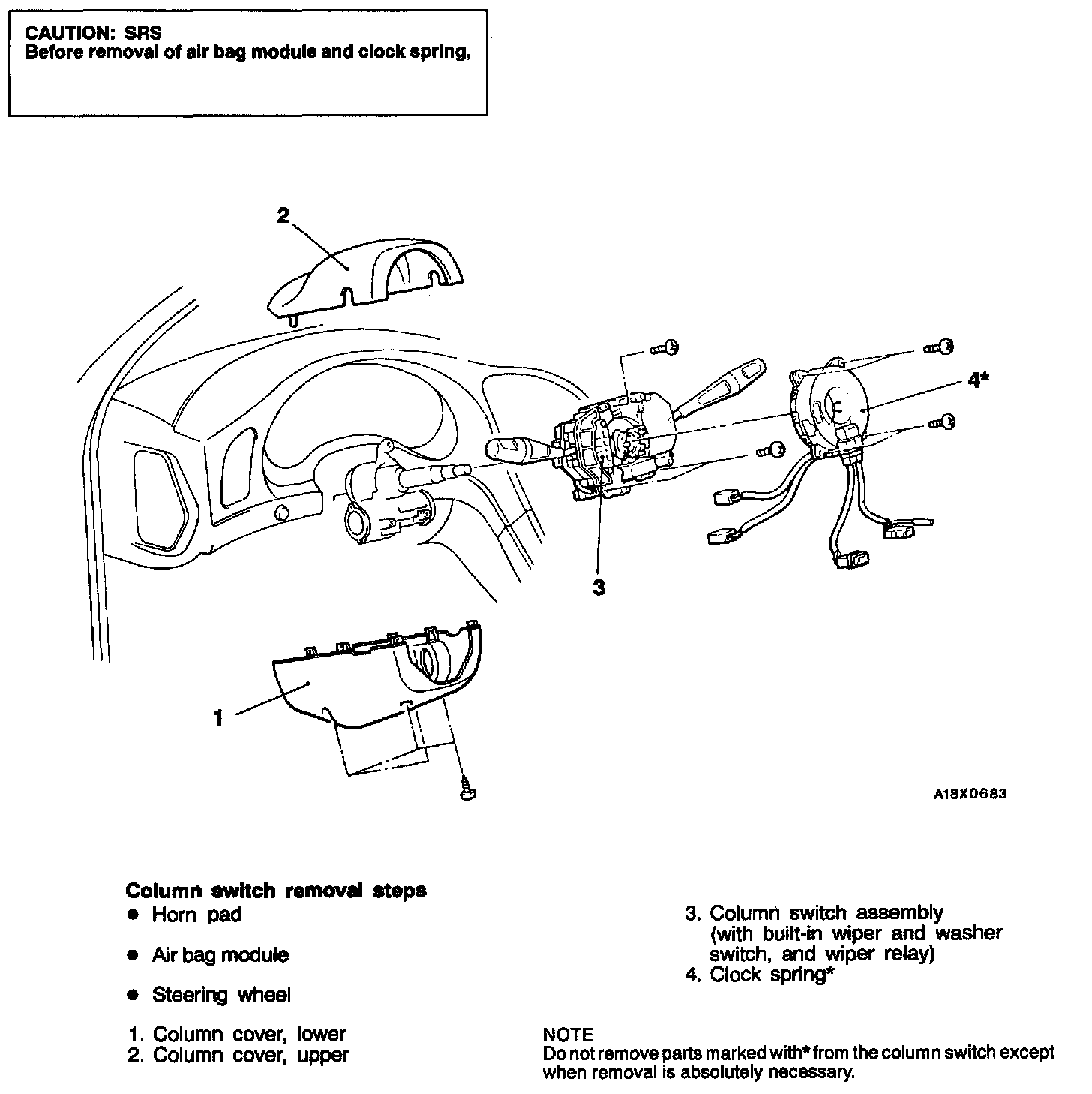

REMOVAL AND INSTALLATION
To remove and install, follow the steps listed in the image.
