Dimmer Switch: Service and Repair

Rheostat





REMOVAL

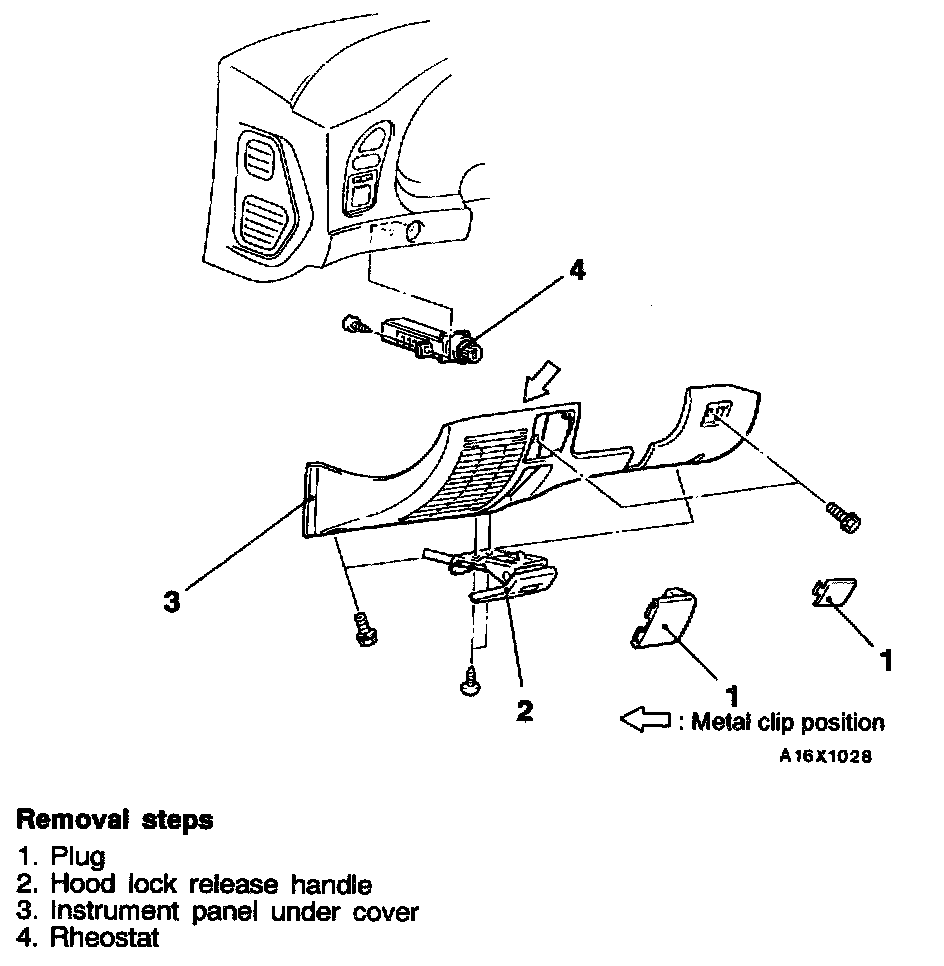

To remove follow the steps listed in the image.

INSTALLATION
To install reverse the steps listed in the image.
