Refrigerant Temperature Switch Simple Check
Refrigerant Temperature Switch Simple Check

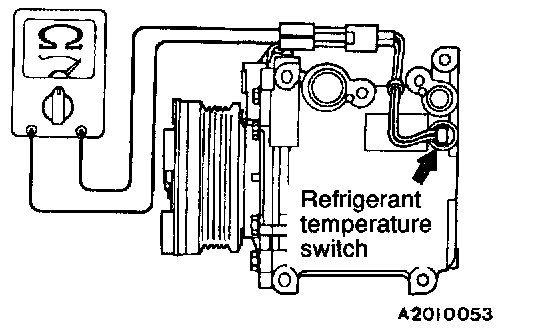

When the A/C is off, check that there is continuity between the refrigerant temperature switch terminals. If no, replace the refrigerant temperature switch.
