Fuel Injector: Testing and Inspection

INJECTOR CHECK

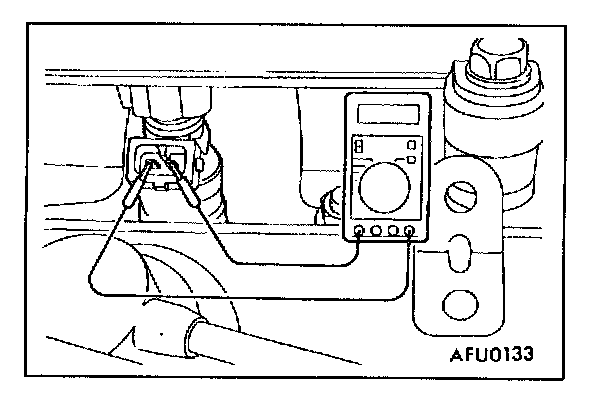

Measurement of Resistance between Terminals
1. Remove the injector connector.
2. Measure the resistance between terminals.

Standard value: 13 - 16 Ohms [at 20 °C (68 °F)]

If not within specifications, replace the injector.

3. Install the injector connector
