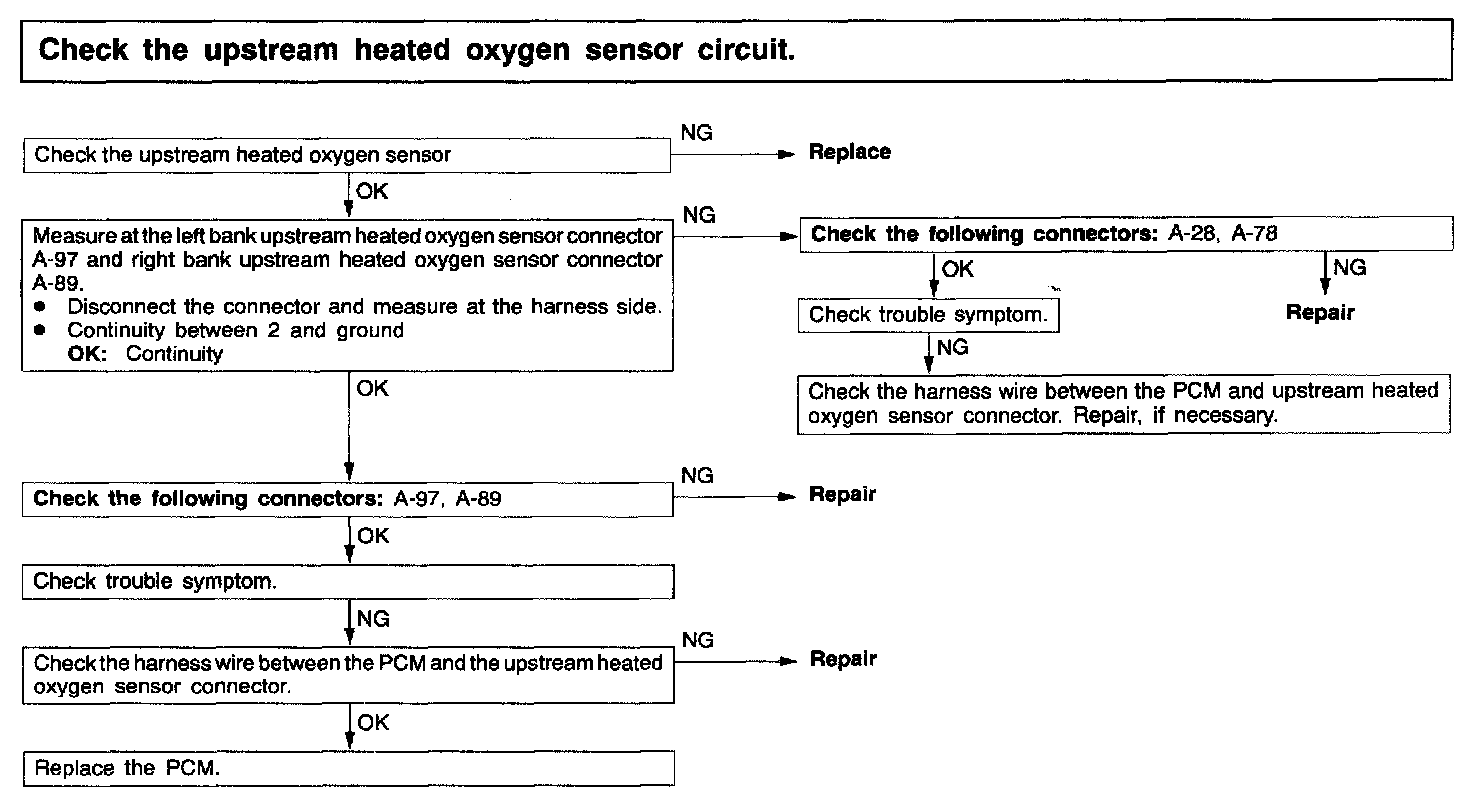

42. Check the Upstream Heated Oxygen Sensor Circuit
42. Check the Upstream Heated Oxygen Sensor Circuit
Inspection Procedure 42:
