33. Scan Tool Inspection: Idle Speed Is Unstable

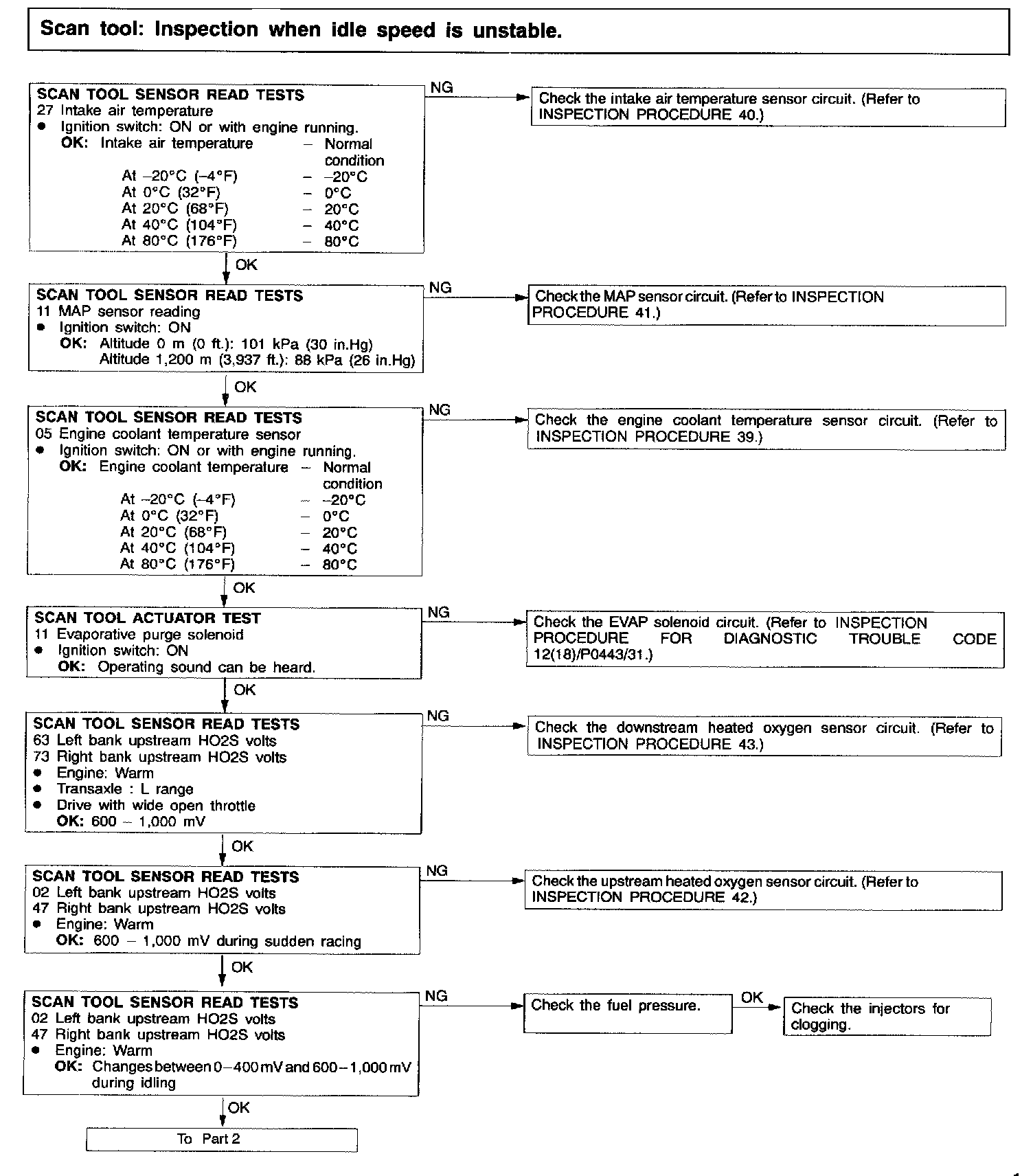

Inspection Procedure 33 (Part 1):

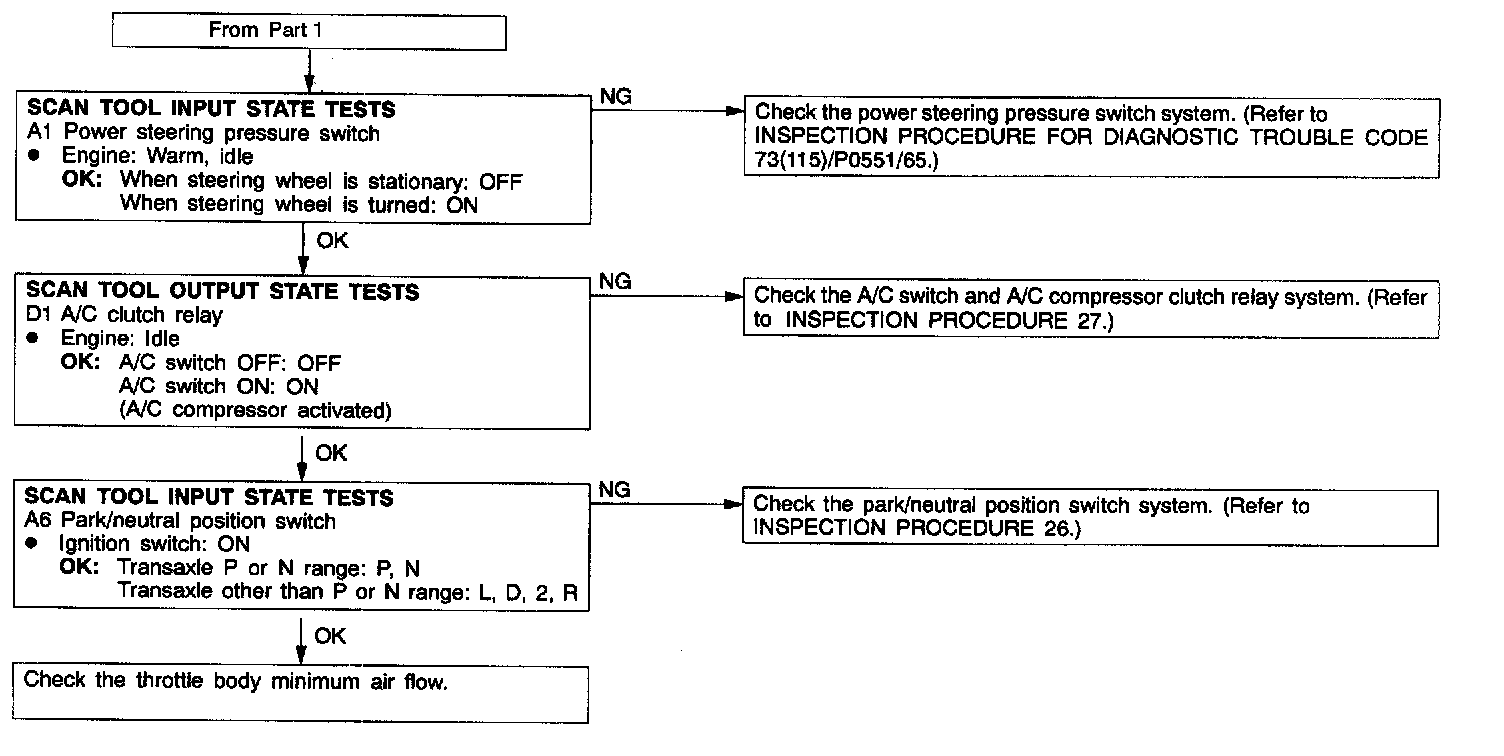

Inspection Procedure 33 (Part 2):
