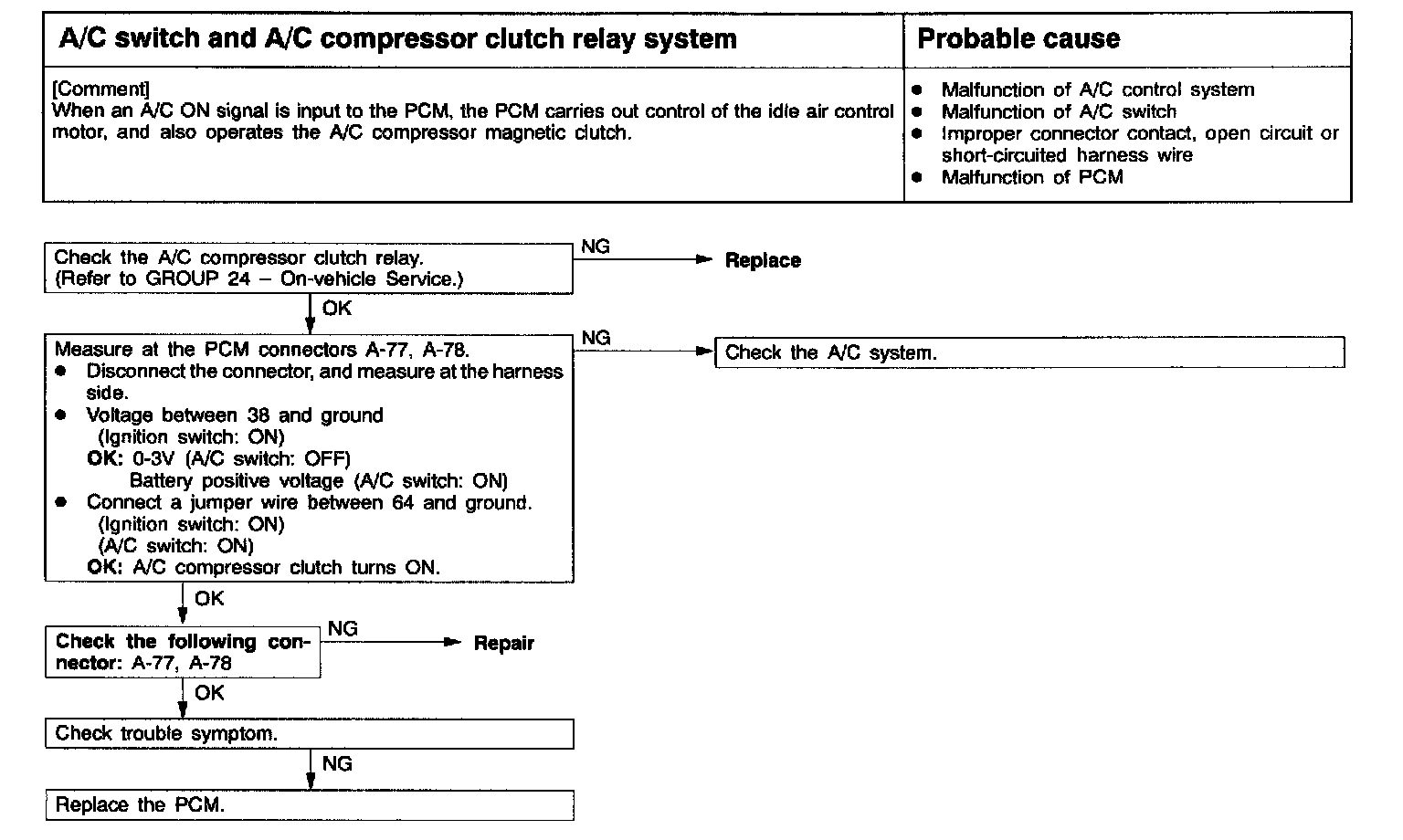

27. A/C Switch and A/C Compressor Clutch Relay System
27. A/C Switch and A/C Compressor Clutch Relay System
Inspection Procedure 27:
