Round Waterproof Connector

Loosely engaged terminals can repaired by removing the female terminal from the connector housing and raising its lance to establish better engagement. Removal of the connector terminal used for MFI and ELC-4 A/T control circuit shall be done in the following manner.




1. Remove the waterproof cap by using a screwdriver.

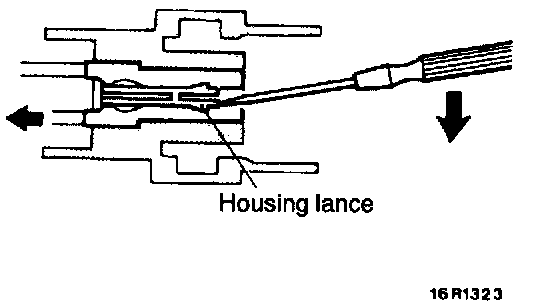

2. Insert the tip of the screwdriver [1.4 mm (0.06 in.) or 2.0 mm (0.08 in.) width] into the connector as shown in the figure, raise the housing lance slightly with the tip, and pull out the terminal.




3. Insert a screwdriver through the hole provided on the terminal and raise the contact point.

Lightly squeeze the outer edge so the flats are parallel with the bottom.
