Home >> Chrysler >> 2000 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Maintenance >> Hoses >> Power Steering Line/Hose >> Service and Repair

Power Steering Line/Hose: Service and Repair






INSTALLATION SERVICE POINT
PRESSURE HOSE INSTALLATION

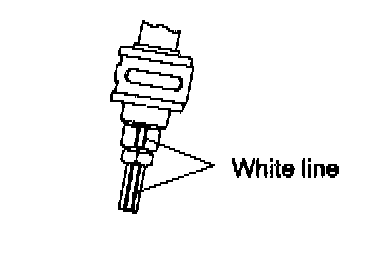

When the pressure hose is installed, align the white line on the pressure hose with the white line on the pressure tube so that together they form a straight line.
