Home >> Chrysler >> 2000 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Locations >> Component Locations >> Fusible Link and Fuse Locations >> Centralized Junction >> Fusible Link (Relay Box In Engine Compartment)

Fusible Link (Relay Box In Engine Compartment)

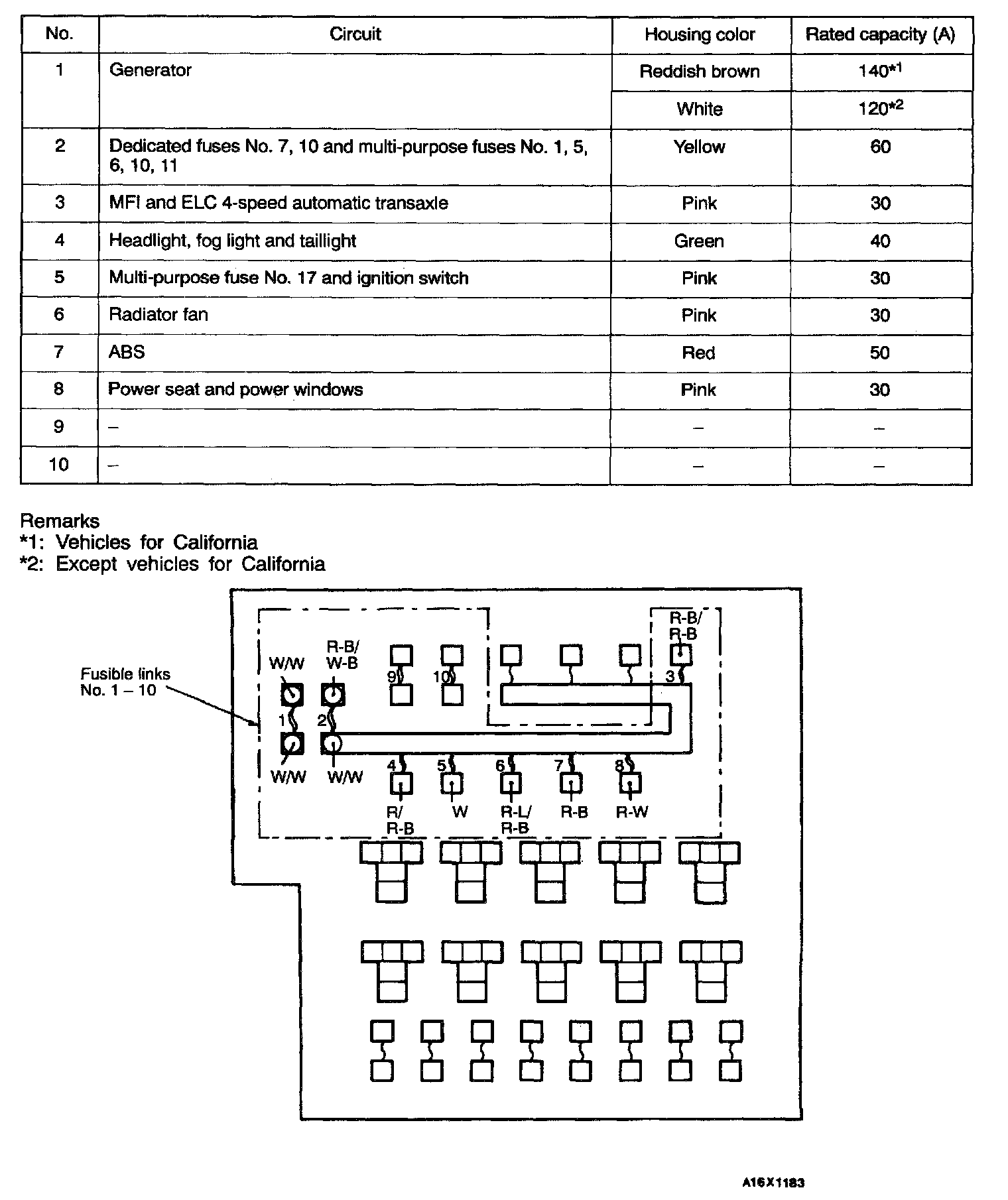

Fusible Link (Relay Box In Engine Compartment):
