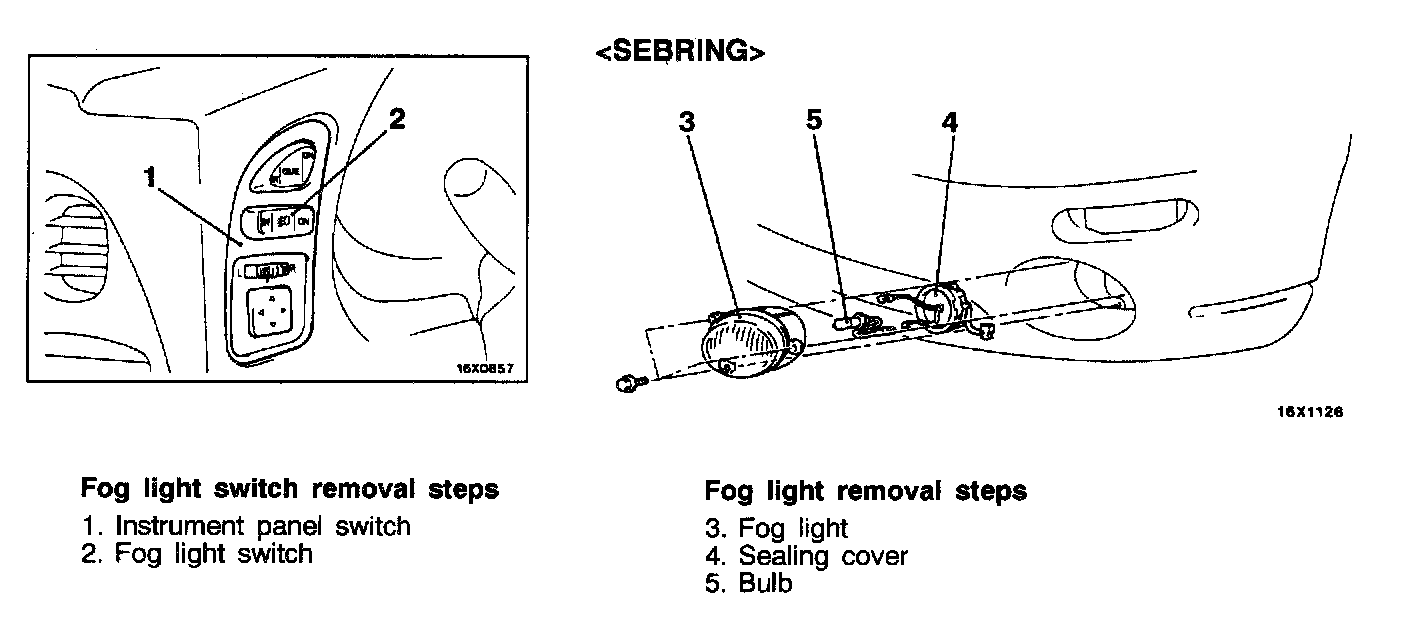

Fog/Driving Lamp: Service and Repair

REMOVAL SERVICE POINT




Bulb Removal

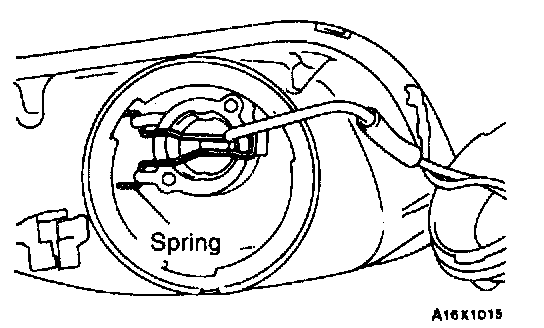

Remove the bulb attaching spring and pull out the bulb.

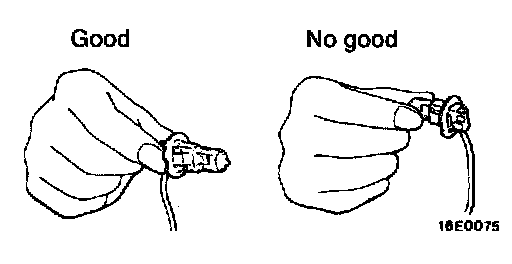

CAUTION: Do not touch the surface of the bulb with hands or dirty gloves If the surface does become dirty, clean It with alcohol or thinner, and let it dry thoroughly before installing.

INSTALLATION SERVICE POINT

Sealing Cover Installation
Install the sealing cover securely.

CAUTION: If the sealing cover is not securely Installed, the lens will be out of focus, or water will get inside the light unit.
